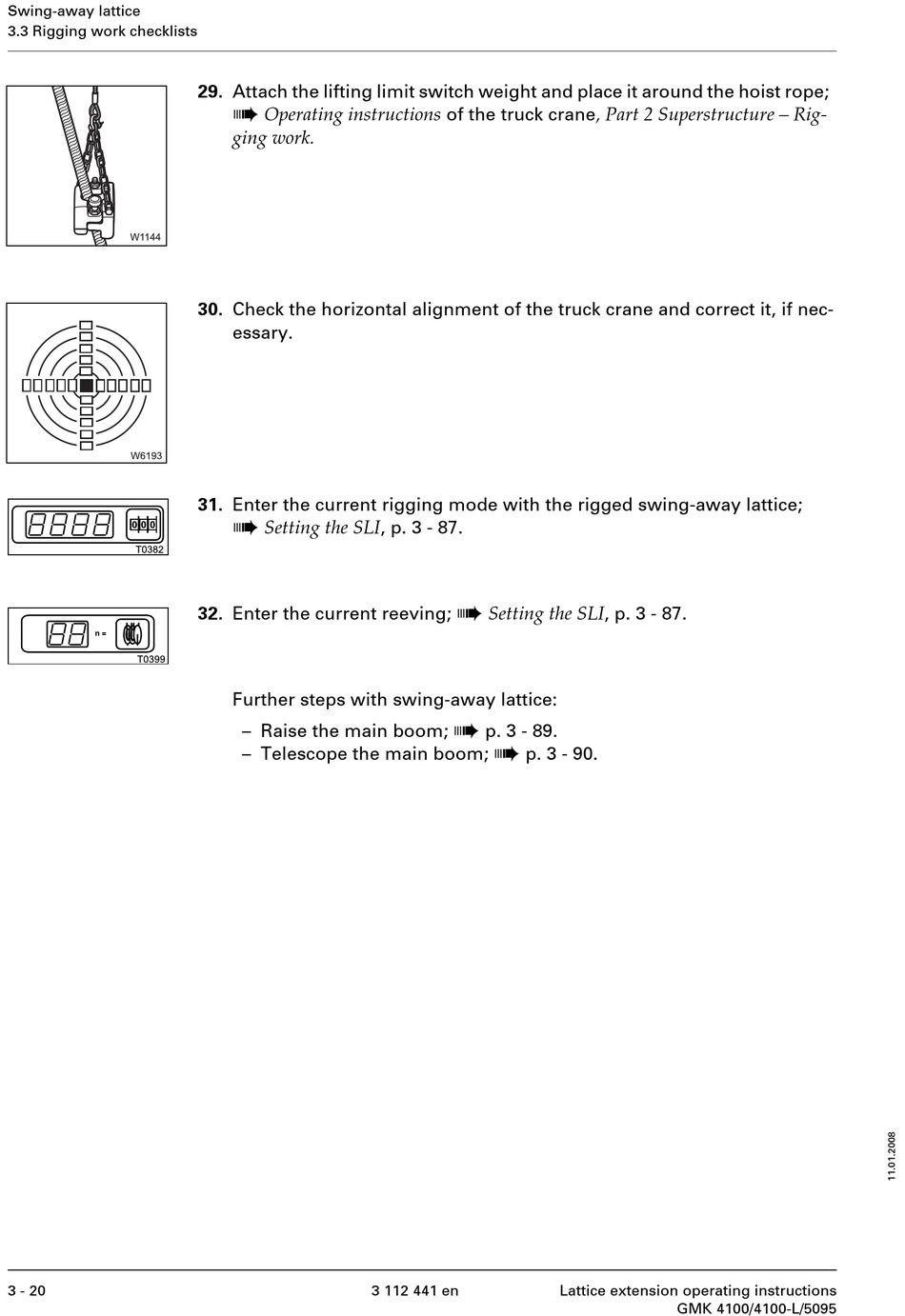

Swing-away lattice
3.3 Rigging work checklists
3 - 20
29. Attach the lifting limit switch weight and place it around the hoist rope;
à
Operating instructions of the truck crane , Part 2 Superstructure – Rig-
ging work.
30. Check the horizontal alignment of the truck crane and correct it, if nec-
essary.
31. Enter the current rigging mode with the rigged swing-away lattice;
à
Setting the SLI , p. 3 - 87.
32. Enter the current reeving;
Further steps with swing-away lattice:
– Raise the main boom;
– Telescope the main boom;
à
Setting the SLI , p. 3 - 87.
à
p. 3 - 89.
à
p. 3 - 90.
