Swing-away
lattice with ISS
4

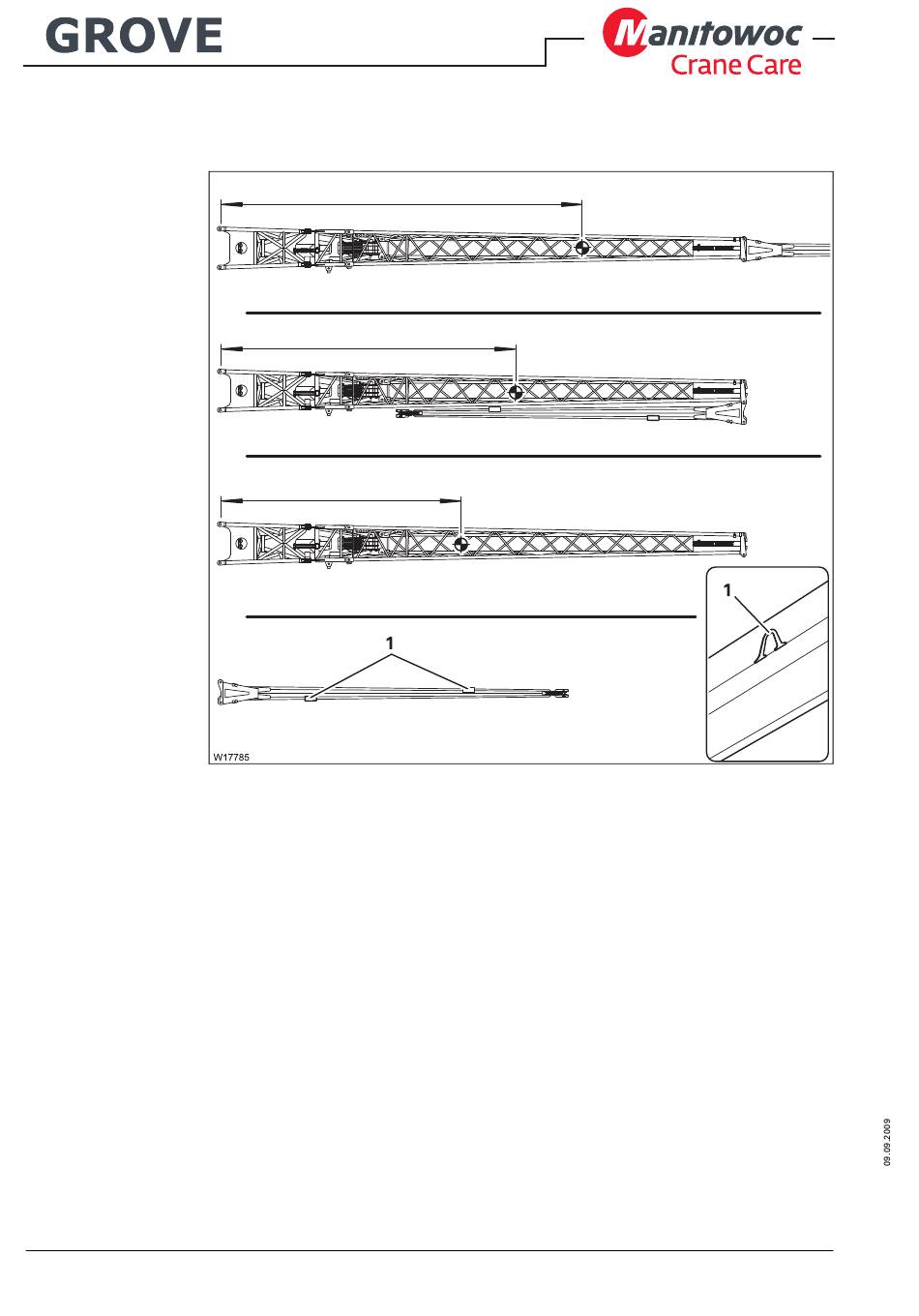

The distances are always measured from the centre of the fork elements.
5820 mm (229.1 in)
4710 mm (185.4 in)
3860 mm (152.0 in)
I
n
t
e
g
r
a
t
e
d
The swing-away lattice with ISS is only supplied as a derricking swing-away
lattice.
•
Use the connection eyes (1) on part 2.
3 112 620 en Additional pages
