Heavy load lattice extension

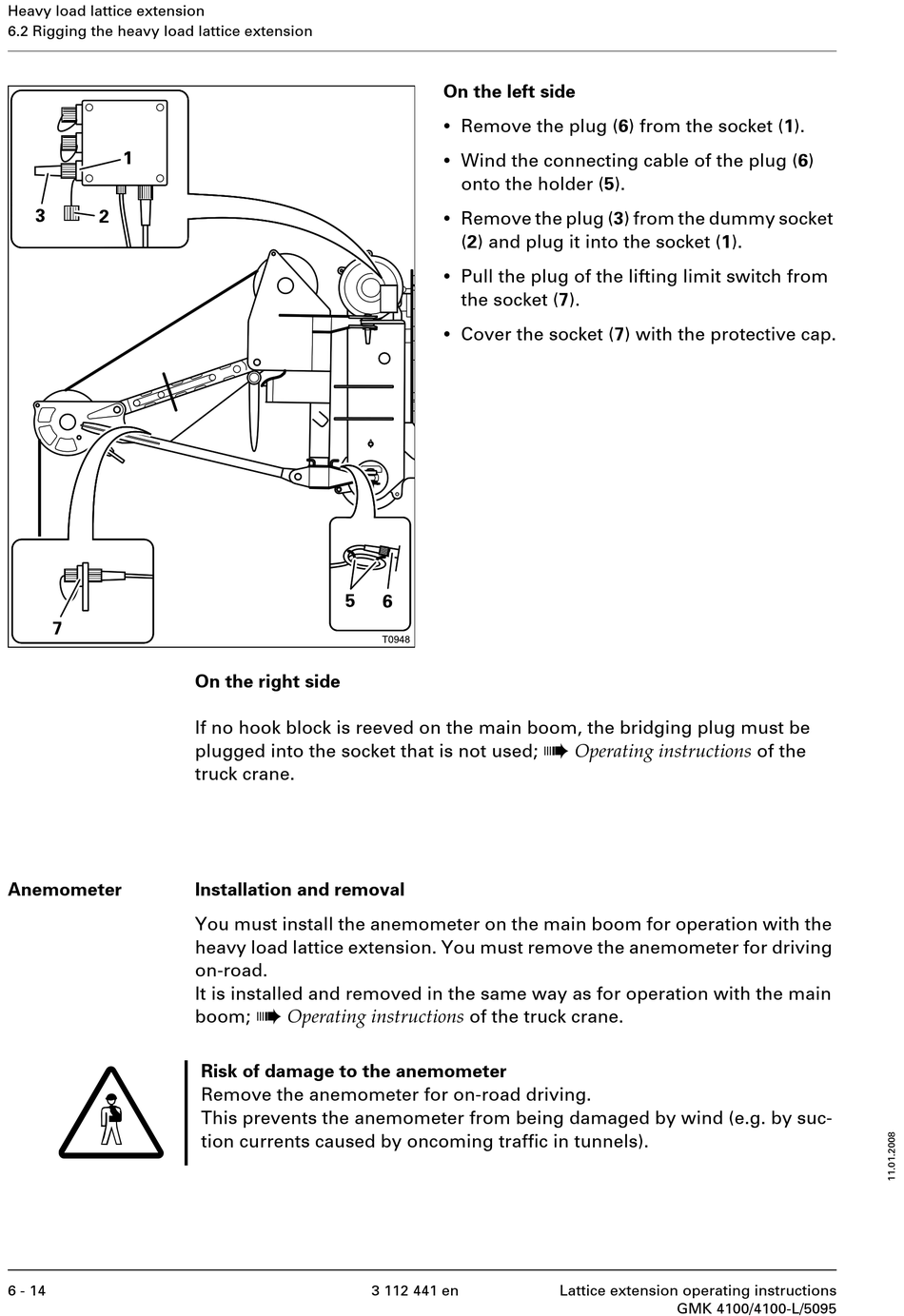

6.2 Rigging the heavy load lattice extension
Anemometer
G
6 - 14
On the right side
If no hook block is reeved on the main boom, the bridging plug must be
plugged into the socket that is not used;
truck crane.
Installation and removal
You must install the anemometer on the main boom for operation with the
heavy load lattice extension. You must remove the anemometer for driving
on-road.
It is installed and removed in the same way as for operation with the main
à
Operating instructions of the truck crane.
boom;
Risk of damage to the anemometer
Remove the anemometer for on-road driving.
This prevents the anemometer from being damaged by wind (e.g. by suc-
tion currents caused by oncoming traffic in tunnels).
On the left side
•
Remove the plug (6) from the socket (1).
•
Wind the connecting cable of the plug (6)
onto the holder (5).
•
Remove the plug (3) from the dummy socket
(2) and plug it into the socket (1).
•
Pull the plug of the lifting limit switch from
the socket (7).
•
Cover the socket (7) with the protective cap.
3 112 441 en
à
Operating instructions of the
Lattice extension operating instructions
GMK 4100/4100-L/5095
