Anemometer
G
Lattice extension operating instructions
GMK 4100/4100-L/5095
For removal
Installation and removal
You must install the anemometer for operation with the auxiliary single-
sheave boom top.
You must remove the anemometer for on-road driving.
It is installed and removed in the same way as for operation with the main
à
boom; Operating instructions of the truck crane.
Risk of damage to the anemometer
Remove the anemometer for on-road driving.
This will prevent the anemometer from being damaged by wind (e.g. by
suction currents caused by oncoming traffic in tunnels).

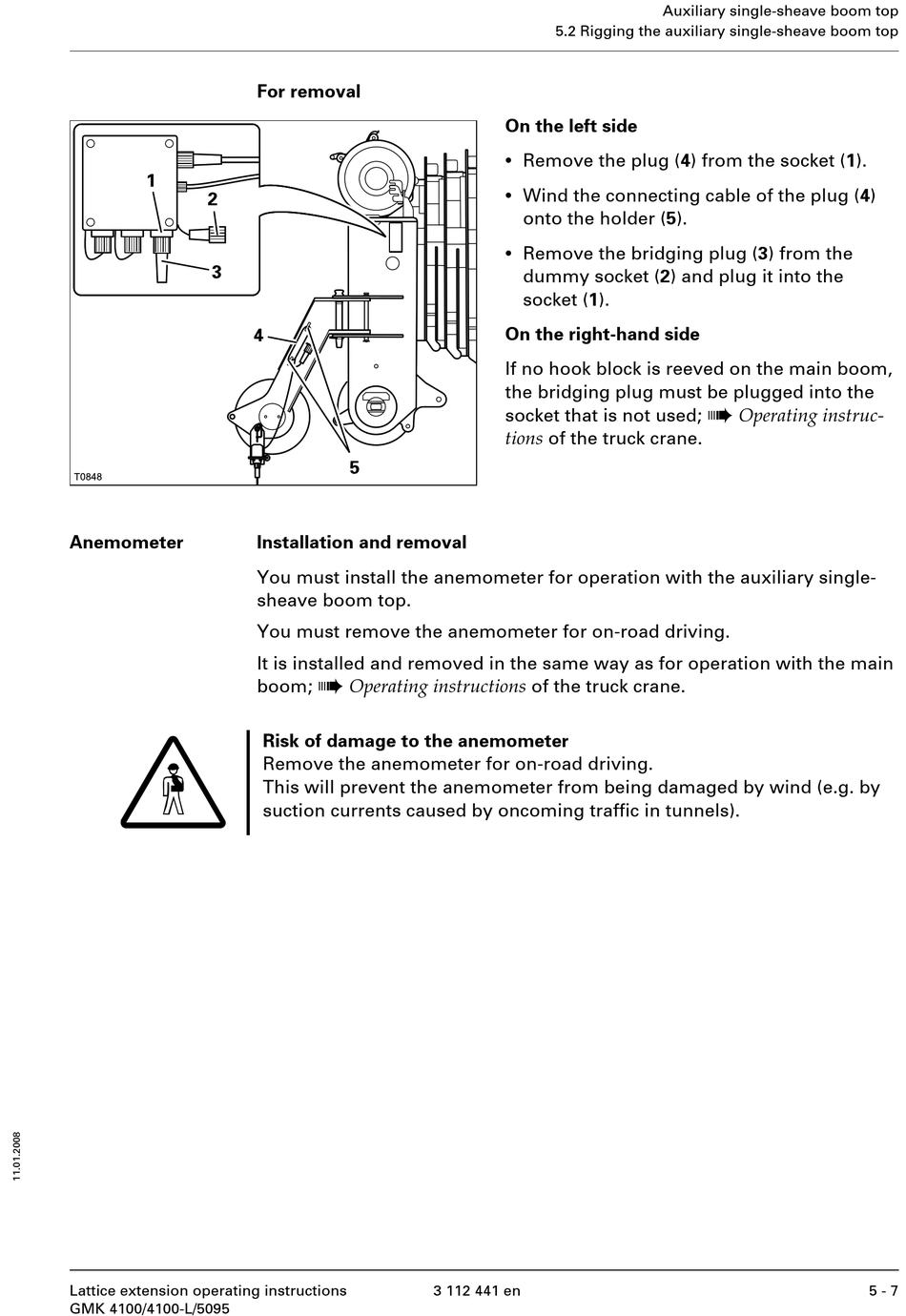

5.2 Rigging the auxiliary single-sheave boom top
On the left side
•
Remove the plug (4) from the socket (1).
•
Wind the connecting cable of the plug (4)
onto the holder (5).
•
Remove the bridging plug (3) from the
dummy socket (2) and plug it into the
socket (1).
On the right-hand side
If no hook block is reeved on the main boom,
the bridging plug must be plugged into the
socket that is not used;
tions of the truck crane.
