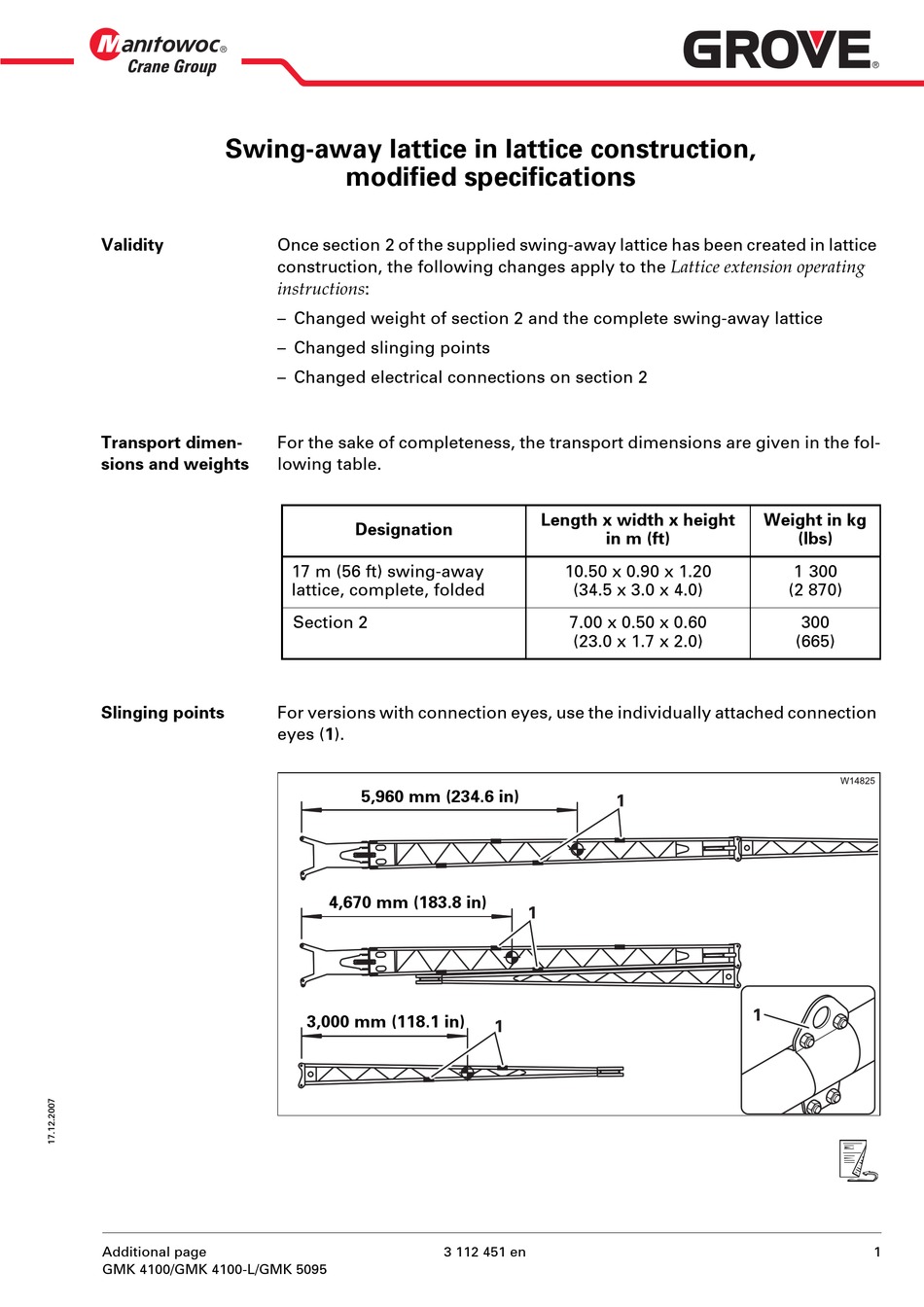

Swing-away lattice in lattice construction,
Validity
Transport dimen-
sions and weights
Slinging points
Additional page
GMK 4100/GMK 4100-L/GMK 5095
modified specifications
Once section 2 of the supplied swing-away lattice has been created in lattice
construction, the following changes apply to the Lattice extension operating
instructions :
– Changed weight of section 2 and the complete swing-away lattice
– Changed slinging points
– Changed electrical connections on section 2
For the sake of completeness, the transport dimensions are given in the fol-
lowing table.
Designation
17 m (56 ft) swing-away
lattice, complete, folded
Section 2
For versions with connection eyes, use the individually attached connection
eyes (1).
5,960 mm (234.6 in)
4,670 mm (183.8 in)
3,000 mm (118.1 in)
3 112 451 en
Length x width x height
in m (ft)
10.50 x 0.90 x 1.20
(34.5 x 3.0 x 4.0)
7.00 x 0.50 x 0.60
(23.0 x 1.7 x 2.0)
Weight in kg
(lbs)
1 300
(2 870)
300
(665)
