Swing-Away Lattice; Assembly - Manitowoc GROVE GMK 4100 Operating Instructions Manual

2.2
2.2.1
Lattice extension operating instructions
GMK 4100/4100-L/5095

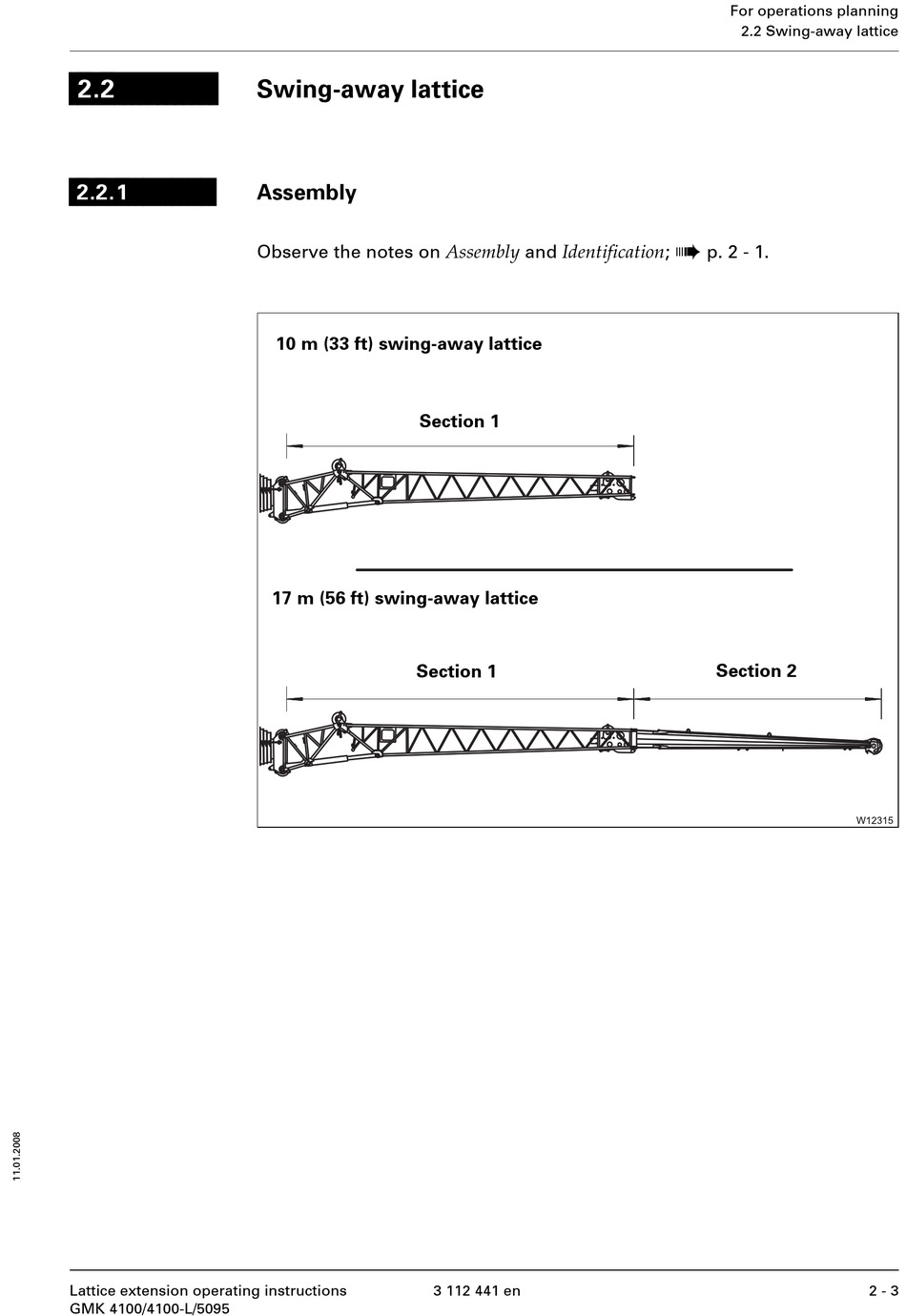

Swing-away lattice

Assembly

Observe the notes on Assembly and Identification ;
10 m (33 ft) swing-away lattice
Section 1
17 m (56 ft) swing-away lattice
Section 1
3 112 441 en
For operations planning
2.2 Swing-away lattice
à
p. 2 - 1.
Section 2
2 - 3
