8.6
Notes on
the tables
H
Lattice extension operating instructions
GMK 4100/4100-L/5095

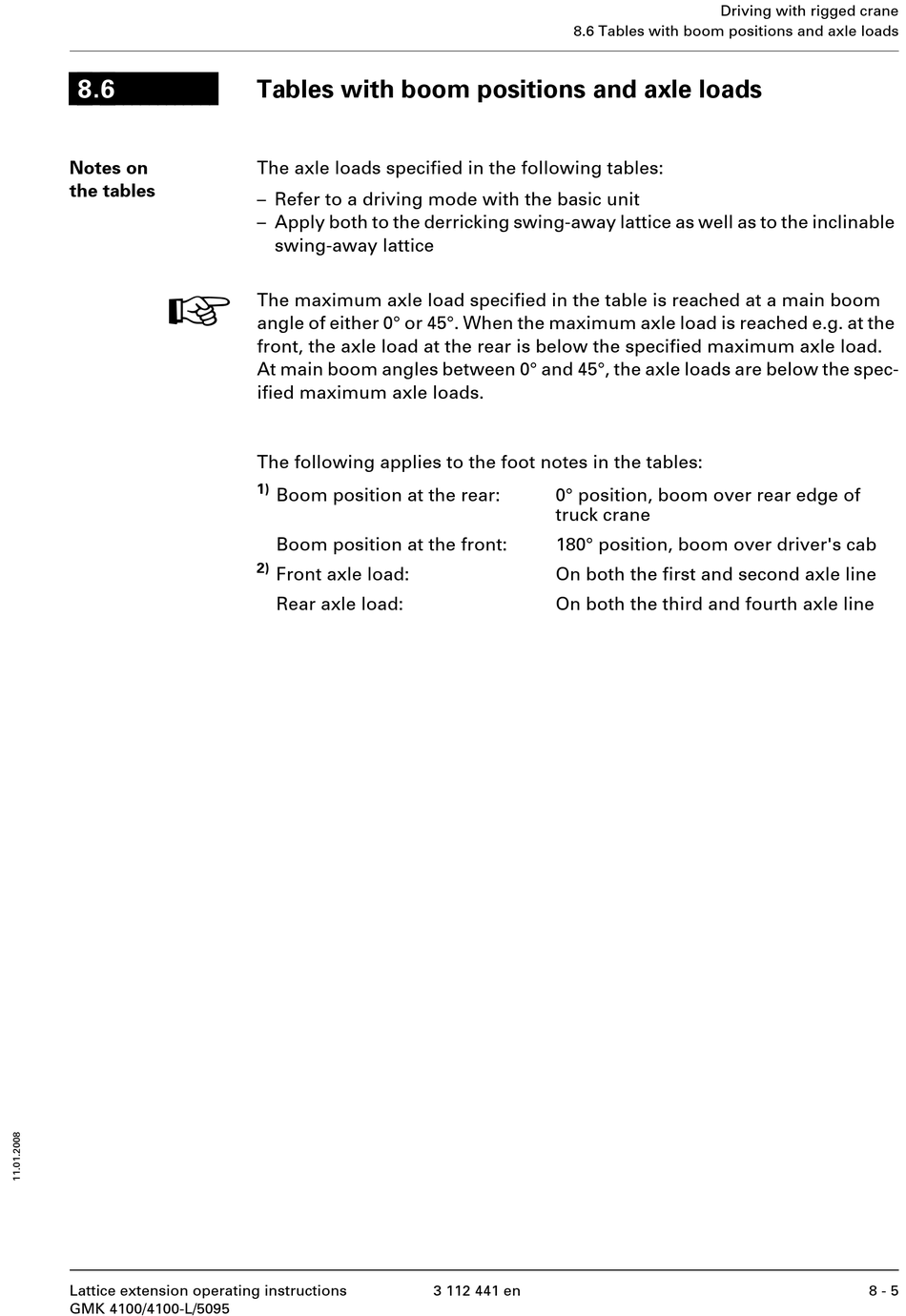

Tables with boom positions and axle loads

The axle loads specified in the following tables:
– Refer to a driving mode with the basic unit
– Apply both to the derricking swing-away lattice as well as to the inclinable
swing-away lattice
The maximum axle load specified in the table is reached at a main boom
angle of either 0° or 45°. When the maximum axle load is reached e.g. at the
front, the axle load at the rear is below the specified maximum axle load.
At main boom angles between 0° and 45°, the axle loads are below the spec-
ified maximum axle loads.
The following applies to the foot notes in the tables:
1)
Boom position at the rear:
Boom position at the front:
2)
Front axle load:
Rear axle load:
8.6 Tables with boom positions and axle loads
0° position, boom over rear edge of
truck crane
180° position, boom over driver's cab
On both the first and second axle line
On both the third and fourth axle line
3 112 441 en
Driving with rigged crane
8 - 5
