Lattice extension operating instructions
GMK 4100/4100-L/5095

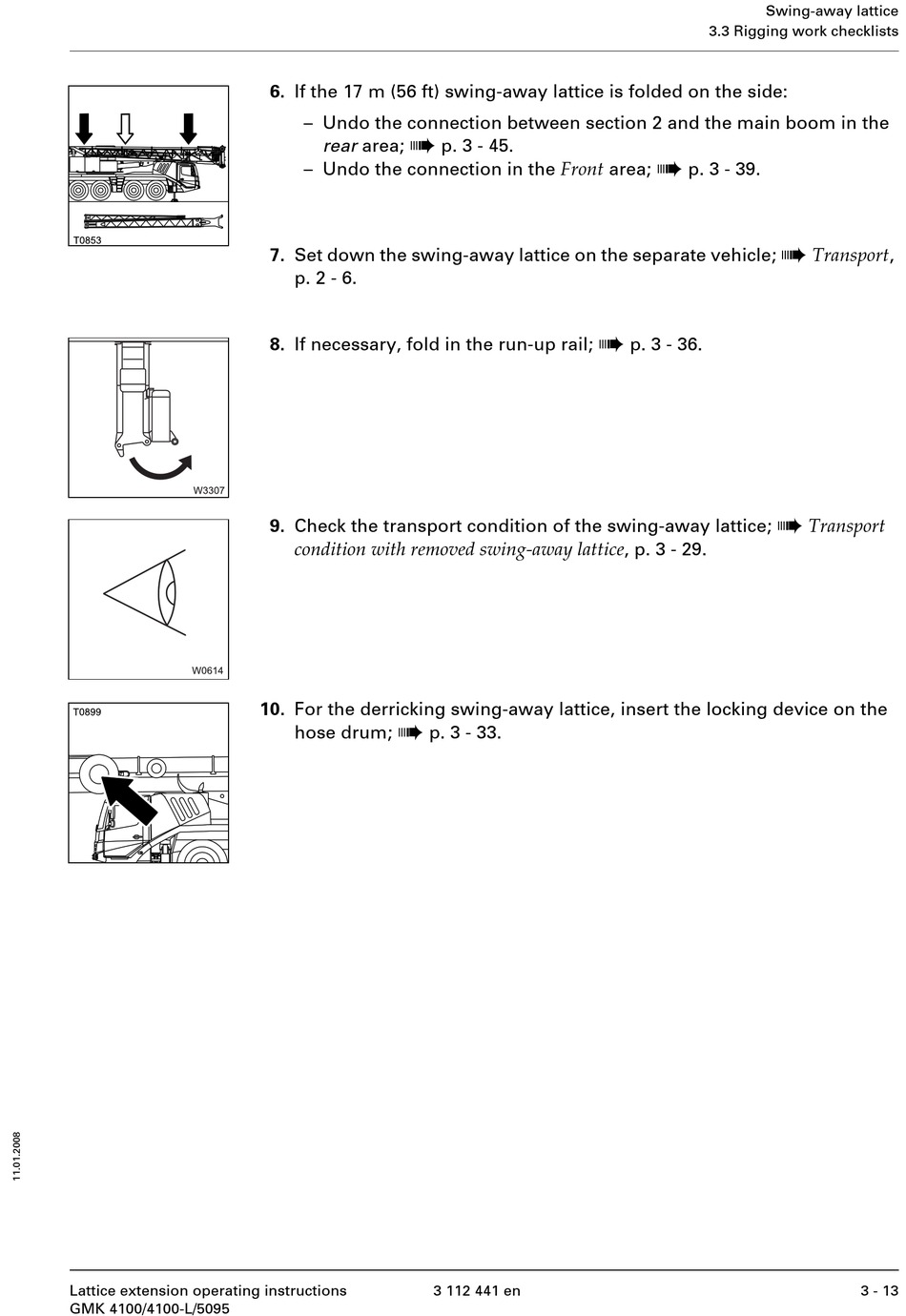

6. If the 17 m (56 ft) swing-away lattice is folded on the side:
– Undo the connection between section 2 and the main boom in the
à
rear area;
– Undo the connection in the Front area;
7. Set down the swing-away lattice on the separate vehicle;
p. 2 - 6.
8. If necessary, fold in the run-up rail;
9. Check the transport condition of the swing-away lattice;
condition with removed swing-away lattice , p. 3 - 29.
10. For the derricking swing-away lattice, insert the locking device on the
à
hose drum; p. 3 - 33.
p. 3 - 45.
à
3 112 441 en
Swing-away lattice
3.3 Rigging work checklists
à
p. 3 - 39.
à
p. 3 - 36.
à
Transport ,
Transport
3 - 13
