Note. Data in the
SRAM buffer will
be downloaded
first. Data in the
flash buffer will
be downloaded
second. The data
will be reordered so
that the oldest data
intervals are near
the top of the file.
SmartSensor V User Guide
78
•
Data download
To download interval data stored on the sensor in the SRAM and
flash memory buffers, go to Data Collection > Download.
Downloading interval data
Click Browse. This opens a directory box.
1
Select an existing file or enter the name of the new file.
2
Click Open.
3
Select a Type of download to perform.
4
Normal – Retrieves all interval data from the beginning of
̀
data collection to the most recent record. The number of
lanes per record is determined by the number of lanes cur-
rently configured on the sensor.
Incremental – Retrieves only the interval data that was
̀
recorded after the indicated date and time. The number of
lanes per record is determined by the number of lanes cur-
rently configured on the sensor.
Error Recovery – Retrieves the entire contents of the flash
̀
memory buffer. The flash memory buffer contains 2976
records and each record has data for eight lanes. The
contents of SRAM are not retrieved in this mode. You can
perform this type of download to verify the contents of the
flash memory buffer in the event that a normal or incremental
download does not retrieve all the data that you expect to
receive.

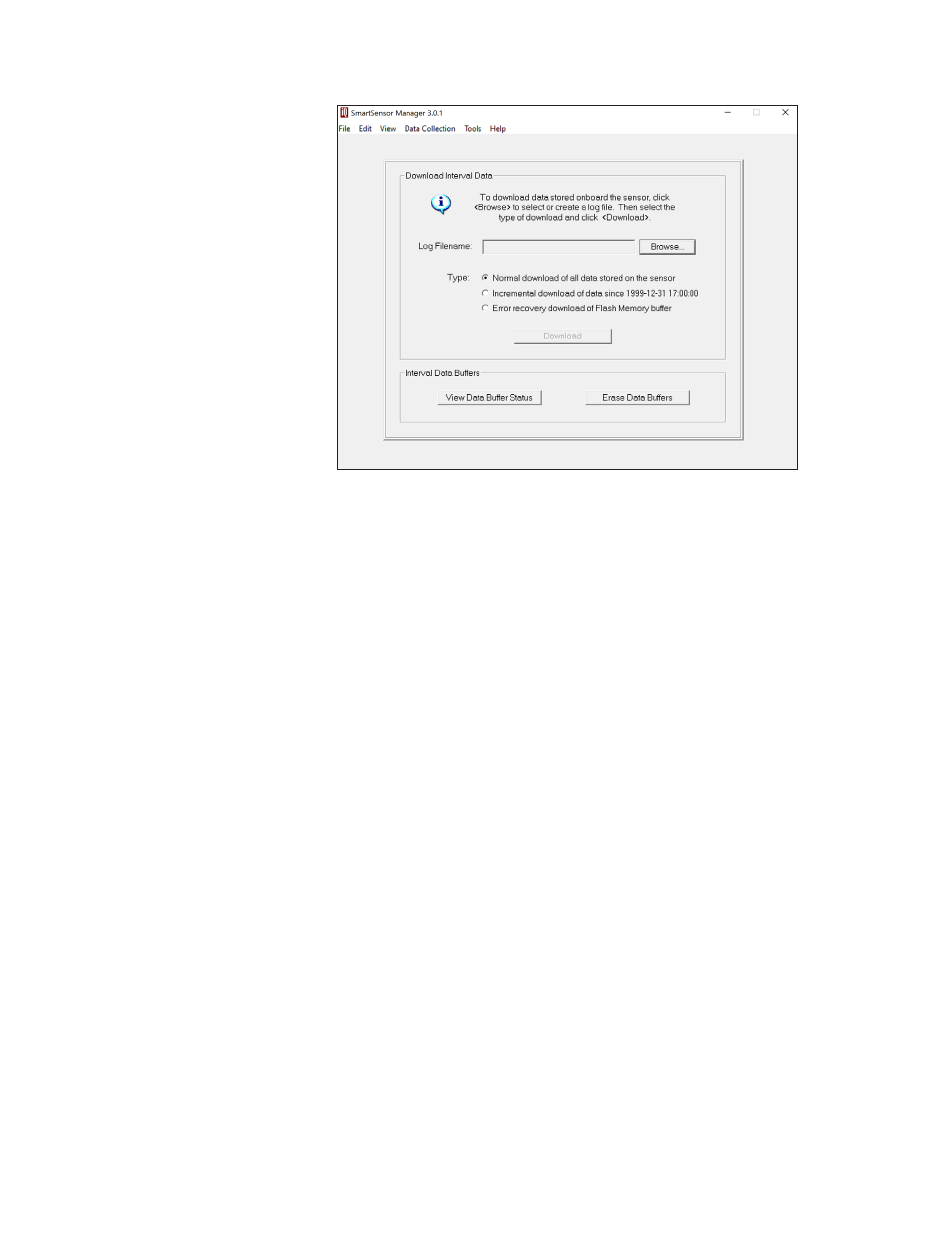

Figure 65. Data download
