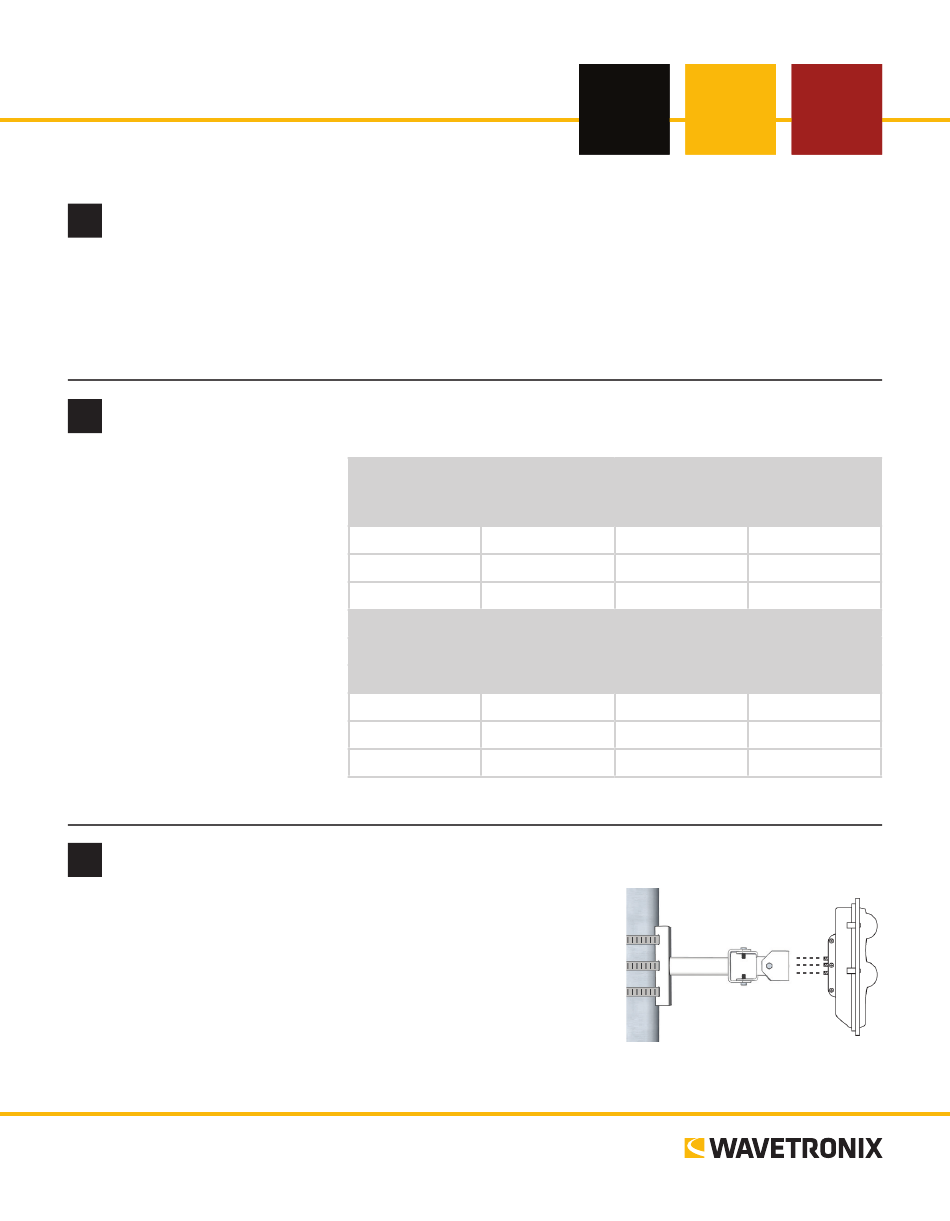

Wavetronix SmartSensor V Quick Start Manual

SmartSensor V
QUICK START GUIDE
1
Ensure that all necessary components are available
You will need a number of items in order to install your sensor, including but not limited to the items below:
˽ Mount bracket and Band-It clamping system
˽ Sensor cable and homerun cable
˽ Click equipment and pole-mount box
2
Select a mounting height
Use the table to select the mount-
ing height for the sensor based on
the offset from the nearest detec-
tion lane. The range of ideal offsets
is highlighted in gray. If possible,
use the height contained in the
second column (Recommended
Mounting Height).
In areas with a lot of truck traffic,
consider a higher mounting height
to help mitigate occlusion.
Note. This table is truncated. For a
complete table, refer to the Smart-
Sensor V User Guide.
3
Attach the sensor and mount bracket to the pole
1
Attach the mount bracket to the pole using the straps.
2
Tighten the strap screws partway. The sensor alignment will need to
be fine-tuned later, so keep the straps slightly loose.
3
Attach the sensor to the bracket; the connector at the bottom of the
unit should point towards the ground.
4
Place the lock washers onto the bolts, thread on the nuts and tighten.
www.wavetronix.com
801.734.7200
˽ Laptop with SmartSensor Manager, downloaded
from wavetronix.com
˽ Bucket truck
Offset from first Recommended
Detection Lane Mounting Height
(ft/m) (ft/m)
9 / 2.7 12 / 3.7
15 / 4.6 15 / 4.6
20 / 6 18 / 5.5
25 / 7.6 20 / 6
30 / 9.1 22 / 6.7
35 / 10.7 23 / 7
40 / 12.2 25 / 7.6
45 / 13.7 27 / 8.2
50–80 / 15–24 30 / 9.1
Minimum Maximum
Mounting Height Mounting Height
(ft/m) (ft/m)
9 / 2.7 15 / 4.6
12 / 3.7 18 / 5.5
15 / 4.6 20 / 6
17 / 5.2 25 / 7.6
19 / 5.8 30 / 9.1
20 / 6 35 / 10.7
22 / 6.7 40 / 12.2
23 / 7 45 / 13.7
25 / 7.6
must be < offset
