square hole above it, and rock upwards to secure the conduc-
tor in place.
Repeat step 4 with the white conductor in the N terminal block,
5
and the green conductor in the G terminal block, as shown
above.
L L N G G

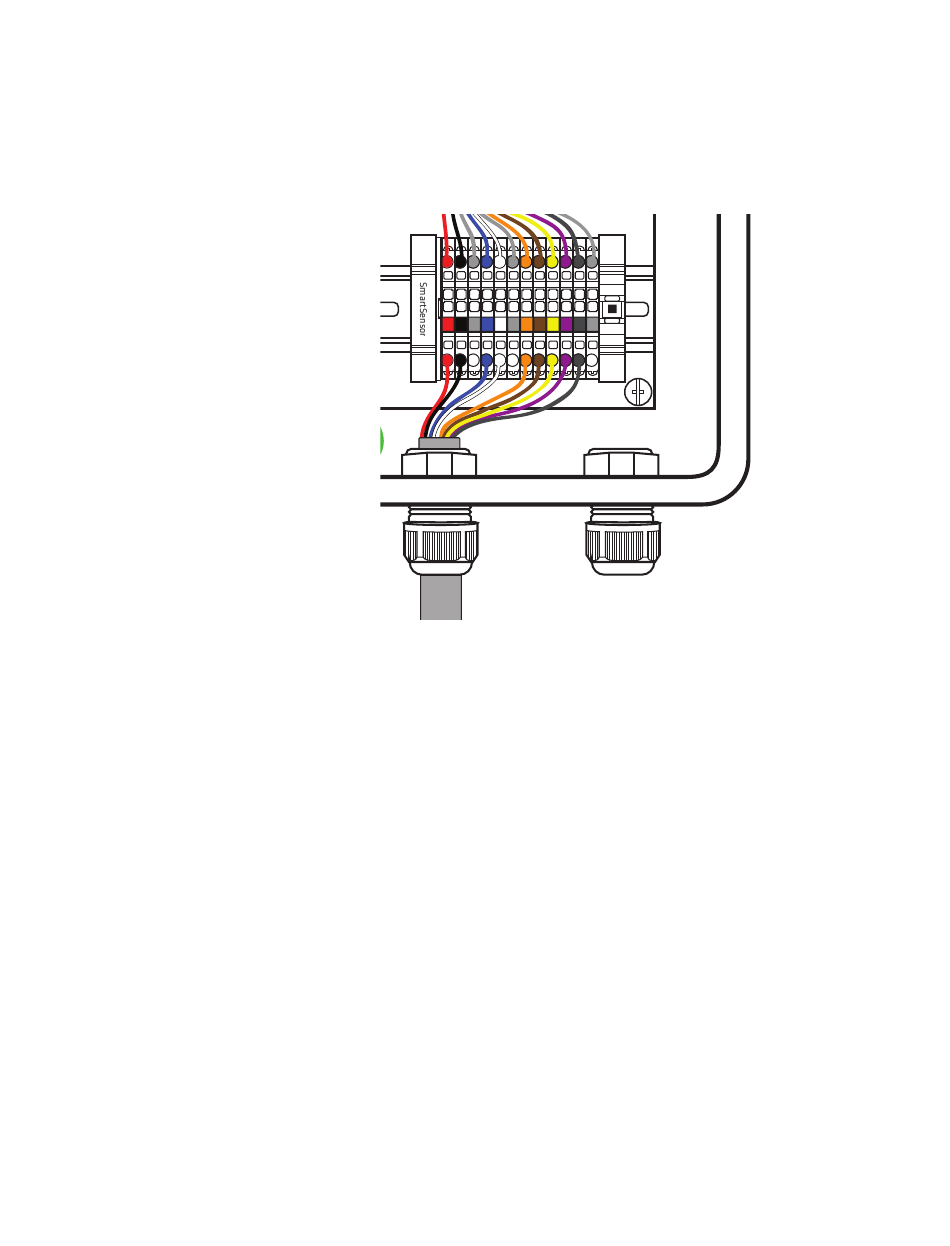

Figure 17. Connecting sensor cable to terminal blocks
Insert the sensor cable (the pigtail cable coming from the
6
sensor)into the middle grip on the bottom of the box. Twist the
cable grip to tighten.
Follow the instructions in step 4 to land each conductor into
7
the correct terminal block. The blocks are color-coded for your
convenience: land the red conductor into the block with the red
label, and so on.
W
Click!
200
+DC +DC -DC -DC GND GND 485- 485- 485+ 485+ GND GND RTS RTS CTS CTS TD TD RD RD GND GND GND GND
