Wavetronix SmartSensor V Installer Quick-Reference Manual

SmartSensor V
INSTALLER QUICK-REFERENCE GUIDE
Introduction
Complete steps 1–9 to integrate the Wavetronix SmartSensor V into your
traffic application. If you need technical support or have questions, please
contact Wavetronix Technical Services at (801) 734-7200. For more infor-
mation, see the SmartSensor V User Guide.
1

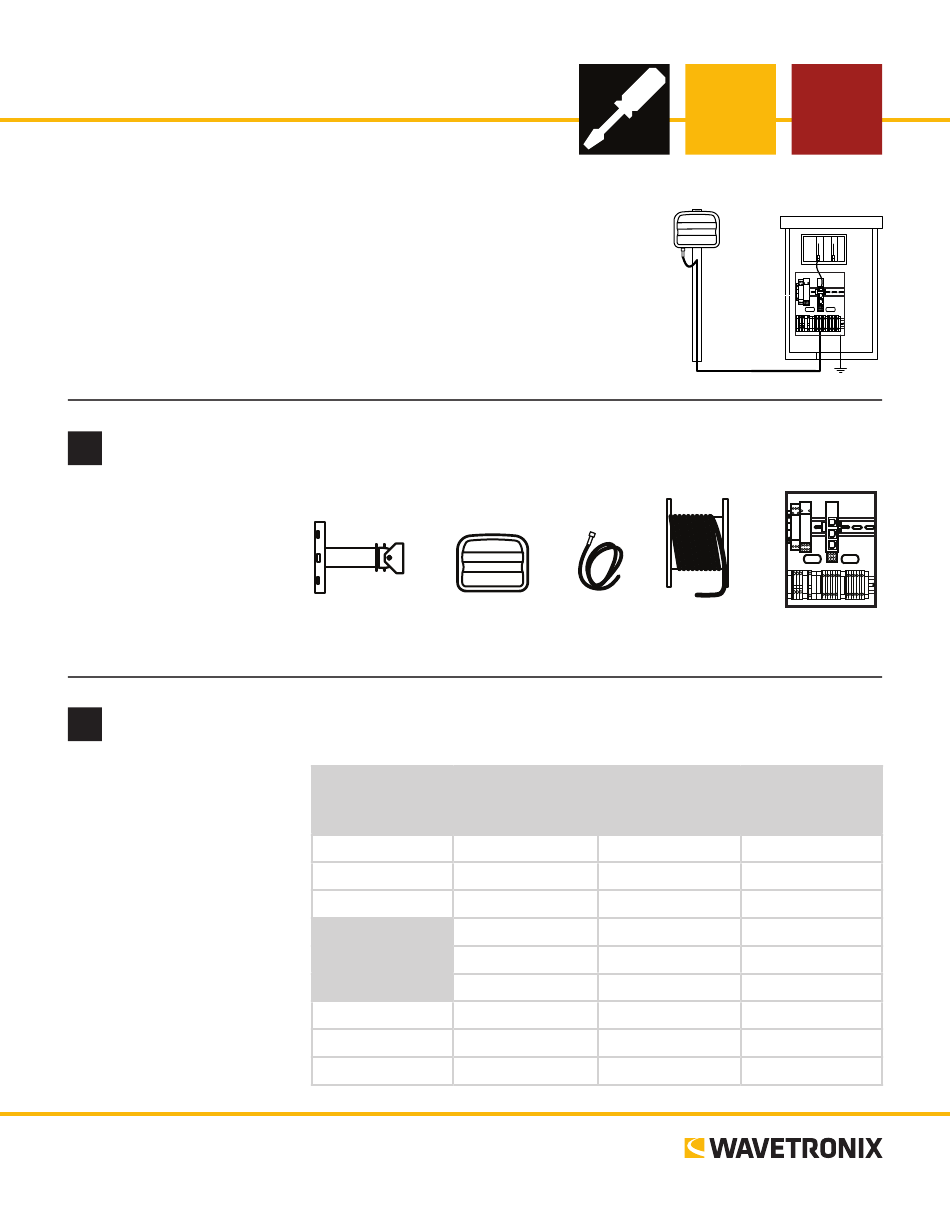

Ensure that all necessary components are available

The components below, all of
which can be ordered from
Wavetronix, may be needed
to install your SmartSensor
V; for more information on
any of these, see the Wavetro-
nix product catalog.
2

Select a mounting height

Determine the offset by
measuring the distance
from the nearest detection
lane to the pole the sensor
is mounted on.
Find the recommended
mounting height by using
this table.
The range of ideal offsets
is highlighted in gray.
www.wavetronix.com
801.734.7200
Mount Sensor
bracket
Offset from first Recommended
Detection Lane Mounting Height
(ft / m) (ft / m)
9 / 2.7 12 / 3.7
15 / 4.6 15 / 4.6
20 / 6 18 / 5.5
25 / 7.6 20 / 6
30 / 9.1 22 / 6.7
35 / 10.7 23 / 7
40 / 12.2 25 / 7.6
45 / 13.7 27 / 8.2
50–80 / 15–24 30 / 9.1
Sensor Home-
cables run cable
Minimum Maximum
Mounting Height Mounting Height
(ft / m) (ft / m)
9 / 2.7 15 / 4.6
12 / 3.7 18 / 5.5
15 / 4.6 20 / 6
17 / 5.2 25 / 7.6
19 / 5.8 30 / 9.1
20 / 6 35 / 10.7
22 / 6.7 40 / 12.2
23 / 7 45 / 13.7
25 / 7.6
must be < offset
Preassembled
cabinet
