Applying silicon dielectric compound

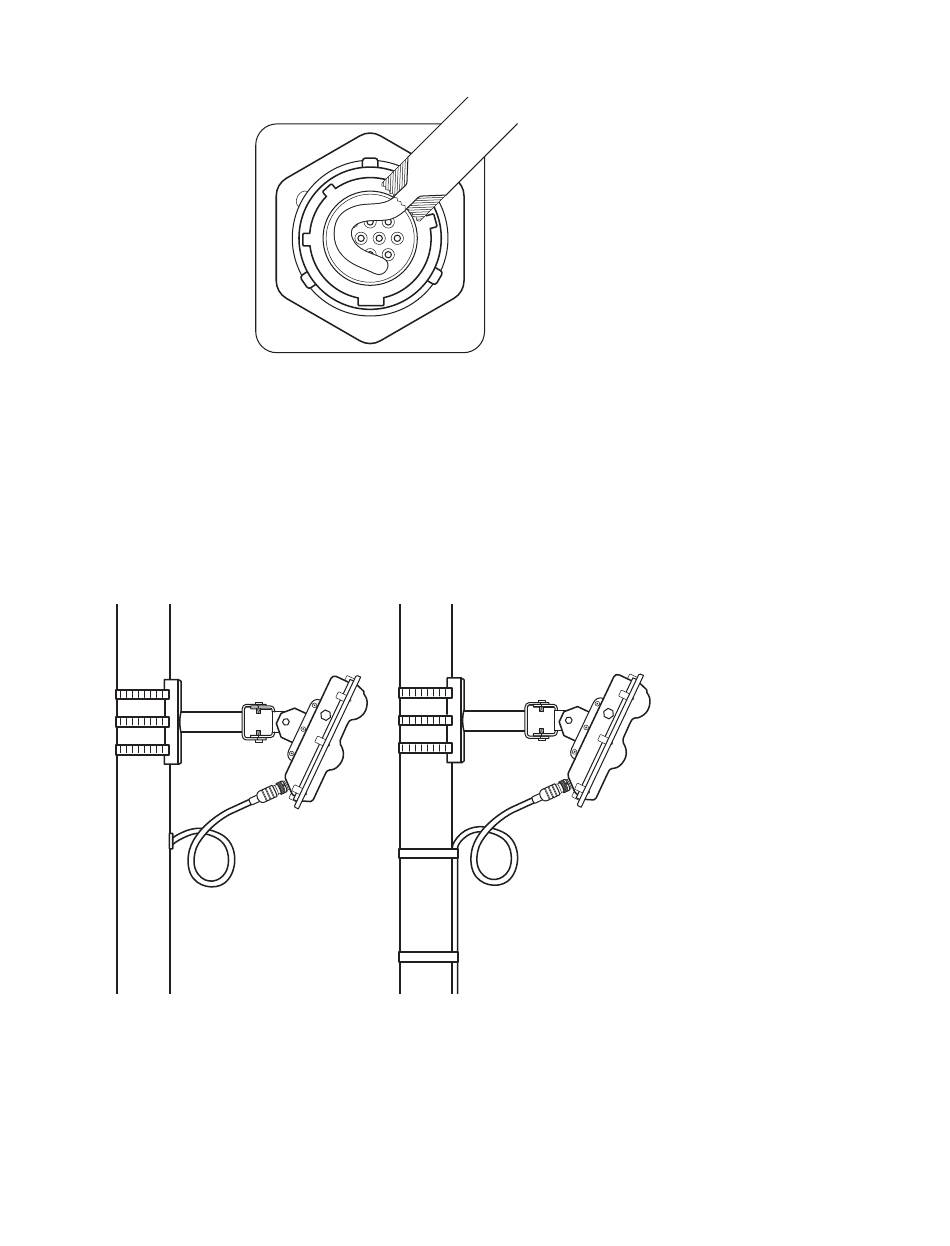

Figure 11. Applying the compound
Tear the tab off the tube of silicon dielectric compound that
1
came with the sensor.
Squeeze about half of the compound on the connector at the
2
base of the sensor.

Connecting the cable

Figure 12. Cable run through pole (left) and through conduit (right)
Insert the cable connector into the sensor connector. Be aware
1
that it is a keyed connector.
Chapter 2: Installing the SmartSensor V
Note. The V sensor
uses an 8-conductor
cable that can
be ordered from
Wavetronix. It's also
possible to order
a retrofit V with a
legacy connector;
this would use the
older 9-conductor
SmartSensor cable.
