Connect the grounding lug to earth ground.
8

Setting up the traffic cabinet

L N G

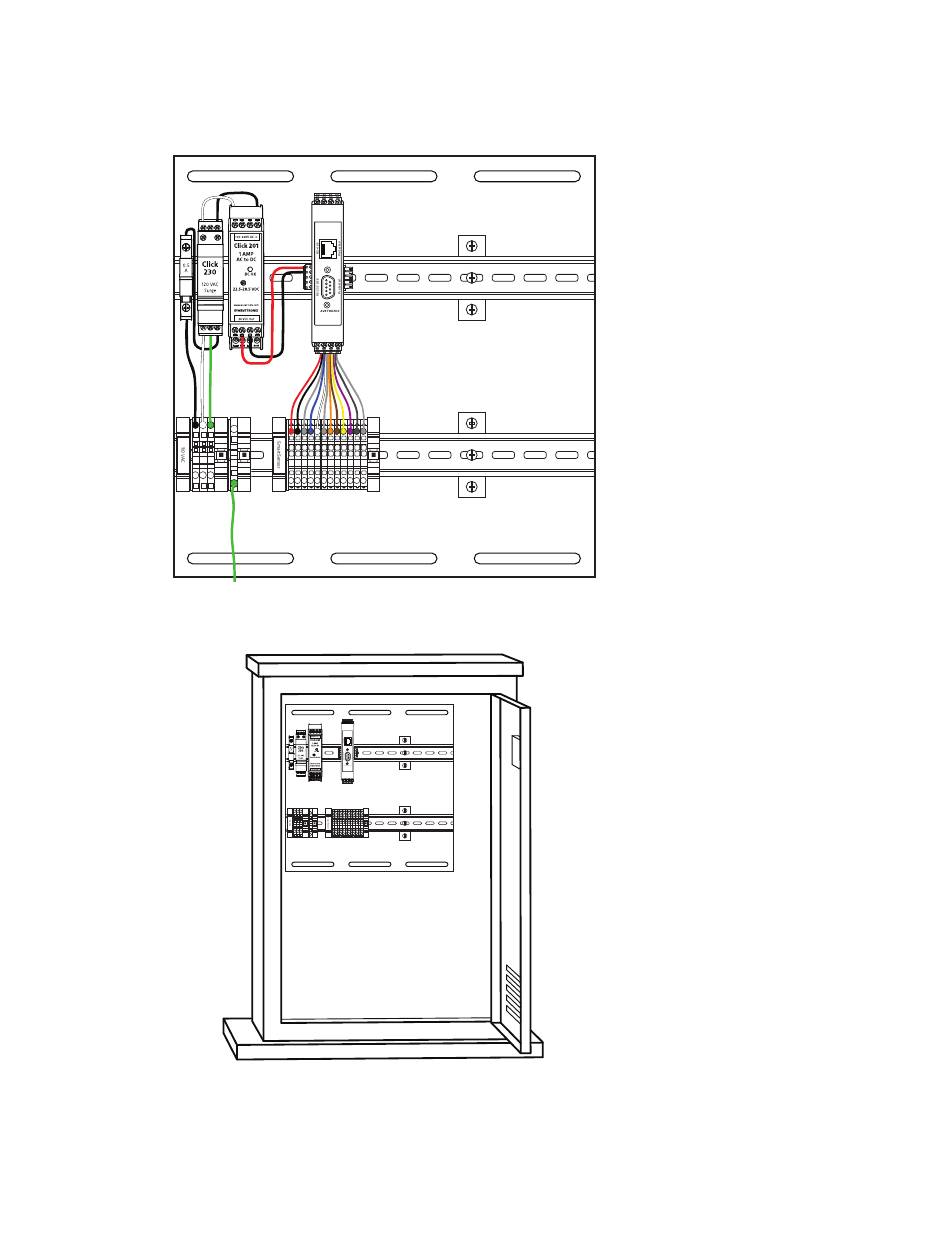

Figure 25. Standard Preassembled Backplate (for traffic cabinet)
Figure 26. Mounting the backplate in the cabinet
If you haven't already, run the homerun cable back to the traffic
1
cabinet.
Lightning
Surge
Protection
W
Click!
200
+DC -DC GND 485- 485+ GND RTS CTS TD RD GND GND
Lightning
Surge
Protection
W
Click!
200
L N G
+DC -DC GND 485- 485+ GND RTS CTS TD RD GND GND
Chapter 3: Installing Power, Surge Protection, and Communications
Note. This section
assumes you are
using the Standard
Preassembled
Backplate from
Wavetronix. If you
bought individual
Click modules
instead, see the
knowledge base
articles found at
wavetronix.com. For
more information
about the power
plant, see article 295,
How to Assemble
the Power Plant.
29
•
