Note. SmartSensor
Manager allows
a maximum of
eight lanes.
SmartSensor V User Guide
60
•

Adding lane dividers

Click Paint Lines.
1
Click in paved (black) areas to add new lane dividers. This
2
allows you to create new lanes.

Removing a lane divider

Click Remove Lines.
1
Click a lane divider to delete it.
2

Removing a lane

Click Remove Lane.
1
Click on a lane to remove the entire lane.
2

Adding a road

Click Construct Roads.
1
Click anywhere in the background (khaki) area to insert a new
2
road.
Click Adjust Lanes, and widen the road as desired.
3
Add and adjust lanes and lane dividers as needed.
4

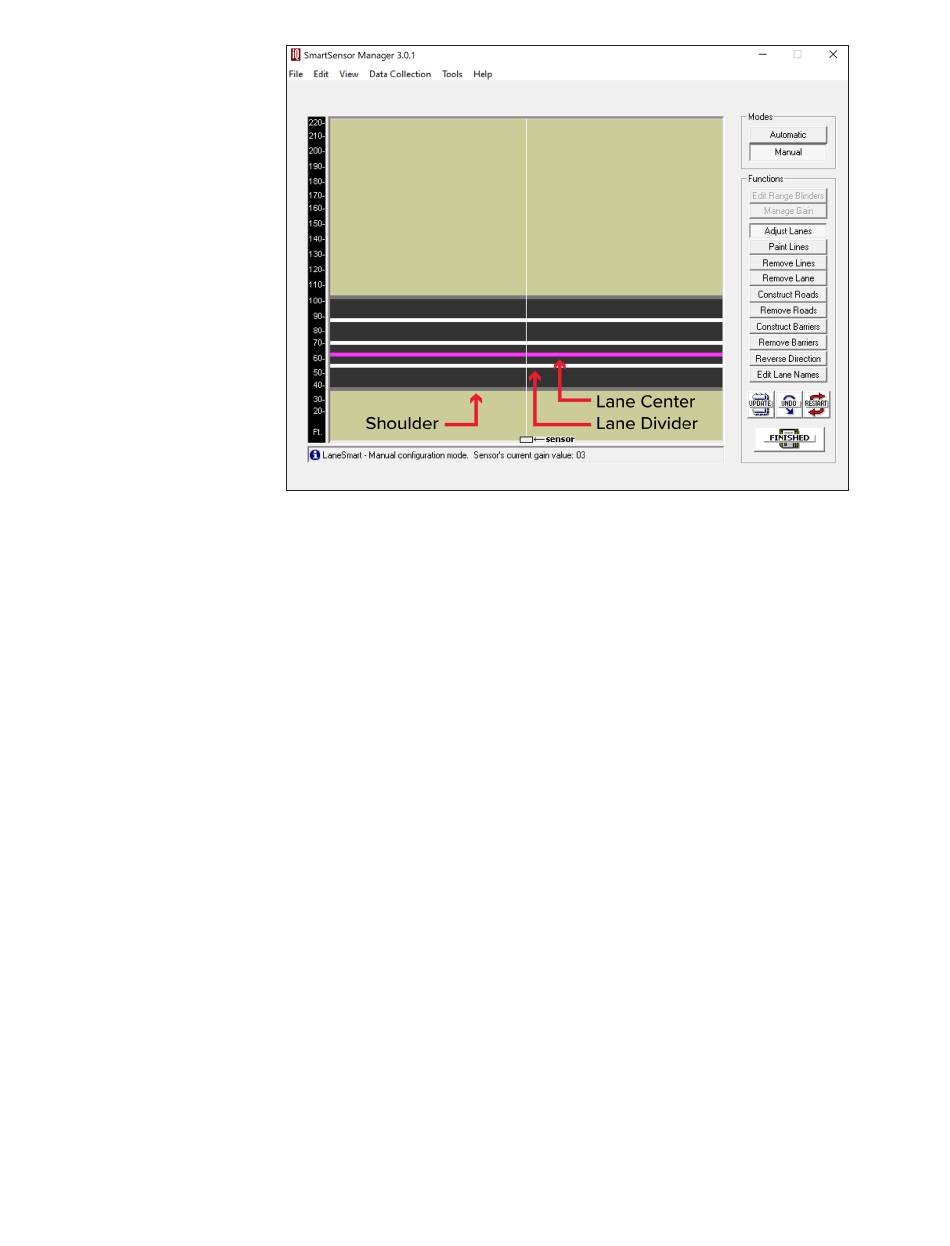

Figure 53. Adjusting lanes
