Additional information
If the roadway is frequently used by tall vehicles, consider
˿
choosing a higher mounting height to help avoid occlusion.
Don't use an offset of less than 9 ft. (2.7 m). Also, the sensor can
˿
be up to 180 ft. (54.9 m) from the road, but don't go out that far if
you can avoid it; it could lead to decreased accuracy.
For best results, choose the mounting height in the Height
˿
column in the table. If you can't, just keep it somewhere in the
acceptable range.

Occlusion and multipathing

These are two problems you might face while using a radar
detector.

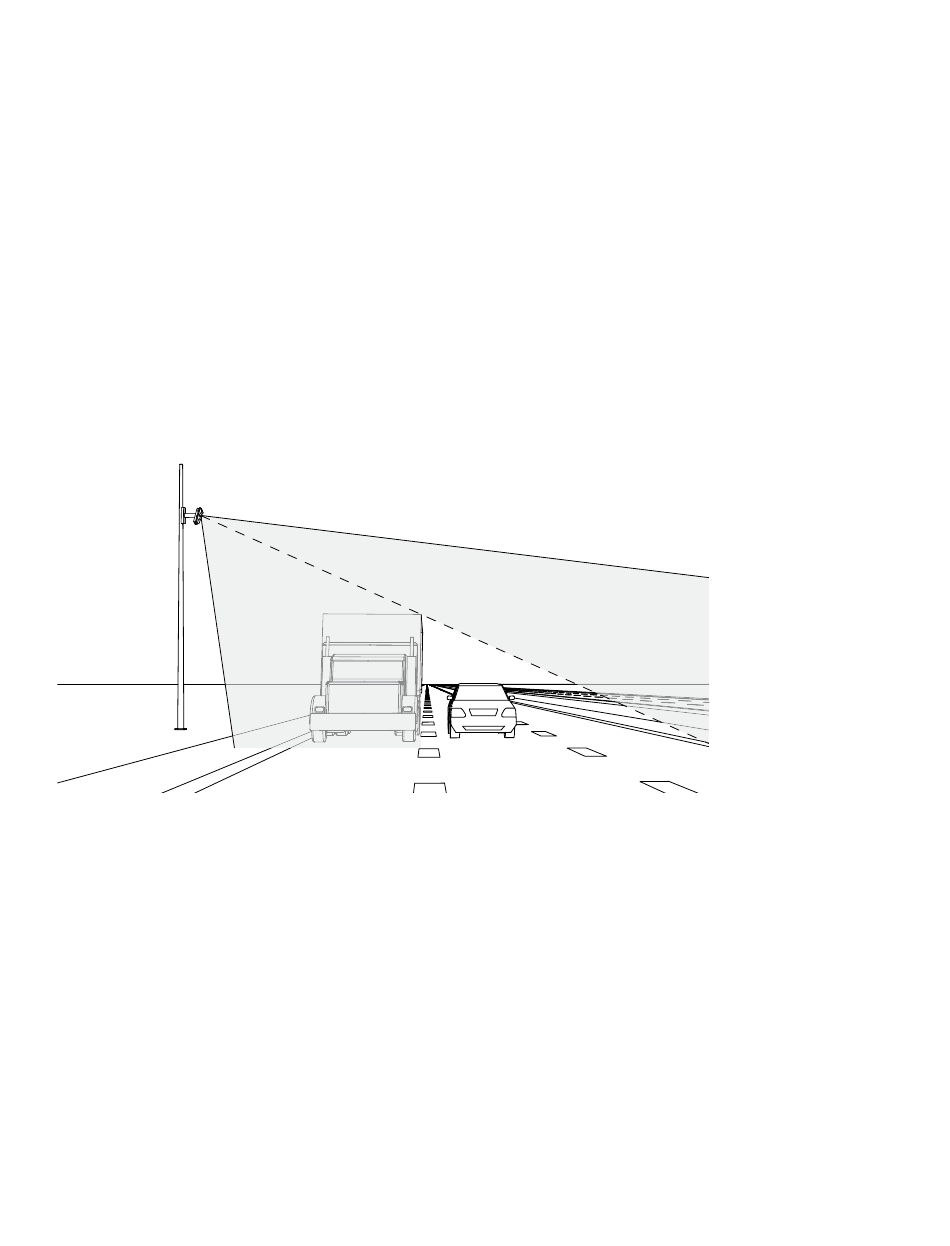

Occlusion occurs when one object blocks another object from the
sensor's view, as shown above. This can happen with
Tall vehicles like semitrucks
˿
Signs
˿
Barriers and sounding walls
˿
Trees and more
˿
Figure 4. Occlusion
Chapter 1: Choosing a Mounting Location
Warning. Choosing
a mounting
height outside
that range could
negatively affect
sensor accuracy.
13
•
