Removing a road

To remove an entire road, including all lanes, click Construct
1
Roads.
Click on a road to remove it.
2
Adding a barrier
Click Construct Barriers.
1
Click in paved (black) areas to add a barrier.
2
Removing a barrier
Click Remove Barriers.
1
Click on an existing barrier to remove it.
2
Reversing lane direction

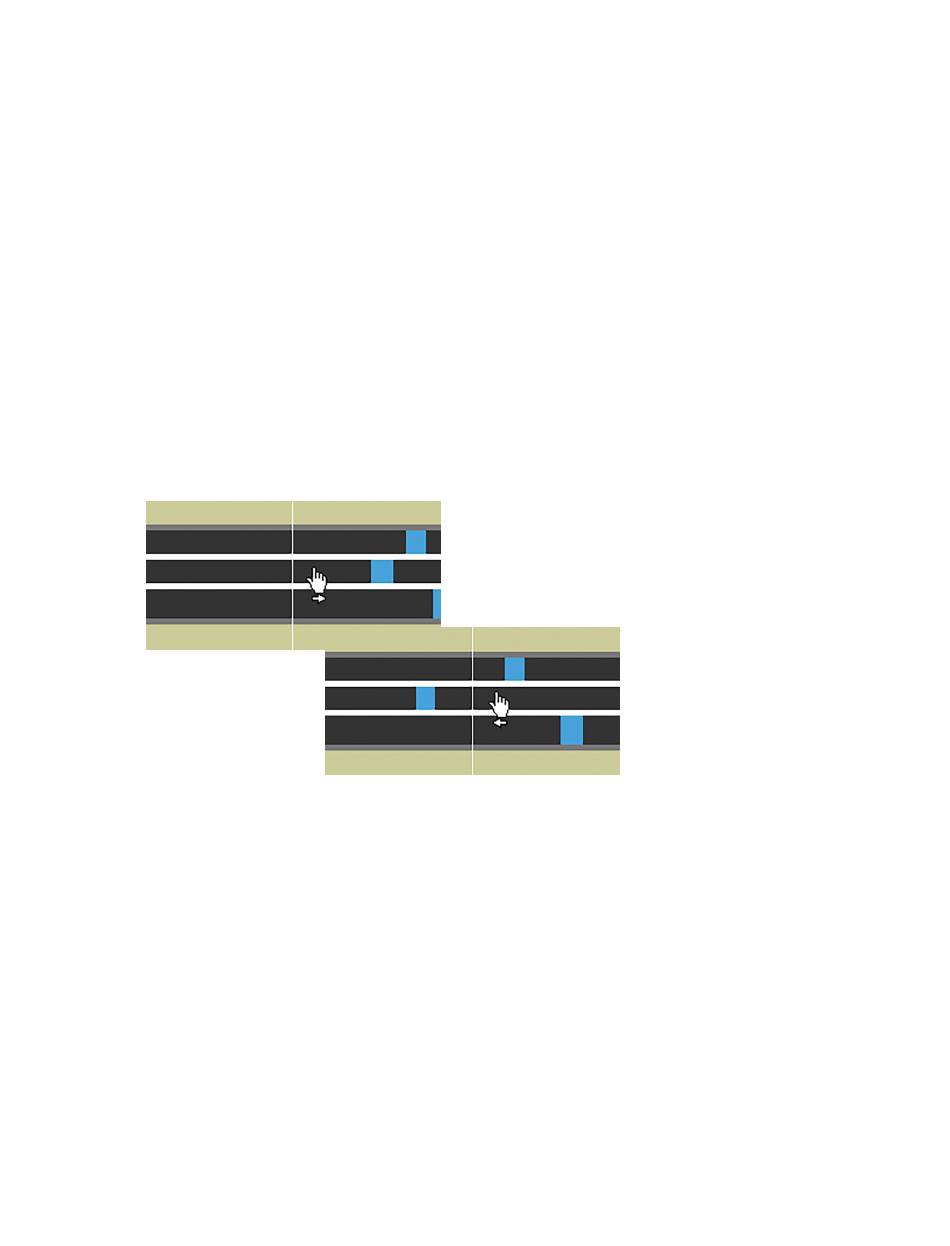

Figure 54. Reversing the direction of the center lane
Click Reverse Direction.
1
Click on a lane to reverse its direction.
2
Repeat step 2 until all lanes reflect the actual direction traveled
3
by detected vehicles.
After
Before
Chapter 7: Configuring Lanes
Definition.
Constructing a
barrier or median is
essentially the act of
dividing a single road
into two separate
roads. SmartSensor
Manager defines a
barrier or median
as two adjacent
shoulder lines or two
shoulder lines with
only background
(khaki-colored) areas
in between them.
Note. Using the
Reverse Direction
button only affects
the SmartSensor
Manager display,
not the sensor or
any detections.
