Note. Free-flowing
traffic in each lane
is required for
proper configuration.
The time required
for configuration
depends on the
volume of traffic
present in the lanes,
but is typically only
a few minutes.
SmartSensor V User Guide
56
•
After selecting the Automatic button, many of the options on
the right side of the screen are grayed out. Begin with auto con-
figuration, and if you need to make further adjustments, you can
manually configure lanes as well.

Starting automatic lane configuration

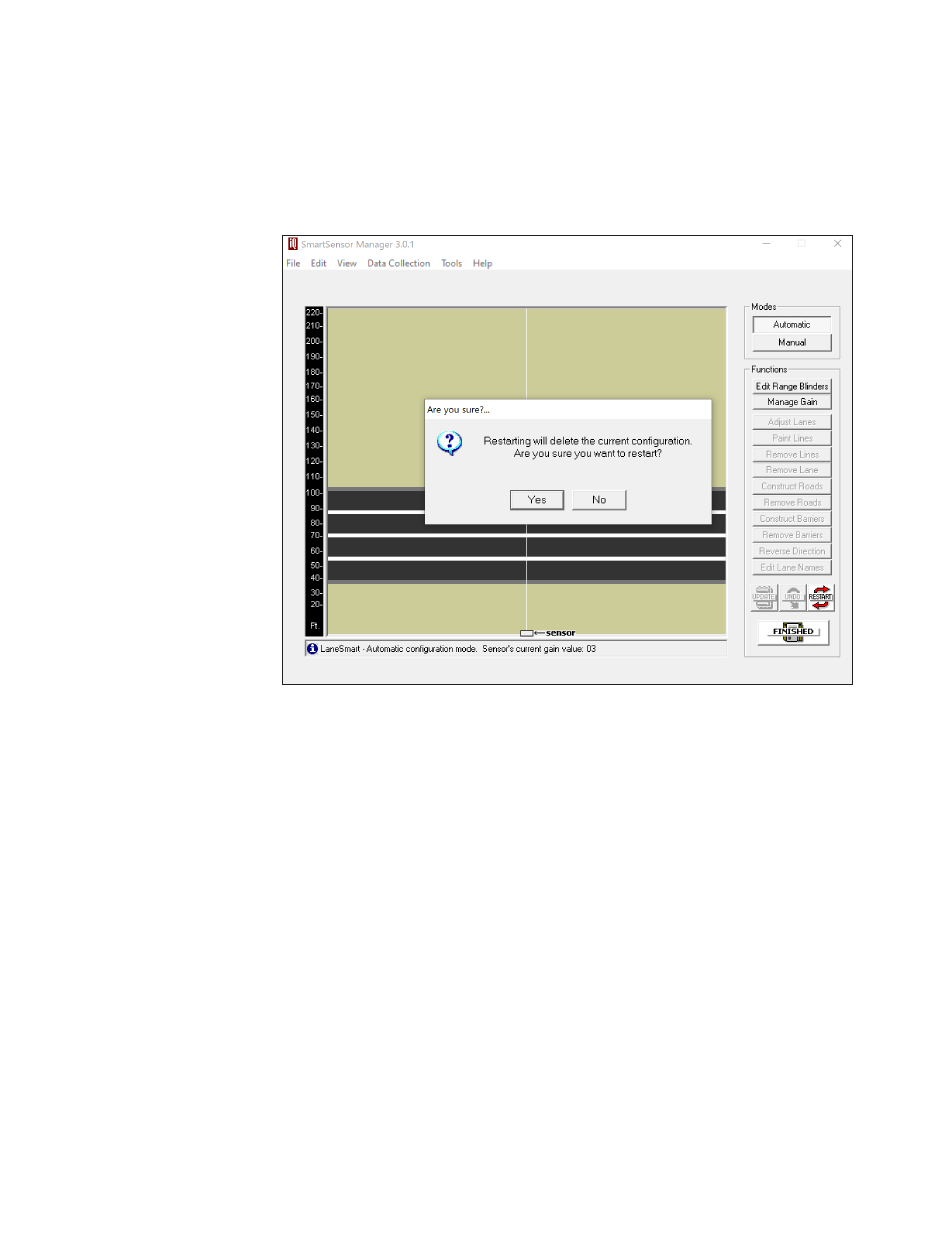

Figure 49. Confirming automatic lane configuration
Go to Edit > Lane Configuration.
1
Click the Automatic button.
2
If you would like to set constraints on the configuration through
3
the Edit Range Blinders or Manage Gain buttons, do so now.
For more information on these options, see the following
sections.
Click the Restart button in the bottom-right corner of the
4
screen.
When the pop-up appears, click Yes. SmartSensor Manager will
5
now automatically begin detecting and configuring lanes, and
the screen will show a visual depiction of the lanes and vehicle
detections in real time.
Save the configuration by clicking the Finished button in the
6
bottom-right corner.
