Editing range blinders

Click the Edit Range Blinders button. Red bars (range blinders)
1
will appear at the top and bottom of the roadway display and
any previously displayed roadways will be cleared.
Click on one of the range blinders and drag its edge to the
2
desired range (refer to the range markers on the left side of the
screen).
Repeat Step 2 for the other range blinder if necessary.
3
Continue with the configuration process.
4

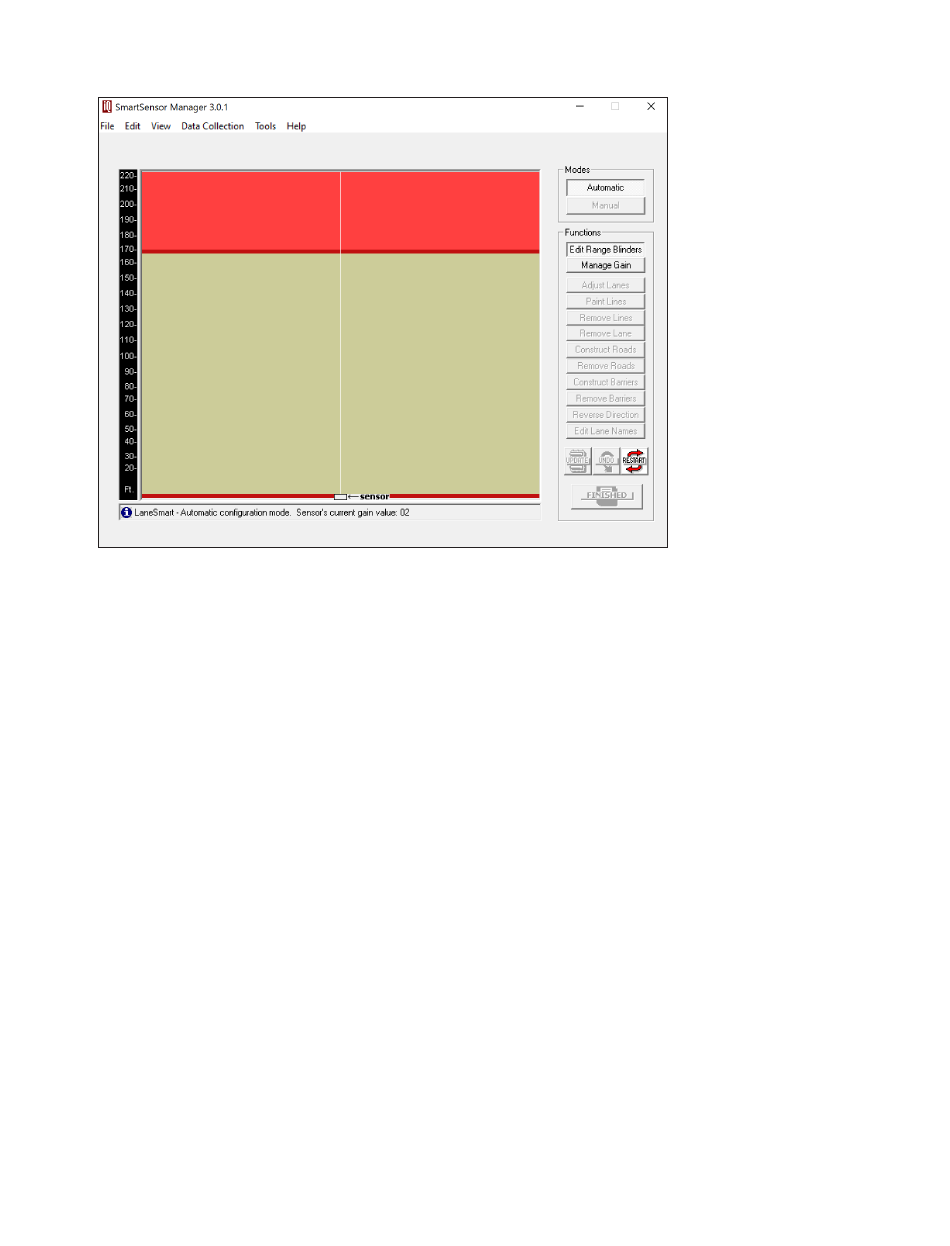

Figure 50. Editing range blinders
Note. Using range
blinders will narrow
the search area
of the automatic
lane configuration
process, which
allows you to
configure faster and
avoid configuring
undesired lanes.
Chapter 7: Configuring Lanes 57
•
