Tilt the sensor down so the front is aimed at the center of the
1
detection area.

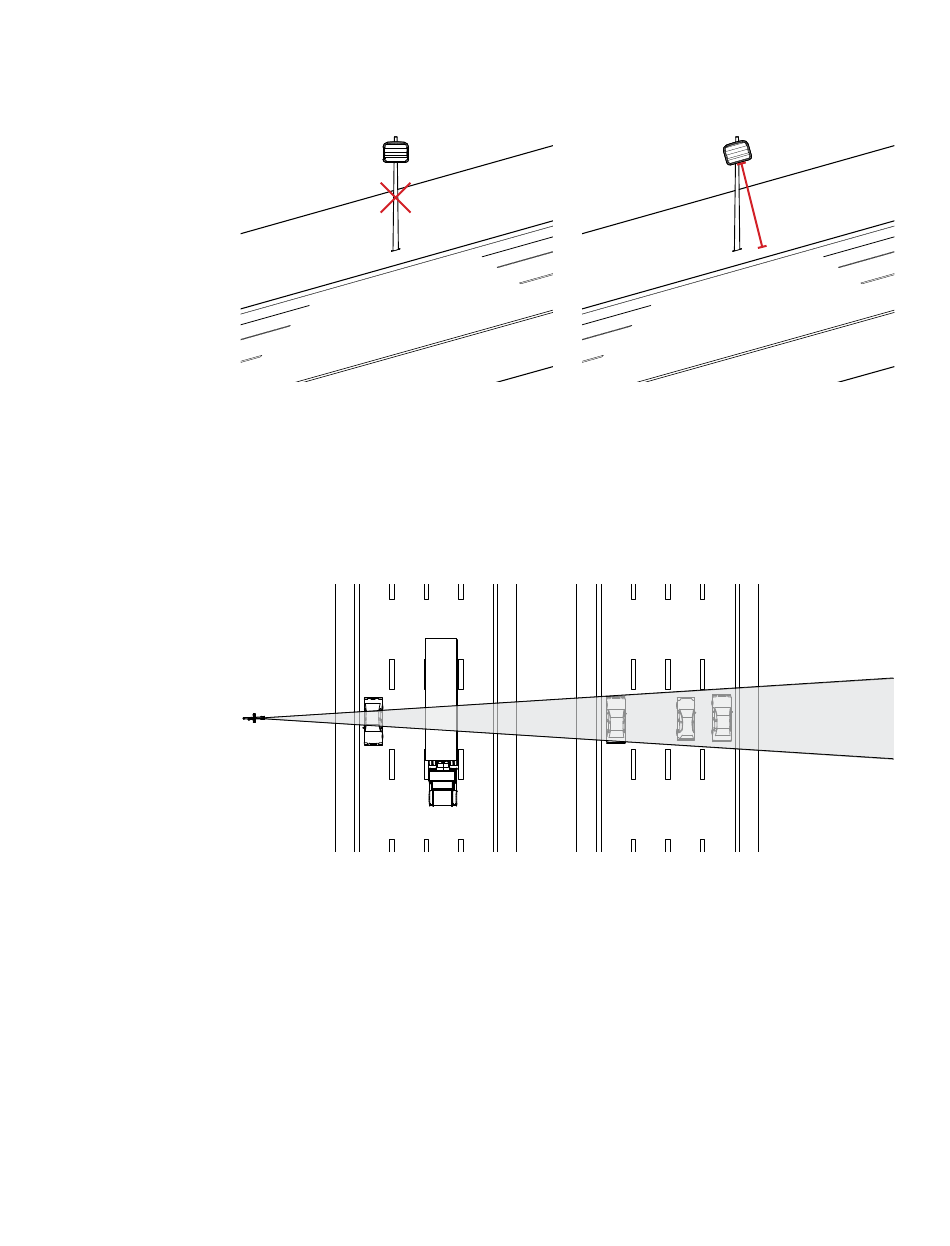

Figure 9. Rotating the sensor on a hill: incorrect (left) and correct (right)
If the sensor is installed on a road with an uphill/downhill grade,
2
rotate the sensor so that the bottom edge matches the grade
of the road (this will require the purchase of a rotating sensor
backplate).
Figure 10. Side-to-side positioning
Adjust the side-to-side angle so it's perpendicular to the flow of
3
traffic.
