RG-S7808C switch is a class A product. In a domestic environment, this product may cause radio interference in
which case the user may be required to take adequate measures.

Product Appearance

The hardware system of the RG-S7808C switch is composed of the chassis, the power system, modules and the cooling
system.
The power system provides four power supply slots and supports N+M power supply redundancy. Users are
recommended to configure redundancy for the power supplies.
The RG-S7808C switch provides two supervisor module slots and six service module slots. The supervisor modules
support 1+1 redundancy. Users are recommended to configure redundancy for the supervisor modules. Users may
choose different service modules as needed.
The cooling system is composed of the fan trays and air filters. Fan trays are at the back of the chassis. The air filters
are on the right side of the chassis.

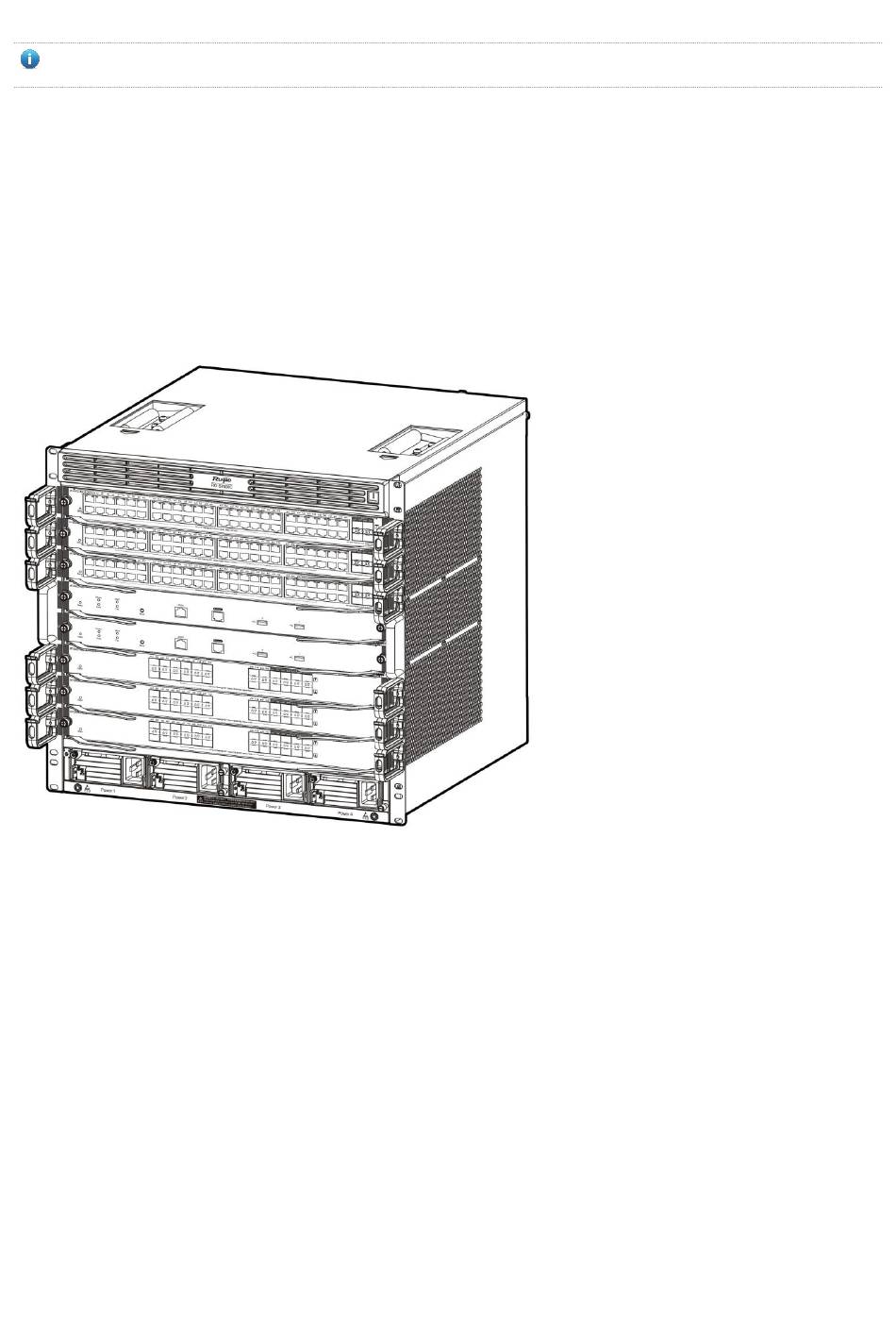

Figure 1-1 Appearance of the RG-S7808C Switch

Front Panel

The front panel of the RG-S7808C switch is shown in Figure 1-2.
Figure 1-2 Front Panel of the RG-S7808C Switch
