1.1.1

Product Appearance

The RG-S7810C-X

Power supply system: provides four system power module slots and power modules in N+N redundancy
mode. You are advised to configure power module redundancy.

System modules: provides two supervisor module slots, eight service module slots, and four switch fabric
module slots. The supervisor modules support 1+1 redundancy. You are advised to configure supervisor
modules in redundancy mode. You can select different modules as required.

Cooling system: is composed of fan trays. Fan trays are at the back of the chassis.

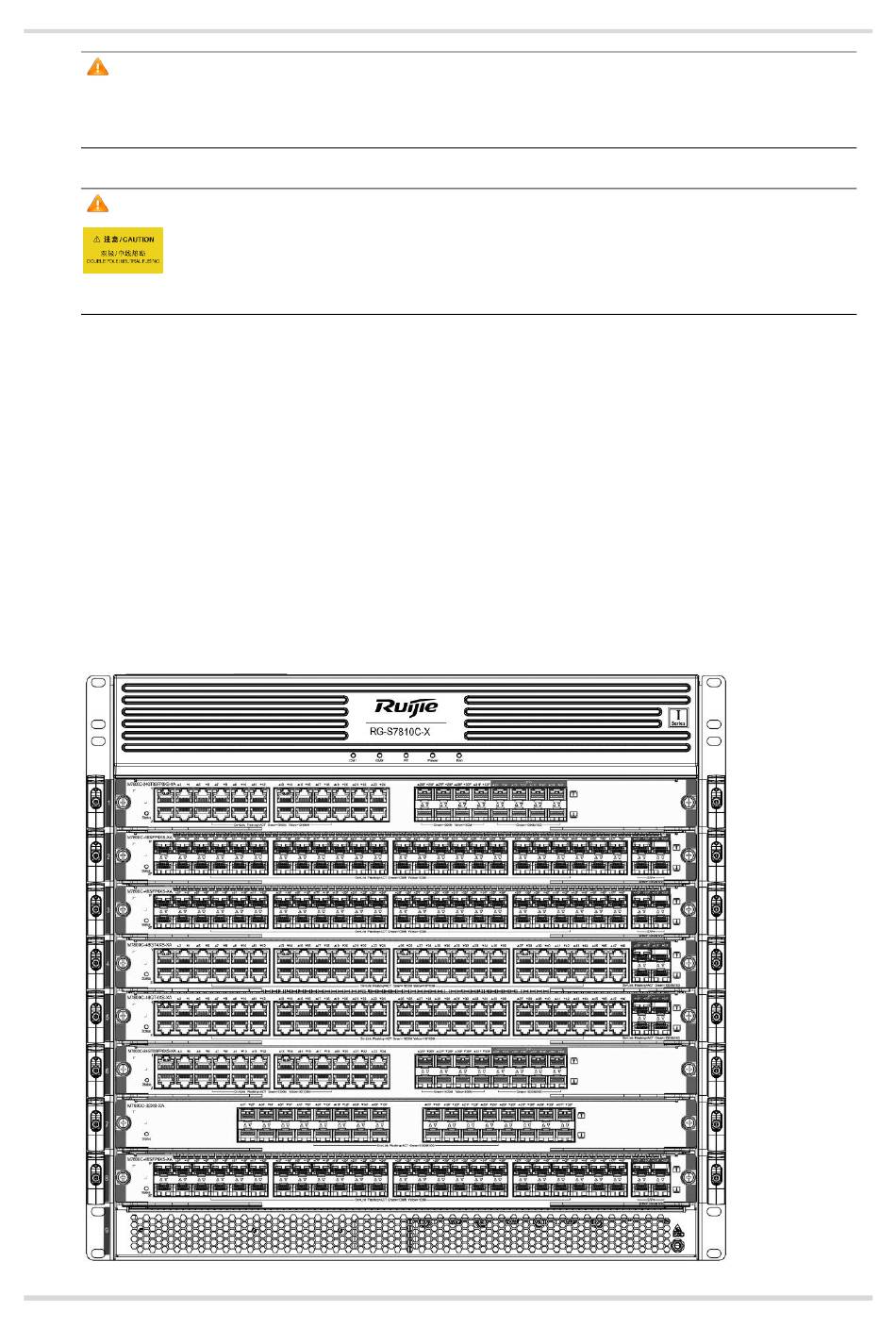

Figure 1-1 Appearance of the RG-S7810C-X
consists of the chassis, power supply system, system modules, and cooling system:
