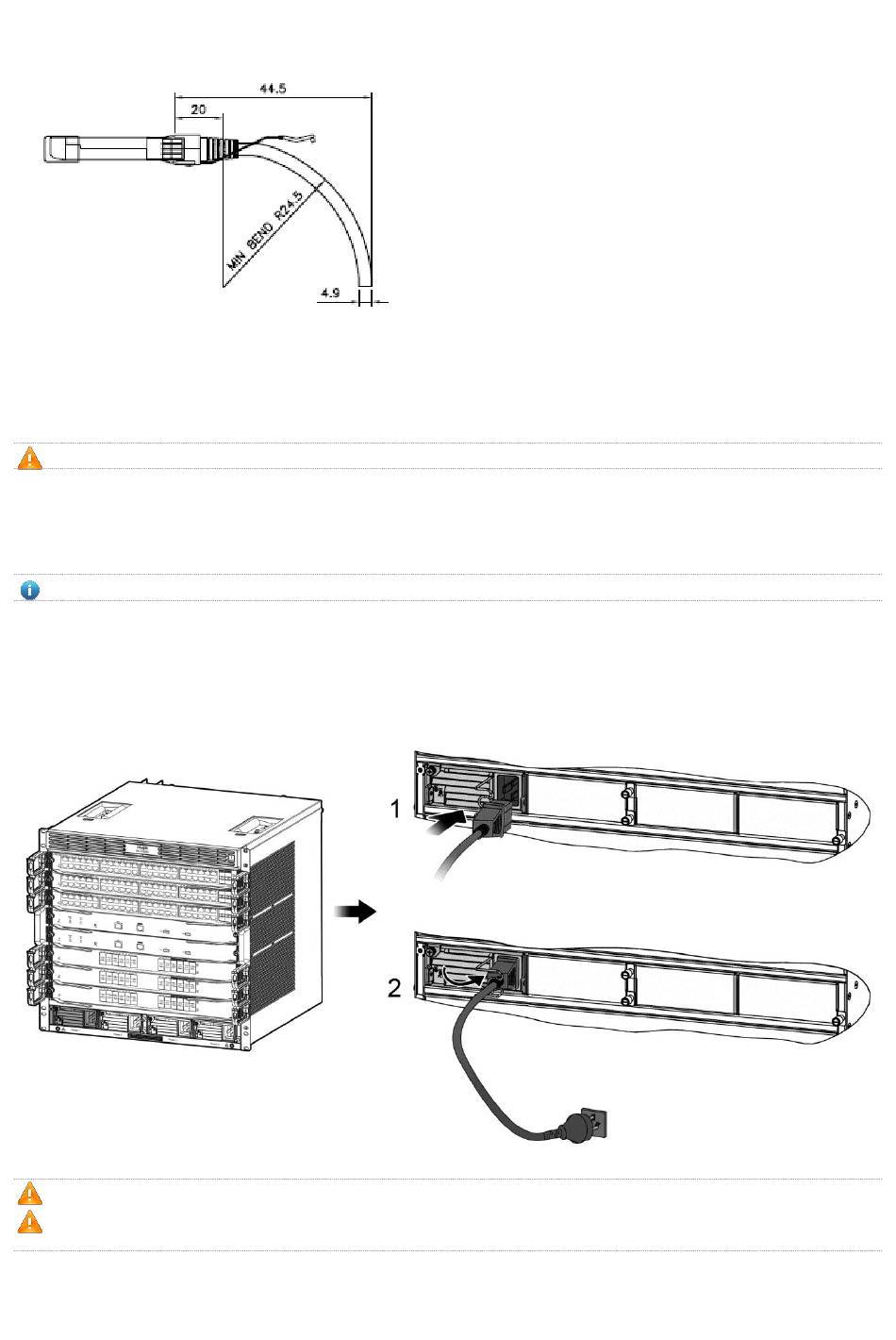

Figure 3-16 Bending Radius and Cable Diameter
Use an SFP+ cable to connect two SFP+ ports close to each other. Take the following steps to install the SFP+ module:
1. Wear an anti-static wrist strap close to your skin and have it properly grounded.
2. Take out the SFP+ module you want to install from the packing bag.
3. Plug the SFP+ cable to the SFP+ port through the connector. Pay attention to the proper end for connection.
During the operation, make sure that the

3.13 Connecting the Power Cord

Connect the power cord to the location as required according to the identification on the AC power module panel,
including RG-PA1600I, RG-PA600I, RG-PA3000I-PLand RG-PA1600I-PL.
Make sure the socket is powered off before the power cord is connected.
Connect the AC power cord
1. Insert the AC power plug into the power module socket.
2. Take out the anti-loose buckle.
3. Install the anti-loose buckle on the front panel of the power module
4. Fasten the anti-loose buckle to the power cord.
5. Connect the other end of the power cord to an external power socket.
Figure 4-17 Connecting the Power Cord
Please use the 3-pin power cord. The cross-sectional area of each pin is 1.5 mm
16A and 10A power cords are available for the RG-S7808C AC power supply. Adopt the proper socket and verify the
AC power supply capacity in the machine room.
2
or 14 AWG minimum.
