Power Cord
10A power cord
Requirement
When you plug in the power cord, please fasten the anti-loose buckle to the power cord to prevent loosening.
Operation Altitude: 4000m max. Storage Altitude: 4000 max.
1.2.10 M78-PSE

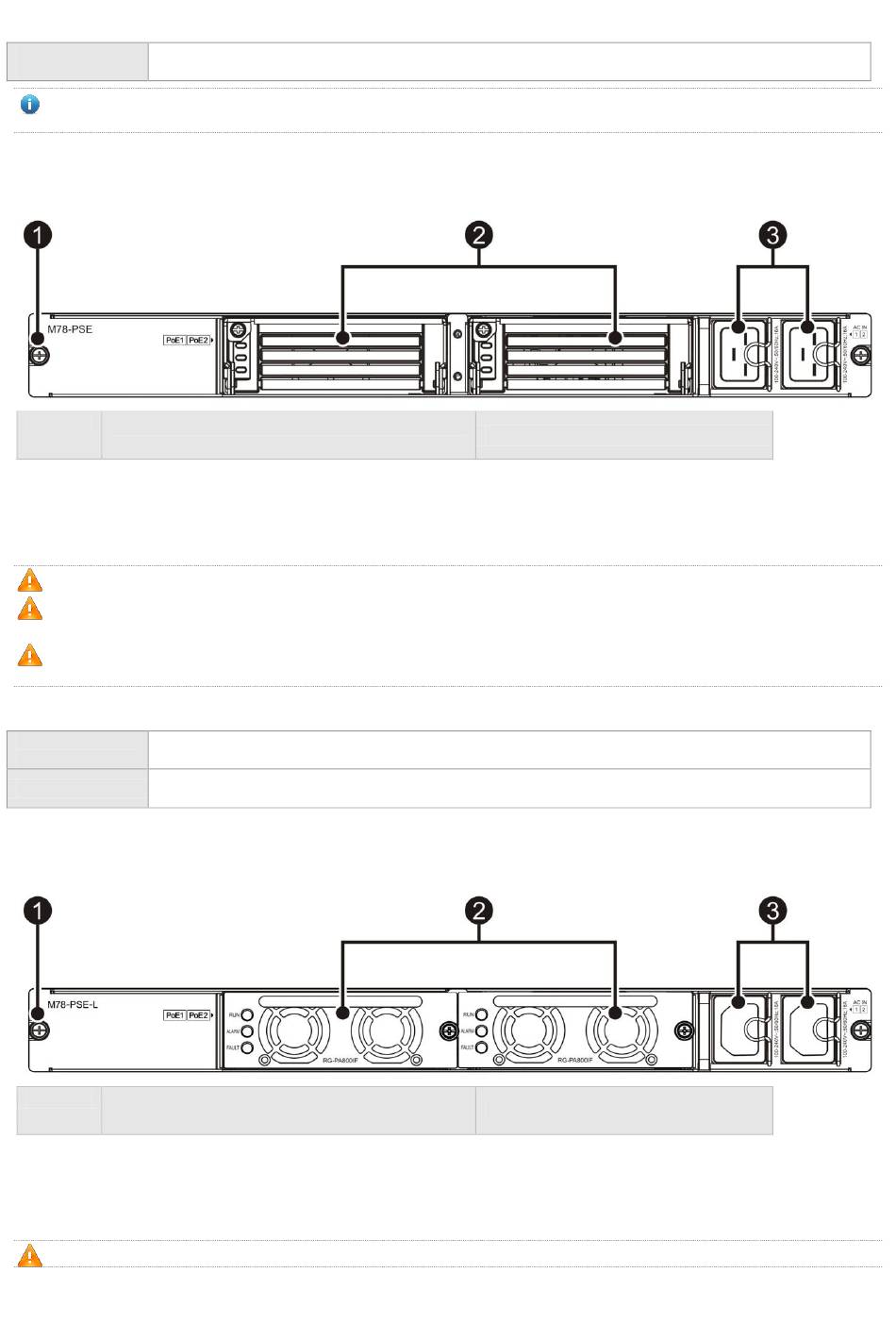

Figure 1-15 Appearance of the RG-M78-PSE Module
Note:
Captive screw of the PSE module
PoE power slots
Composition
The M78-PSE module provides PoE power input to RG-S7808C. The front panel of the power supply module provides two
PoE power supply slots and two 3-pin power port, which can be connected to standard 16A power cord. The M78-PSE
module supports RG-PA3000I-PL and RG-PA1600I-PL power supply module.
Do not insert the PoE power supply into the system power module slot.
Do not connect the PoE power cord to the system power supply. The 3-pin power port for the PoE module is on the
M78-PSE module.
The M78-PSE module provides two PoE power module slots (PoE1 and PoE2) and two 3-pin power ports (port for
PoE1 is the left one of
Specifications
Dimensions
400mm x 439mm x 43mm
(W x D x H)
Weight Net weight: 3.50 kg
1.2.11 M78-PSE-L
Figure 1-16 Appearance of the M78-PSE-L Module
Note:
Captive screw of the PSE module
PoE power slots
Composition
The M78-PSE-L module provides PoE power input to RG-S7808C. The front panel of the power supply module provides
two PoE power supply slots and two 3-pin power port, which can be connected to standard 10A power cord. The
M78-PSE-L module supports the RG-PA800IF power supply module.
Do not insert the PoE power supply into the system power module slot.
marked on Figure 1-15; port for PoE2 is the right one of
Jacks for PoE cables
marked on Figure 1-15).
Jacks for PoE cables
