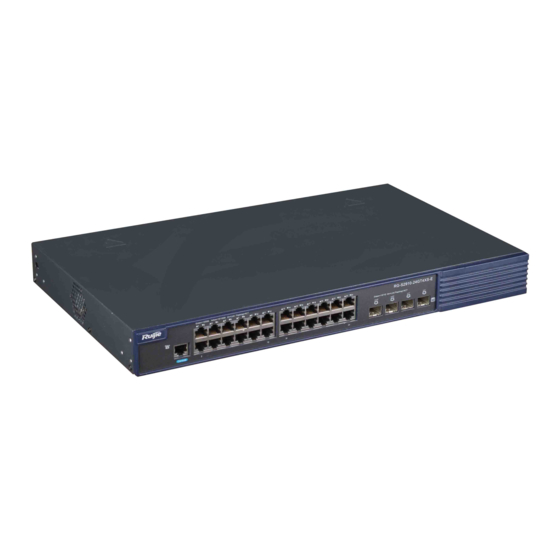

Ruijie RG-S2910-24GT4SFP-UP-H Hardware Installation And Reference Manual
  1. Manuals
  2. Brands
  3. Ruijie Manuals
  4. Switch
  5. RG-S2910-24GT4SFP-UP-H
  6. Hardware installation and reference manual

Ruijie RG-S2910-24GT4SFP-UP-H Hardware Installation And Reference Manual

Rg-s2910-h series
Hide thumbs
Table of Contents

Advertisement

Quick Links

RG-S2910-H Series Switch
Hardware Installation and Reference Guide V1.22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RG-S2910-24GT4SFP-UP-H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ruijie RG-S2910-24GT4SFP-UP-H

Summary of Contents for Ruijie RG-S2910-24GT4SFP-UP-H

  • Page 1 RG-S2910-H Series Switch Hardware Installation and Reference Guide V1.22...

  • Page 2: Copyright Statement

    Ruijie Networks reserves all copyrights of this document. Any reproduction, excerption, backup, modification, transmission, translation or commercial use of this document or any portion of this document, in any form or by any means, without the prior written consent of Ruijie Networks is prohibited. Exemption Statement This document is provided “as is”.

  • Page 3: Obtaining Technical Assistance

    It is intended for the users who have some experience in installing and maintaining network hardware. At the same time, it is assumed that the users are already familiar with the related terms and concepts. Obtaining Technical Assistance  Ruijie Networks Website: http://www.ruijienetworks.com/  Service Email: service_rj@ruijienetworks.com ...

  • Page 4: Product Overview

    The SPF+ ports are downward compatible with 1000Base-X. The SFP ports only support 1000Base-X modules. 1000Base-T is compatible with 100Base-TX and 10Base-T in the downlink direction. For RG-S2910-24GT4SFP-UP-H /RG-S2910-24GT4XS-UP-H, the HPoE ports support 60W power supply and support IEEE 802.af/at PoE.
  • Page 5 copper cables (XG-SFP-CU1M, XG-SFP-CU3M and XG-SFP-CU5M); SFP ports of hardware versions V2.XX support 10G DAC copper cables (XG-SFP-CU1M, XG-SFP-CU3M and XG-SFP-CU5M), 2.5G DAC copper cables (GE-SFP-STACK1.6M), and SFP transceiver modules.  AC input Rated voltage range: 100V to 240V Maximum voltage range: 90V to 264V Frequency: 50/60 Hz Power Supply Rated current: 6.8A...

  • Page 6: Product Appearance

    (W x D x H) ≤5.5 kg (with package) Weight The RG-S2910-24GT4SFP-UP-H switch is a class A product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures. Product Appearance On the front panel, the RG-S2910-24GT4SFP-UP-H Ethernet switch provides 24 10/100/1000Base-T Ethernet ports, 4 SFP ports, and 1 Console port.

  • Page 7: Back Panel

    Current range: 2.5A to 3.5A Heat Dissipation The RG-S2910-24GT4SFP-UP-H adopts turbine fans for heat dissipation, thereby ensuring normal function of the device in the specified environment. 10 cm distance space should be reserved at both sides and the back plane of the cabinet to...
  • Page 8 allow air circulation. It is recommended to clean the device once every 3 months to avoid dust from blocking vents. Figure 1-4 shows the flow scheme of heat dissipation. Figure 1-4 Flow Scheme of Heat Dissipation LEDs Panel Identification State Meaning The switch is not receiving power.
  • Page 9 1000Mbps RJ-45 port Solid green The port is connected at 1000 Mbps. status LED The port is receiving or transmitting traffic at 1000 Blinking green Mbps. Solid yellow The port is connected at 10/100 Mbps. The port is receiving or transmitting traffic at Blinking yellow 10/100 Mbps.
  • Page 10  HVDC input Voltage range: 192V to 290V Current range: 2.5A to 3.5A Supported All the RJ45 ports are PoE-capable. Ports 1-4 are HPoE-capable with the maximum power output of 60W. Ports 5-24 support the maximum power output of 30W. The maximum output power of PoE/PoE+/HPoE is 370W.
  • Page 11 Front Panel Figure 1-6 Front Panel of RG-S2910-24GT4XS-UP-H Note: 1. System status LED 5. PoE Mode Switch-Over Button 2. PoE status LED 6. Console port 3. Copper port status LED 7. 10/100/1000Base-T auto-sensing Ethernet port 4. Fiber port status LED 8.
  • Page 12 Rated voltage range: 100V to 240V Maximum voltage range: 90V to 264V Frequency range: 50/60 Hz Rated current: 6.8A Power cord specification: 10A  HVDC input Voltage range: 192V to 290V Current range: 2.5A to 3.5A Heat Dissipation The RG-S2910-24GT4XS-UP-H adopts turbine fans for heat dissipation, thereby ensuring normal function of the device in the specified environment.
  • Page 13 The system is being initialized. Blinking green Continuous blinking indicates errors. Solid green The switch is operational. Temperature warning Solid yellow Check the working environment of the switch immediately. Solid red The switch is faulty. Solid green Indicates the switching state. PoE status LED Solid yellow Indicates the PoE state.
  • Page 14 1.3 RG-S2910-10GT2SFP-UP-H Technical Specifications Model RG-S2910-10GT2SFP-UP-H Built-in CPU, single-core processor, 400MHz 256M Flash Memory SDRAM DDRIII 512MB Supports 1000base-X only. For details, see Appendix B. Optical Module The supported module type may change at any time. Consult us for the latest information. SFP Port Supports 1000Base-X modules.
  • Page 15 Operating Humidity 10% to 90% Storage Humidity 5% to 95% Speed adjustment and fault alarm Temperature Supported Warning EMCStandards GB9254-2008 Security Standards GB4943-2011 Dimensions 340 mm x 260 mm x 44 mm (W x D x H) ≤4.0 kg (with package) Weight The RG-S2910-10GT2SFP-UP-H switch is a class A product.
  • Page 16 Note: 1. System status LED 7. PoE Mode Switch-Over Button 2. PoE status LED 8. Console port 3. 10/100/1000Base-T auto-sensing Ethernet 9. 10/100/1000Base-T auto-sensing Ethernet port port 10. 1000Base-X SFP port 4. Copper port status LED 11. Reset Button 5. Copper port status LED 6.
  • Page 17  HVDC input Voltage range: 192V to 290V Current range: 0A to 6A Heat Dissipation The RG-S2910-10GT2SFP-UP-H adopts turbine fans for heat dissipation, thereby ensuring normal function of the device in the specified environment. 10 cm distance space should be reserved at both sides and both planes of the cabinet to allow air circulation.
  • Page 18 Temperature warning Solid yellow Check the working environment of the switch immediately. Solid red The switch is faulty. Solid green Indicates the switching state. PoE status LED Solid yellow Indicates the PoE state. The port is not connected. Solid green The port is connected at 1000 Mbps.

  • Page 19: Preparation Before Installation

    2 Preparation before Installation 2.1 Safety Suggestions To avoid personal injury and equipment damage, please carefully read the safety suggestions before you install the RG-S2910-H series switch. The following safety suggestions do not cover all possible dangers. 2.1.1 Installation  Keep the chassis clean and free from any dust.

  • Page 20: Static Discharge Damage Prevention

    2.1.4 Static Discharge Damage Prevention To prevent damage from static electricity, pay attention to the following:  Proper grounding of grounding screws on the back panel of the device. Use of a three-wire single-phase socket with protective earth wire (PE) as the AC power socket. ...
  • Page 21  In an environment with high temperature, the equipment is subject to even greater harm, as its performance may degrade significantly and various hardware faults may occur. Therefore, the ambient temperature and humidity of the RG-S2910-H series must meet the requirements listed in Table 2-1: Table 2-1 Temperature and Humidity Requirements of the RG-S2910-H Series Switch Temperature...

  • Page 22: Lightning Resistance

    Effective grounding of the switch is an important guarantee for lightning protection and interference resistance. Therefore, connect the grounding line of the switch properly. Safety Grounding The equipment using AC power supply must be grounded by using the yellow/green safety grounding cable. Otherwise, when the insulating resistance decreases the power supply and the enclosure in the equipment, electric shock may occur.

  • Page 23: Requirements Of Installation Tools

    This can help to prevent the current of high-voltage lightning from passing the switch directly through the mains supply cable to a certain extent. The lightning line banks are not provided and should be purchased by users as required. For the usage of lightning line banks, refer to their related manuals. 2.2.6 EMI Electro-Magnetic Interference (EMI), from either outside or inside the equipment or application system, affects the system in the conductive ways such as capacitive coupling, inductive coupling, and electromagnetic radiation.

  • Page 24: Product Installation

    3 Product Installation Please ensure that you have carefully read Chapter 2. Make sure that the requirements set forth in Chapter 2 have been met. 3.1 Installation Flowchart 3.2 Confirmations before Installation Before installation, please confirm the following points:  Whether ventilation requirements are met for the switch ...
  • Page 25  Connect the power cables of different colors to the corresponding grounding posts.  Ensure that the interface of the power supply cable is well connected to the power interface of the device. The power cables must be protected using power cable retention clips after they are connected to the device. ...

  • Page 26: Mounting The Switch On The Wall

    Use the supplied M6 screws and cage nuts to securely attach the mounting brackets to the rack, as shown in Figure 3-3. Figure 3-3 3.3.2 Mounting the Switch on the Wall The RG-S2910-H series switch can be mounted on the wall, as shown in the following figure. Attach the mounting brackets to the switch with the supplied screws, as shown in Figure 3-4.

  • Page 27: Mounting The Switch On A Table

    Use the expansion screws to securely attach the mounting brackets on the wall, as shown in Figure 3-5. Figure 3-4 Attaching the Switch on the Wall SUITABLE FOR MOUNTING ON CONCRETE OR OTHER NON-COMBUSTIBLE SURFACE ONLY. 3.3.3 Mounting the Switch on a Table Attach the four rubber feet to the recessed areas on the bottom of the switch, as shown in Figure 3-6.

  • Page 28: Checking After Installation

    Place the switch on the table, as shown in Figure 3-7. Figure 3-7 Mounting the Switch on the Table The device must be installed and operated in the place that can restrict its movement. 3.4 Checking after Installation Before checking the installation, switch off the power supply so as to avoid any personal injury or damage to the component due to connection errors.

  • Page 29: System Debugging

    4 System Debugging 4.1 Establishing the Debugging Environment Establishing the Debugging Environment Connect the PC to the console port of the switch through the console cable, as shown in Figure 4-1. Figure 4-1 Schematic Diagram of the Configuration Environment Connecting the Console Cable ...
  • Page 30 Enter the name of the new connection and click OK, the interface as shown in figure 4-3 is displayed. Choose the serial port used currently in the column [use when connecting]. Figure 4-3 After choosing the serial port, click OK to display the serial port parameter setting interface, set the baud rate to 9600, data bit to 8, parity check to none, stop bit to 1 and flow control to none.

  • Page 31: Startup Check

    After setting the parameters, click OK to enter the hyper terminal interface. 4.2 Startup Check 4.2.1 Checking before the Device is Powered on  The switch is fully grounded.  The power cable is correctly connected.  The power supply voltage complies with the requirement of the switch. ...
  • Page 32  Check whether the service interface forwards data normally.

  • Page 33: Maintenance And Troubleshooting

    5.2 Troubleshooting Common Faults Symptom Possible Causes Solution Forgetting the A password is manually configured but Please contact Ruijie Networks Customer Service management interface it is forgotten. Department for technical support. login password The status indicator is The power supply module does not...
  • Page 34 or outputs illegible configuration software. Check that the parameter configuration of the serial characters. The serial port is not configured port matches that specified in the instructions. correctly. The connected twisted pair cable is The RJ45 port is not in faulty.

  • Page 35: Appendix A Connectors And Connection Media

    Appendix A Connectors and Connection Media 1000BASE-T/100BASE-TX/10BASE-T Ports The 1000BASE-T/100BASE-TX/10BASE-T is a port that supports adaptation of three rates, and automatic MDI/MDIX Crossover at these three rates. The 1000BASE-T complies with IEEE 802.3ab, and uses the cable of 100-ohm Category-5 or Supper Category-5 UTP or STP, which can be up to 100 m.

  • Page 36: Optical Fiber Connection

    Optical Fiber Connection For the optical fiber ports, select single-mode or multiple-mode optical fibers for connection according to the fiber module connected. The connection schematic diagram is shown in Figure A-4: Figure A-4 Optical Fiber Connections...

  • Page 37: Appendix B Mini-Gbic And Spf+ Module

    SFP modules (Mini-GBIC module) and 10G SFP+ modules are available to address the requirements of interface types of switch modules. You can select the Mini-GBIC module to suit your specific needs. The models and technical specifications of some Mini-GBIC and 10G SFP+ modules are listed below. For details, see Ruijie Transceiver Installation and Reference Guide.
  • Page 38 50/125 550m MINI-GBIC-LX-SM1310 9/125 10km GE-eSFP-SX-MM850 62.5/125 275m 50/125 550m GE-eSFP-LX-SM1310 9/125 10km GE-SFP-LX-SM1310 9/125 10km MINI-GBIC-LH40-SM1310 9/125 40km GE-SFP-SX-SM1310-BIDI 50/125 500m GE-SFP-SX-SM1550-BIDI 50/125 500m GE-SFP-LX20-SM1310-BIDI 9/125 20km GE-SFP-LX20-SM1550-BIDI 9/125 20km GE-SFP-LH40-SM1310-BIDI 9/125 40km GE-SFP-LH40-SM1550-BIDI 9/125 40km MINI-GBIC-ZX50-SM1550 9/125 50km MINI-GBIC-ZX80-SM1550 9/125 80km...
  • Page 39 (dBm) XG-SFP-SR-MM850 -7.5 XG-SFP-SR-SM1270-BIDI 1270 XG-SFP-SR-SM1330-BIDI 1270 XG-SFP-LR-SM1270-BIDI 1270 -6.5 -14.4 XG-SFP-LR-SM1330-BIDI 1330 -6.5 -14.4 XG-SFP-LR-SM1310 1310 -8.2 -14.4 XG-SFP-ER-SM1550 1550 -4.7 -11.3 XG-SFP-ZR-SM1550 1550 XS-SFP-SR -7.5 XS-SFP-LR 1310 -8.2 -10.3 Table B-6 SFP+ Module Cabling Specification Modular Cable Interface Model Fiber Type Core Size(μm)
  • Page 40 To keep optical modules clean, please use dust caps when the modules are not connected with fibers. Table B-7 Models and Specifications of Existing 10G SFP+ Cable Modules Conductor Wire Support Module Model Connector Length(m) Diameter (AWG) Data Rate(Gb/s) Type (Yes/No) XG-SFP-CU1M Passive...

  • Page 41: Appendix C Lightning Protection

    Appendix C Lightning Protection Installing AC Power Arrester (lightning protection cable row) The external lightning protection cable row shall be used on the AC power port to prevent the switch from being struck by lightning when the AC power cable is introduced from the outdoor and directly connected to the power port of the switch. The lightning protection cable row is fixed on the cabinet, operating table or the wall in the machine room using the line buttons and screws.
  • Page 42 During the switch usage, the Ethernet port arrester shall be connected to the switch to prevent the switch damage by lightning before the outdoor network cable connects to the switch. Tools: Cross or straight screwdriver, Multimeter, Diagonal pliers Installation Steps: Tear one side of the protection paper for the double-sided adhesive tape and paste the tape to the framework of the Ethernet port arrester.
  • Page 43  Reversed direction of the arrester installation. You shall connect the external network cable to the “IN” end and connect the switch Ethernet port to the “OUT” end.  Poor arrester grounding. The length of the grounding line should be as short as possible to ensure that it is in good contact with the switch grounding terminal.

  • Page 44: Appendix D Cabling Recommendations In Installation

    Appendix D Cabling Recommendations in Installation When RG-S2910-H series switches are installed in standard 19-inch cabinets, the cables are tied in the binding rack on the cabinet by the cabling rack, and top cabling or bottom cabling is adopted according to the actual situation in the equipment room.
  • Page 45  Cables of different types (such as power cords, signal cables, and grounding cables) should be separated in cabling and bundling. When they are close, crossover cabling can be adopted. In the case of parallel cabling, power cords and signal cables should maintain a space equal to or greater than 30 mm. ...
  • Page 46 Figure D-3 Bundling Up Cables (3)  Cables not to be assembled or remaining parts of cables should be folded and placed in a proper position of the cabinet or cabling slot. The proper position indicates a position that will not affect device running or cause device damage or cable damage during commissioning.
  • Page 47  The hard power cable should be fastened by the terminal connection area to prevent stress.  Do not use self-tapping screws to fasten terminals.  Power cables of the same type and in the same cabling direction should be bundled up into cable bunches, with cables in cable bunches clean and straight.

  • Page 48: Appendix E Site Selection

    Appendix E Site Selection  The machine room should be at least 5km away from the heavy pollution source such as the smelter, coal mine and thermal power plant, 3.7km away from the medium pollution source such as the chemical industry, rubber industry and electroplating industry, and 2km away from the light pollution source such as the food manufacturer and leather plant.
