Installation Guide
1.2.2
Product Appearance

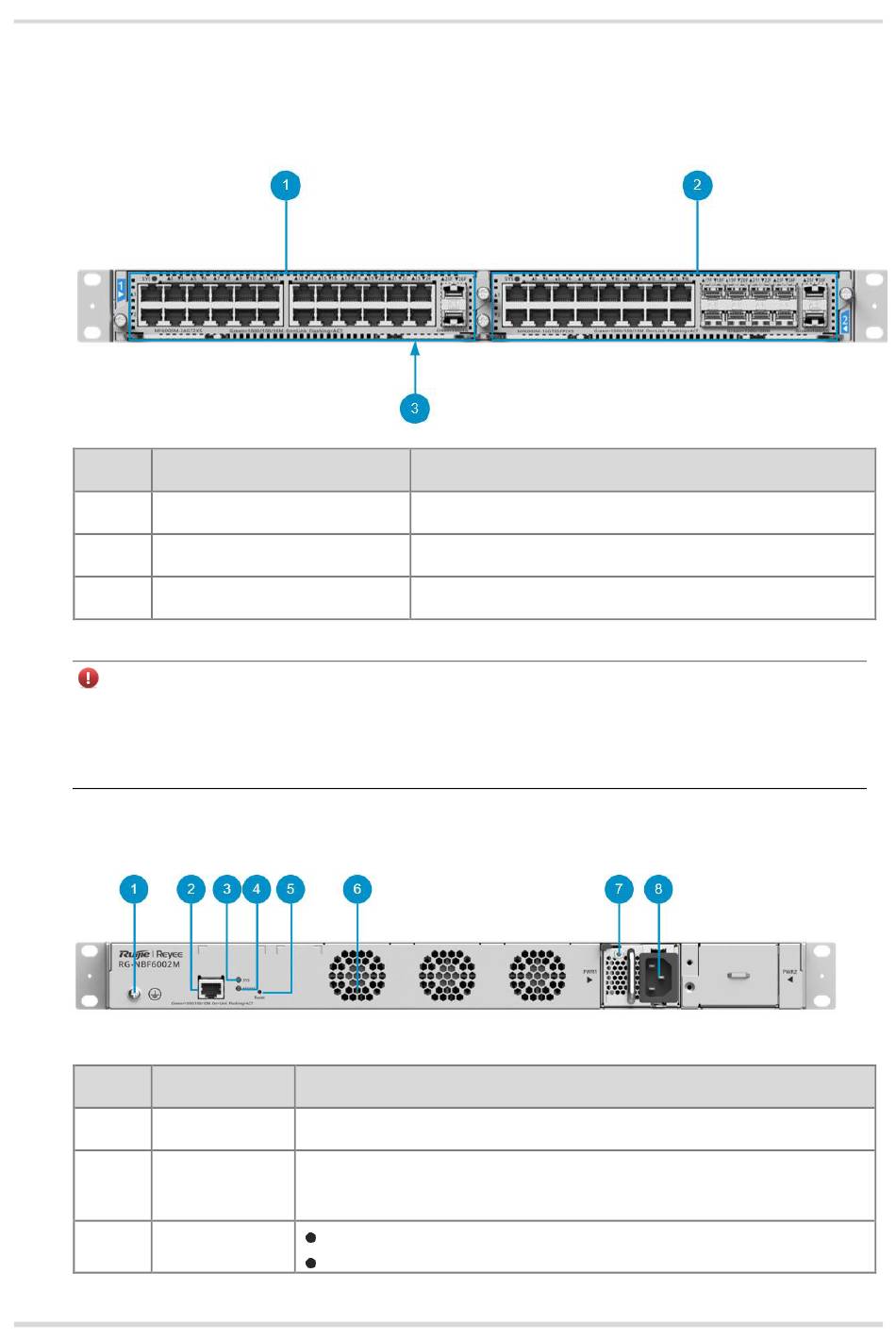

Figure 1-2
Front Panel of the RG-NBF6002M (with MF6000M-24GT2XS and MF6000M-16GT8SFP2XS
Line Cards)
No.
Item
1
Line card slot 1
2
Line card slot 1
3
Label
Warning
Before moving or transporting the chassis of the RG-NBF6002M series switches, remove the line cards and
power modules from the chassis. Do not move or transport the chassis with the line cards and power modules
installed.
Figure 1-3
Rear Panel of the RG-NBF6002M
No.
Item
1
Grounding stud
Management
2
port
System LED
3
Description
For installing a line card.
For installing a line card.
Located at the bottom of the device.
Description
Connects to the grounding cable.
A 10/100/1000BASE-T Ethernet port with an RJ45 connector. Network
management port, for device configuration and firmware upgrade.
Solid green: The device is running properly.
Blinking green (fast blinking: on for 0.0625s and off for 0.0625s): The
3
