7.2 Removing Swappable Interface Modules (Optional)

7.2.1 Removing SFP+/SFP Modules

Take the following steps to remove SFP/SFP+ modules:
1. Unplug the optical fiber.
2. Turn down the handle of the module until it is horizontal. Pull the tab to take out the SFP/SFP+ module, as shown in
figure 7-2.

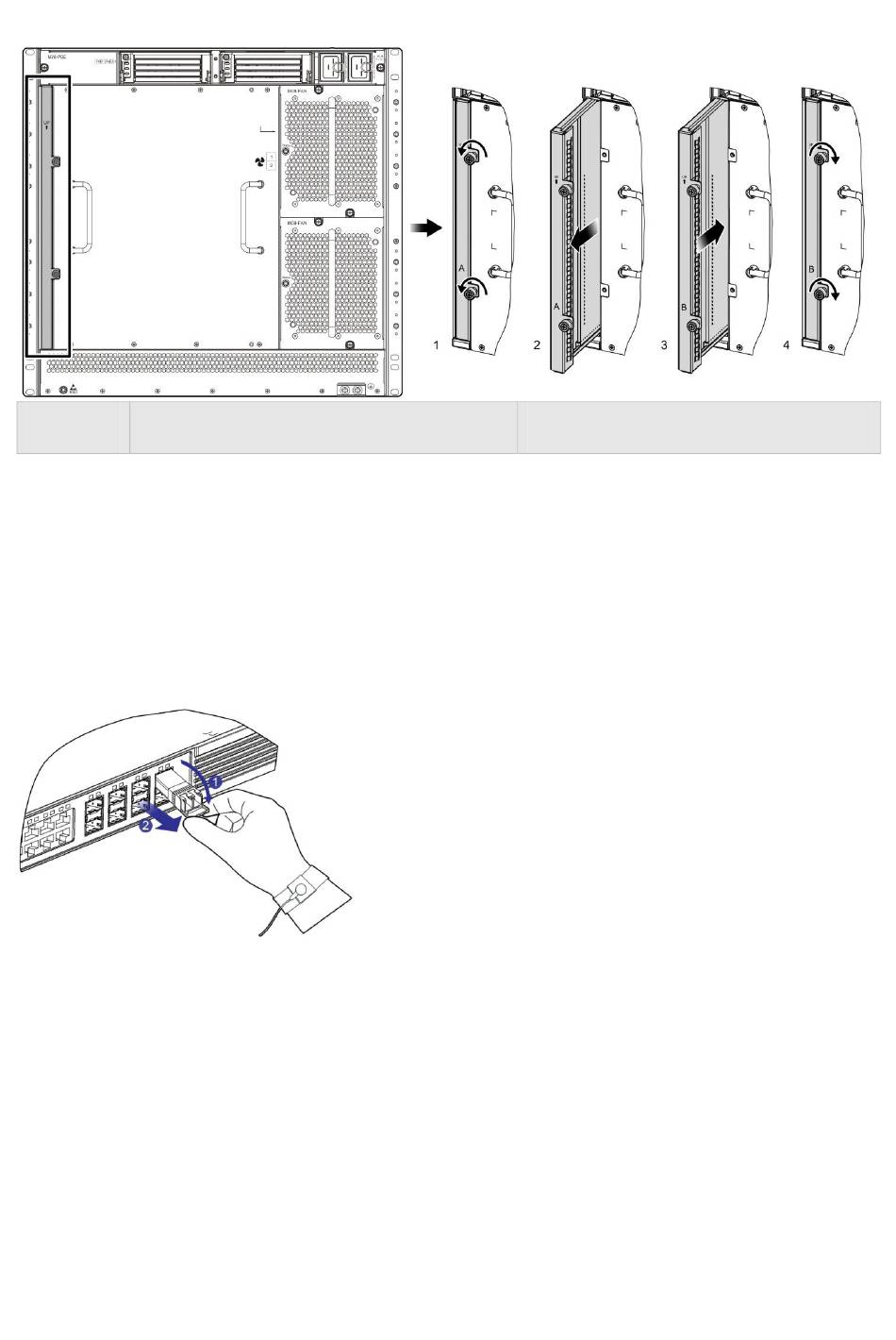

Figure 7-2 Removing the SFP/SFP+ Module
Precaution
Unplug the optical fiber before removing the module.
Do not pull out the module forcefully without turning down the handle of the module.
Immediately install the dust plug to the module port and the switch fiber port.

7.2.2 Removing SFP+ Cables

Pull the tap out and unlock the module. Take out the SFP+ module gently, as shown in figure 7-3
Figure 7-3 Removing the SFP+ Cable
