Setting Terminal Parameters

Start the PC and run the terminal simulation program on the PC, such as Terminal on Windows 3.1 or HyperTerminal
on Windows 95/98/NT/2000/XP.
Set terminal parameters. The parameters are as follows: baud rate 9600, data bit 8, parity check none, stop bit 1,
and flow control as none. Details are as follows:
1. Choose Start > Programs > Accessories > Communications > Hyperterminal. The hyperterminal window appears.

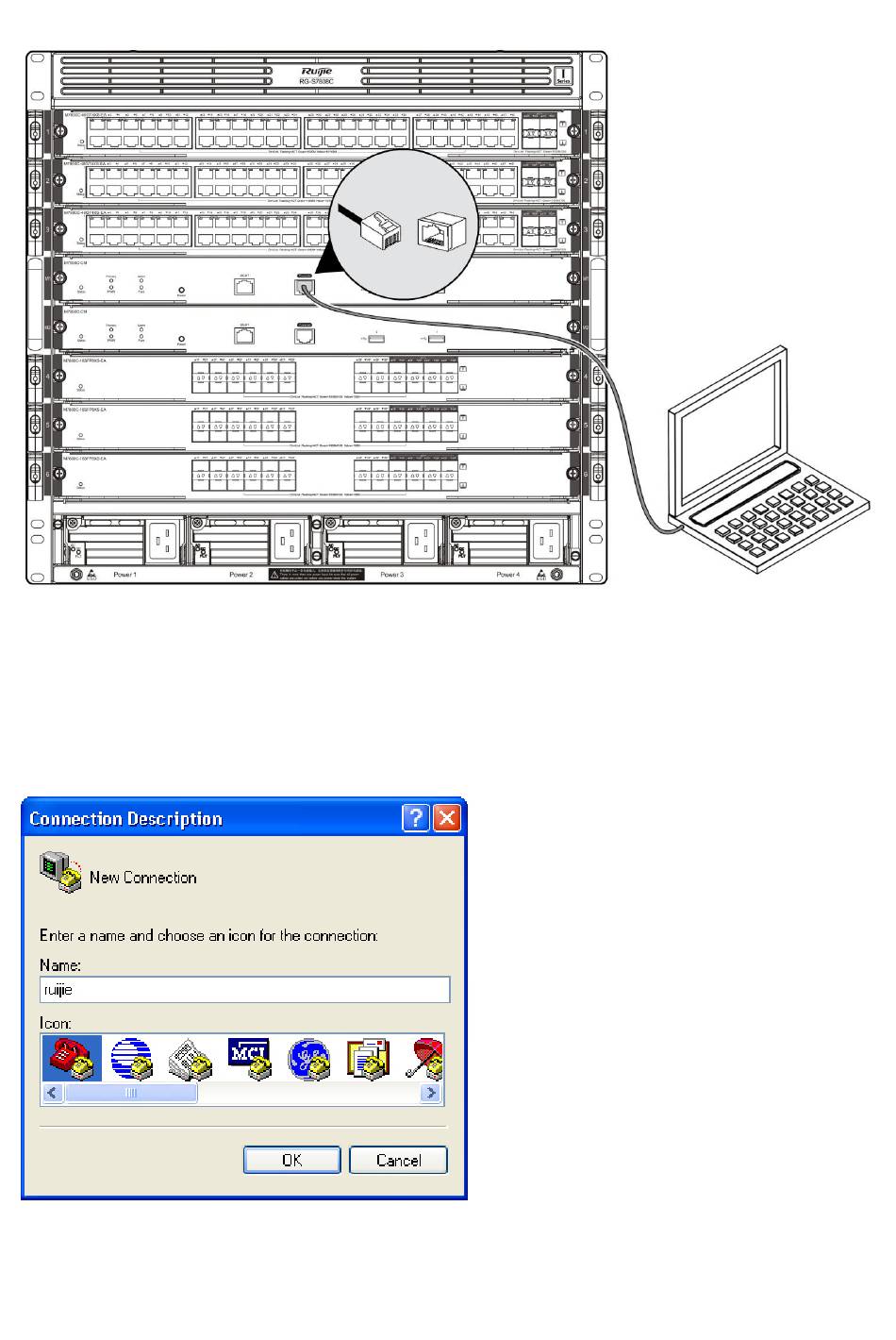

2. Click Cancel. A window appears as shown in Figure 4-2.
Figure 4-2
1. In the Connectivity Note window, type the name of the new connection and click OK. A window appears as shown in
Figure 4-3. In the Connect Using field, select the serial port you want to use.
Figure 4-3
