3.2.2 Installing the Machine Box on the Cabinet

The machine box of the switch is fixed on the cabinet through the brackets. When
you fix the brackets, the front panel of the switch faces forward. The detailed
operations are shown in Figure 3-1.
Caution: The device shown in the above figure does not represent the material
BDCOM S2928E.
After the brackets are installed, install the switch on the cabinet. See Figure 3-2.

3.3 Connecting the Port

3.3.1 Connecting the Console port

The switch of BDCOM S2928E switch has a console port. Its attributes and usage
method are described in this section.
The console port has a baud rate of 9600bps and a standard RJ45 plug, without the
parity check and the flow control. Before configuring and monitoring the switch, you
must connect the console port and the terminal or PC's serial port through specific
console cable and then run the terminal emulation software, such as Windows
super-terminal. The cable is provided according to the host. The communication
parameters of the terminal serial port can be set to a baud rate of 9600bps, eight
data bits, one stop bit, no sum check bit and traffic control.

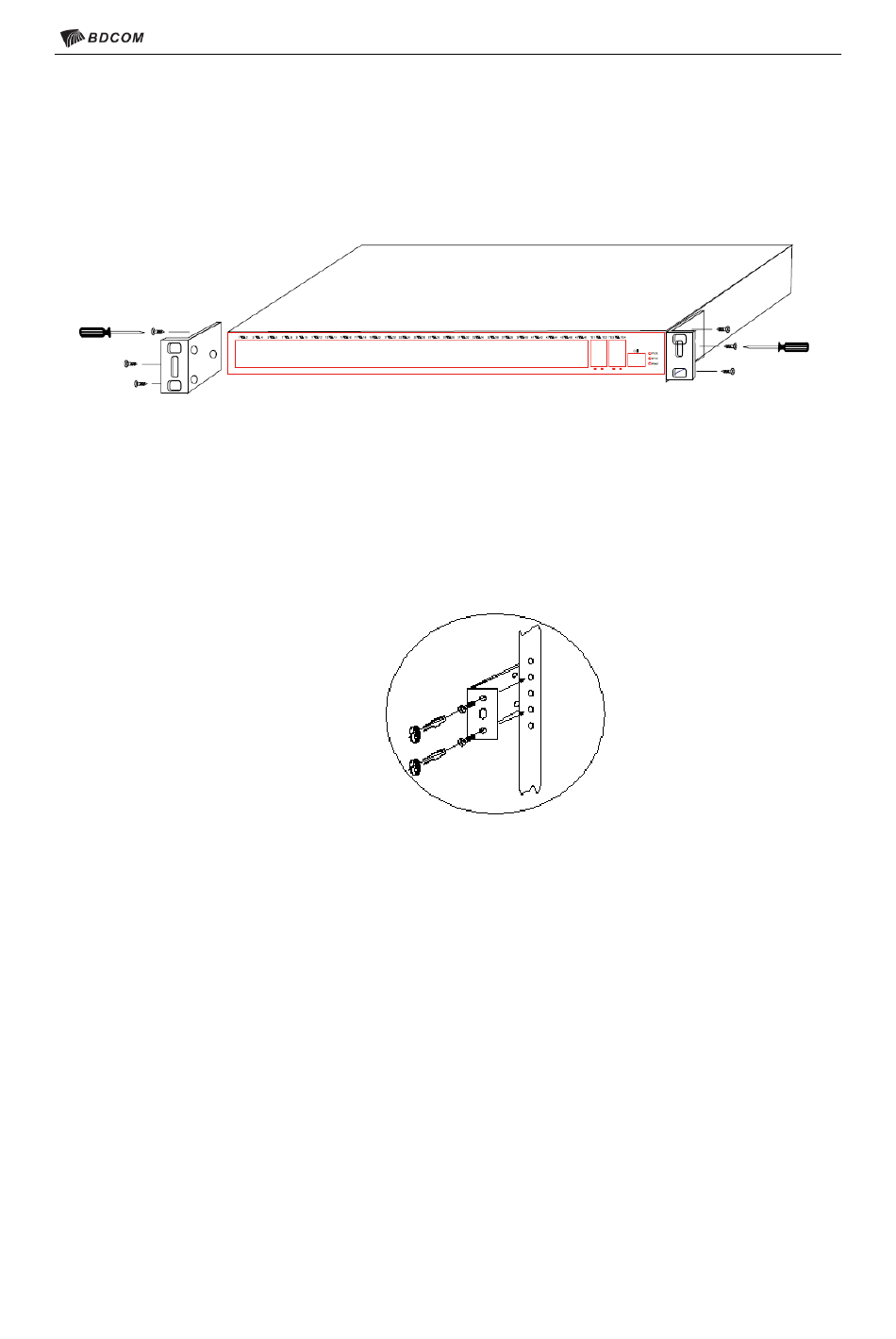

Figure 3-1 Fixing the machine box of the switch
Figure 3-2 Installing the switch on the cabinet
