3.3.2 Connecting 10GE SFP+ Ports

BDCOM S2928E provides with 4 10GE SFP+ ports, which corresponds to TE1~TE4.
You can insert the SFP+ module and then connect it to other Ethernet terminal
devices through the optical fiber if you want to use the 10GE SFP+ port.

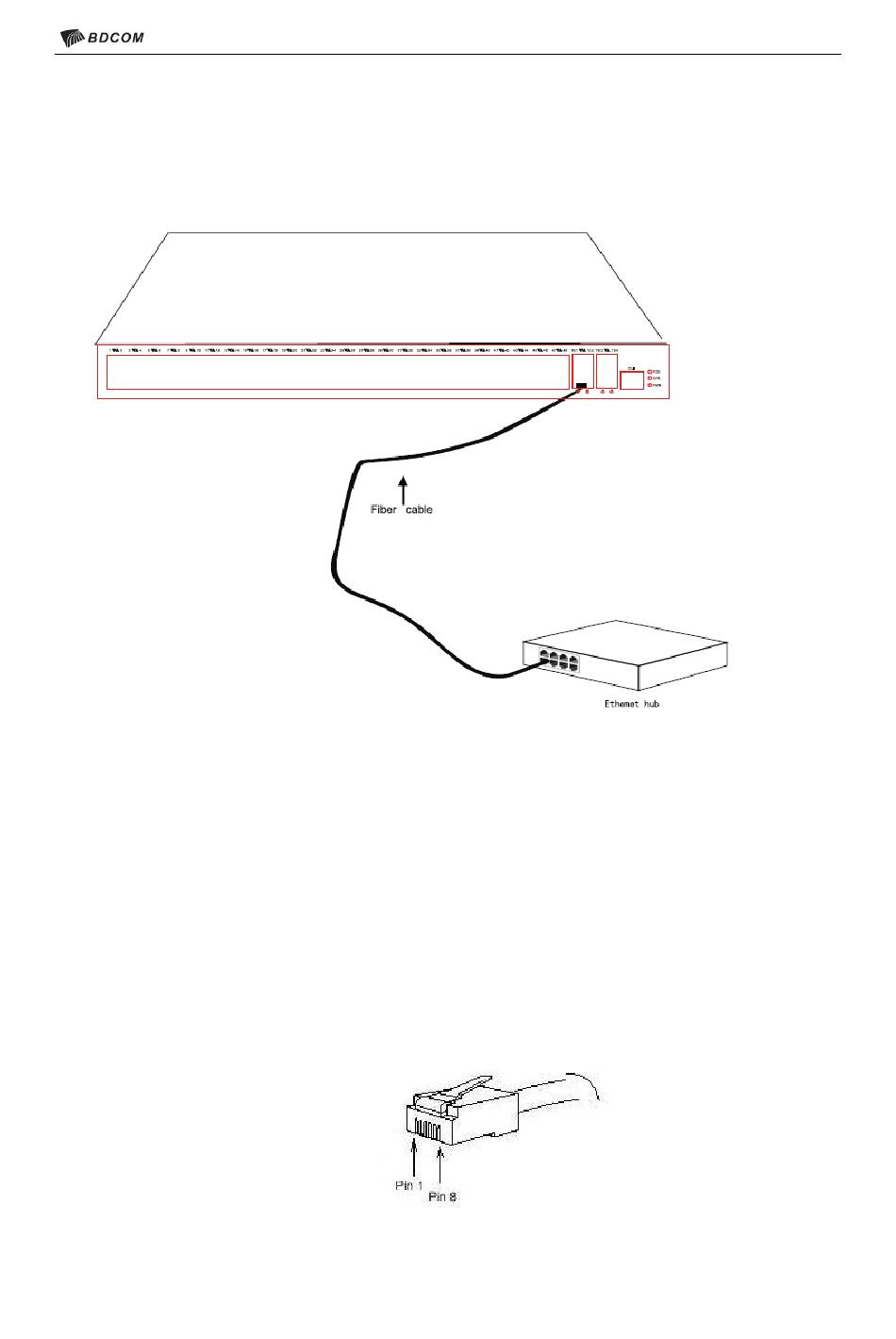

Figure 3-4 Connecting the Ethernet terminal to 10GE SFP+ ports
Caution: The device shown in the above figure does not represent the material
BDCOM S2928E.

3.3.3 Connecting Gigabit TX Ports

The BDCOM S2928E switch has 24 10/100/1000Base-T ports and 24 corresponding
indicators 1~24. You can connect other Ethernet terminal devices to the UTP port
through the cut-through or cross network cable. The numbering order of the pins in
the UTP port is the same as the console port.
Figure 3-5 RJ-45 Connector of the Ethernet TX Port
