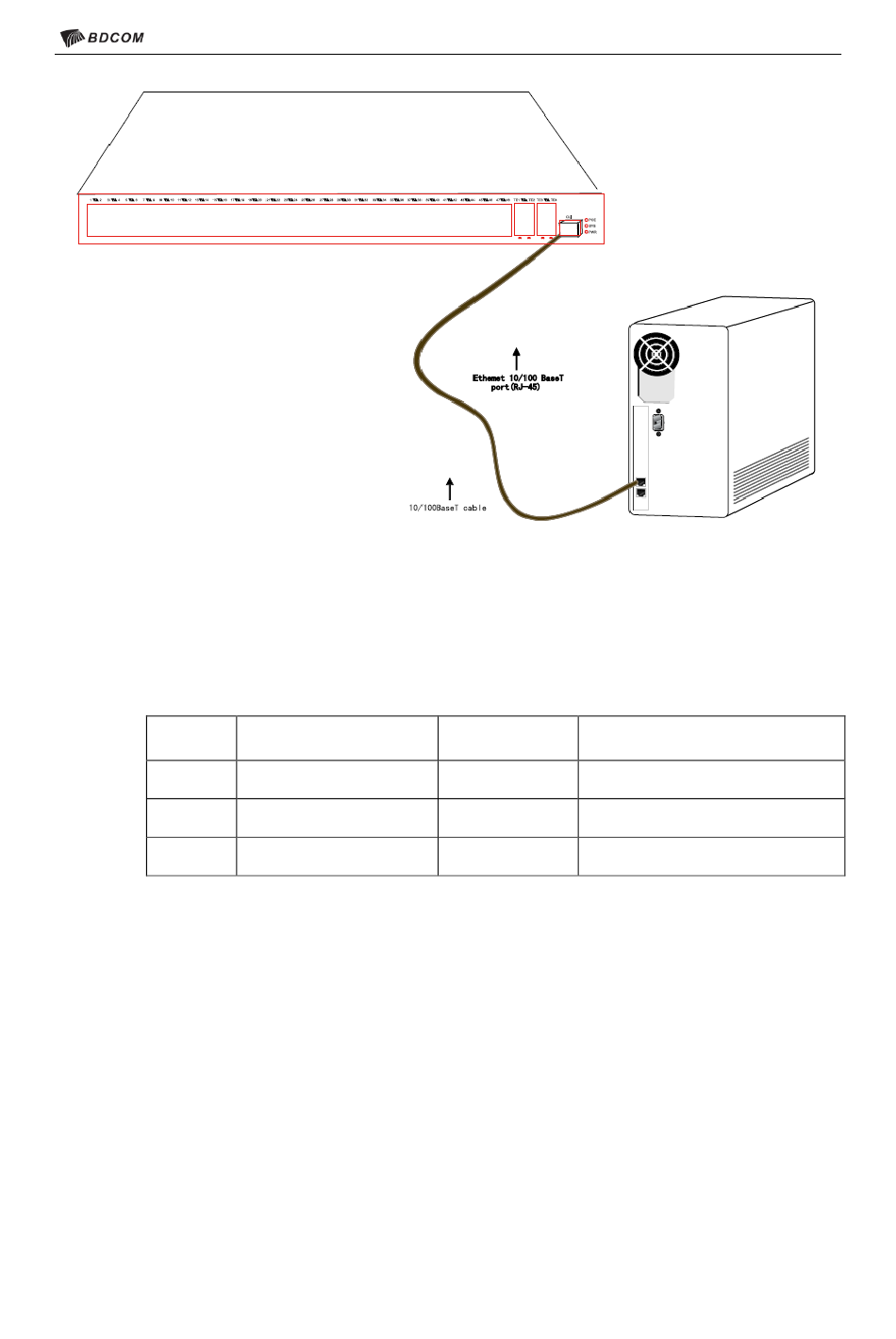

Figure 3-3 Connecting the console port of BDCOM S2928E switch and computer
Caution: The device shown in the above figure does not represent the material
BDCOM S2928E.
3 Forwarding data
4, 5 Signal ground
6 Receiving data
Note:
The console port of BDCOM S2928E does not support traffic control. Therefore, you
must set the option data traffic control to none when you configure the switch with
the super terminal. Otherwise, the single-pass problem will arise on the super
terminal.
The cable is used to connect the console port of the BDCOM S2928E switch and the
outside monitoring terminal device. One end is RJ45 port and the other end is 9-hole
plug (DB9). The plug of RJ45 is inserted into the CLI socket of BDCOM S2928E.
Table 3-1 Pins of the console port
Name Abbreviation
TXD
SG
RXD
BDCOM S2928E Hardware Installation Manual
Output
Input
Remarks
