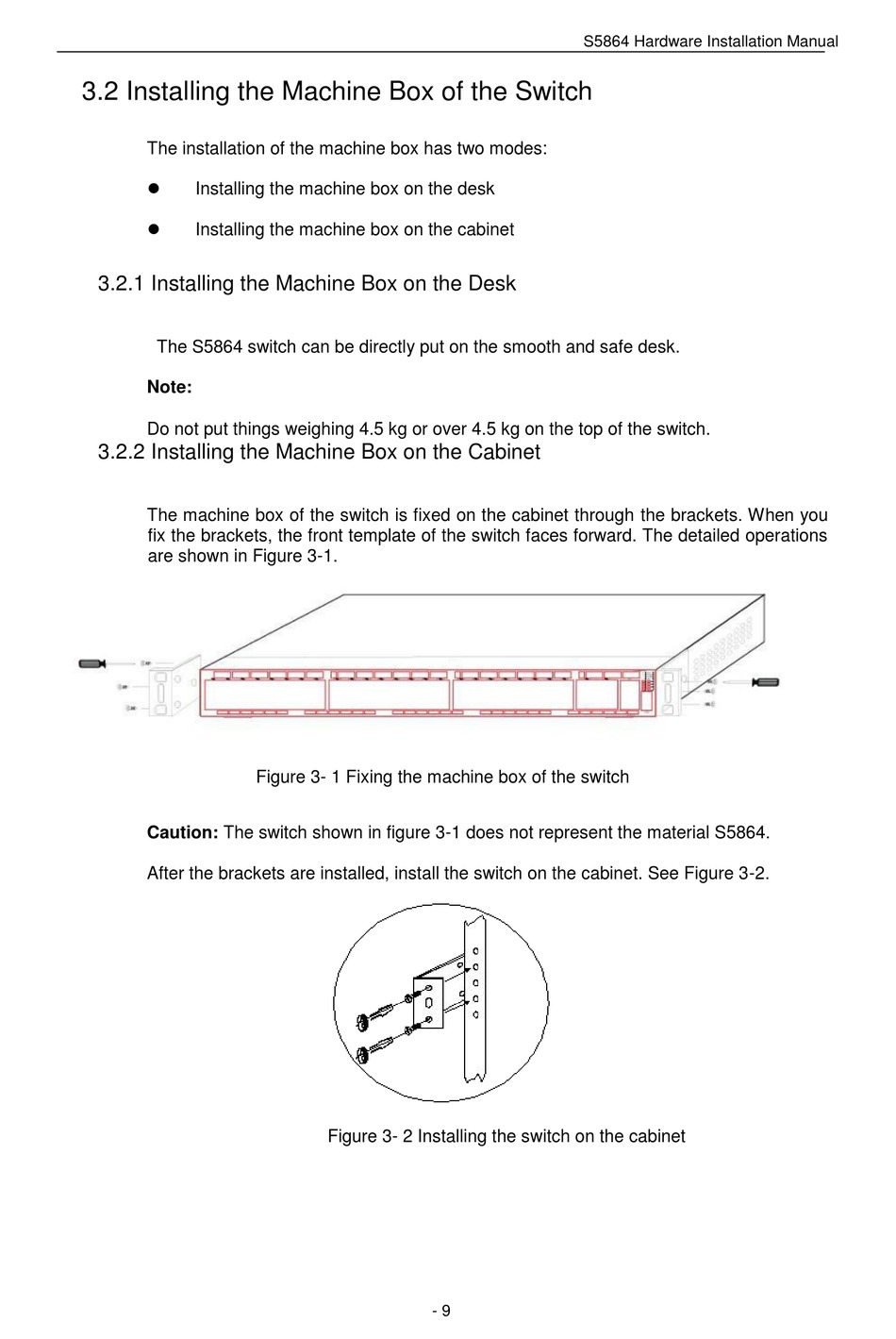

3.2 Installing the Machine Box of the Switch

The installation of the machine box has two modes:


Installing the machine box on the desk



Installing the machine box on the cabinet

3.2.1 Installing the Machine Box on the Desk
The S5864 switch can be directly put on the smooth and safe desk.
Note:
Do not put things weighing 4.5 kg or over 4.5 kg on the top of the switch.
3.2.2 Installing the Machine Box on the Cabinet
The machine box of the switch is fixed on the cabinet through the brackets. When you
fix the brackets, the front template of the switch faces forward. The detailed operations
are shown in Figure 3-1.
Caution: The switch shown in figure 3-1 does not represent the material S5864.
After the brackets are installed, install the switch on the cabinet. See Figure 3-2.
Figure 3- 1 Fixing the machine box of the switch
Figure 3- 2 Installing the switch on the cabinet
