- Page 1 S2510PB Hardware Installation Manual...
-
Page 2: Table Of Contents
2.3.2 Location Configuration Prevention..................7 2.3.3 Cabinet Configuration...................... 7 2.3.4 Power Requirements......................7 2.4 Installation Tools and Device...................... 7 Chapter 3 Installing the S2510PB Switch....................8 3.1 Installation Procedures of S2510PB..................8 3.2 Installing the Chassis of S2510PB.....................8 3.2.1 Installing the Chassis on the Desk..................8 3.2.2 Installing the Chassis on the Cabinet................ -
Page 3: Chapter 1 S2510Pb Switch Overview

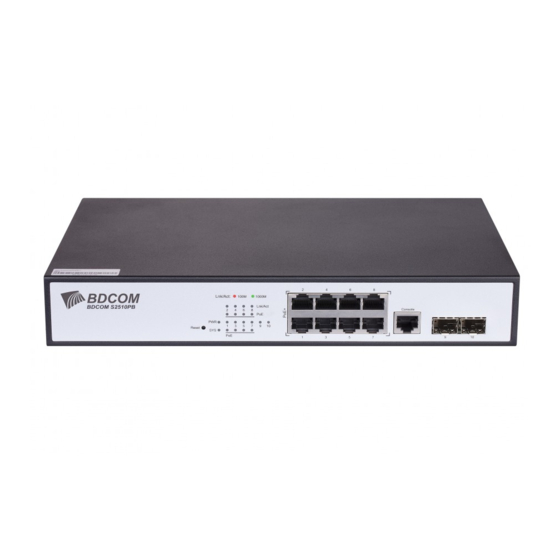

The document describes the characteristics and parameters of S2510PB and gives an overview of S2510PB. 1.1 Standard Configuration S2510PB switch has three parts: 8 IEEE802.3af/at gigabit Ethernet TX ports, 2 gigabit Ethernet SFP ports and 1 Console port. See the following table: Table 1- 1 Attributes of necessary ports... - Page 4 2 SFP ports optical signals. Besides, S2510PB provides with a grounding column, a power socket, and a silent fan. Figure 1- 2 Back template of the S2510PB switch Table 1- 3 Parts at the rear template of the S2510PB switch Abbrev.
-
Page 5: Characteristic Parameters Of S2510Pb
S2510PB Hardware Installation Manual 1.2 Characteristic Parameters of S2510PB IEEE 802.1d Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1q tagged VLAN IEEE 802.3x Flow control Supported standard IEEE 802.3ad Link aggregation IEEE 802.3af Power via Media Dependent Interface Protocol IEEE 802.3at DTE Power Enhancements... -
Page 6: Rohs Description
S2510PB Hardware Installation Manual 1.3 ROHS Description - 4 -... -
Page 7: Chapter 2 Installation Preparation
Similar to other electronic products, the semiconductor chip easily gets damaged if you power on and off abruptly and frequently. To restart up the switch of S2510PB, you have to open the power on-off three or five seconds after the power is cut off. -
Page 8: Electrostatic Discharge Damage Prevention
2.3.1 Environment S2510PB switch adopts the wall-mounted installation mode. The switch has no fan, so an environment with good ventilation is needed for the heat cooling of the switch. For location planning and device locating, refer to section 2.3.2 “Location Configuration Prevention”. -
Page 9: Location Configuration Prevention
2.4 Installation Tools and Device The tools and devices to install the S2510PB switch are not provided by the S2510PB switch. You yourself need to prepare them. The following are the tools and devices needed for the typical installation of the S2510PB switch: ... -
Page 10: Chapter 3 Installing The S2510Pb Switch
Installing the Chassis on the Cabinet 3.2.1 Installing the Chassis on the Desk The S2510PB switch can be directly put on the smooth and safe desk. Note: Do not put things weighing 4.5 kg or over 4.5 kg on the top of the switch. -
Page 11: Connecting The Port
3.3.1 Connecting the Console Port The switch of S2510PB has a Console port. The rate of the console port is a value of 1200bps—115200bps. It has a standard RJ45 plug. After you connect the console port to the serial port of PC through a console cable, you can configure and monitor the switch of S2510PB by running a terminal emulation software, such as super Windows terminal. - Page 12 25-hole plug (DB25) and a 9-hole plug (DB9). The RJ45 plug is put into the socket of the console port on the S2510PB switch. DB25 or DB9 is applied according to the requirement of the terminal serial port. The inner line connection in the cable is shown in Figure 3-5.
-
Page 13: Connecting The Sfp Ports
3.3.2 Connecting the SFP Ports S2510PB provides 2 gigabit SFP optical ports. Each port corresponds to one indicator respectively, which is used for indicating the port Link/ACT state. When the indicator is always on, the link is normal; when it flickers, the data receives and forwards. To use the optical port, you need connect it to the SFP optical module, and then to other Ethernet terminal devices through an optical fiber. -
Page 14: Connecting Gigabit Ethernet Tx Ports
3.3.3 Connecting Gigabit Ethernet TX Ports The S2510PB switch has 8 10/100/1000 Base-TX ports. Each port has one indicator, which indicates the state of Link/ACT. If the indicator is always on, the port is linked up; if the indicator flickers, the data is transmitted on the port. The numbering order of the pins in the UTP port is the same as the console port. -
Page 15: Checkup After Installation
Check whether the connected power supply meets the power requirements of the switch. Check whether the grounding line of S2510PB is correctly connected. Check whether S2510PB is correctly connected to other terminal devices. ... -
Page 16: Chapter 4 S2510Pb Maintenance
Caution: Before opening the chassis, make sure that you have released the static you carried and then turn off the power on-off of S2510PB. Before operating any step in Appendix B, read the section “Safety Advice”. Before performing operations beside the power supply or on the chassis, turn off the power on-off and plug out the power cable. - Page 17 S2510PB Hardware Installation Manual Following the directions shown on the above-mentioned figure, install the cover and bottom of the frame box. Nail the bolt and screw it tightly with the screwdriver. Reinstall the switch on the DIN rail or on the desk.
-
Page 18: Chapter 5 Hardware Fault Analysis
9600 bps, eight data bits, no sum check bit, one stop bit and no traffic control. 5.2 LED Description The LED shows that the switch is running. The following table shows the LEDs of the S2510PB switch and their description: Abbrev. Name Remarks Power LED If the switch is powered, the indicator is on. - Page 19 S2510PB Hardware Installation Manual If the indicator is always on, it means that the connection is linked. LINK/ACT port indicators If the indicator is off, the port is not linked. If the indicator is always on, it means the indicator PoE works.
