Because 24 10/100/1000Base-T ports of BDCOM S2928E support the MDI/MDIX
self-identification of the cable, 2952P can adopt 5-type direct-through/cross network
cables when it connects other Ethernet terminals.

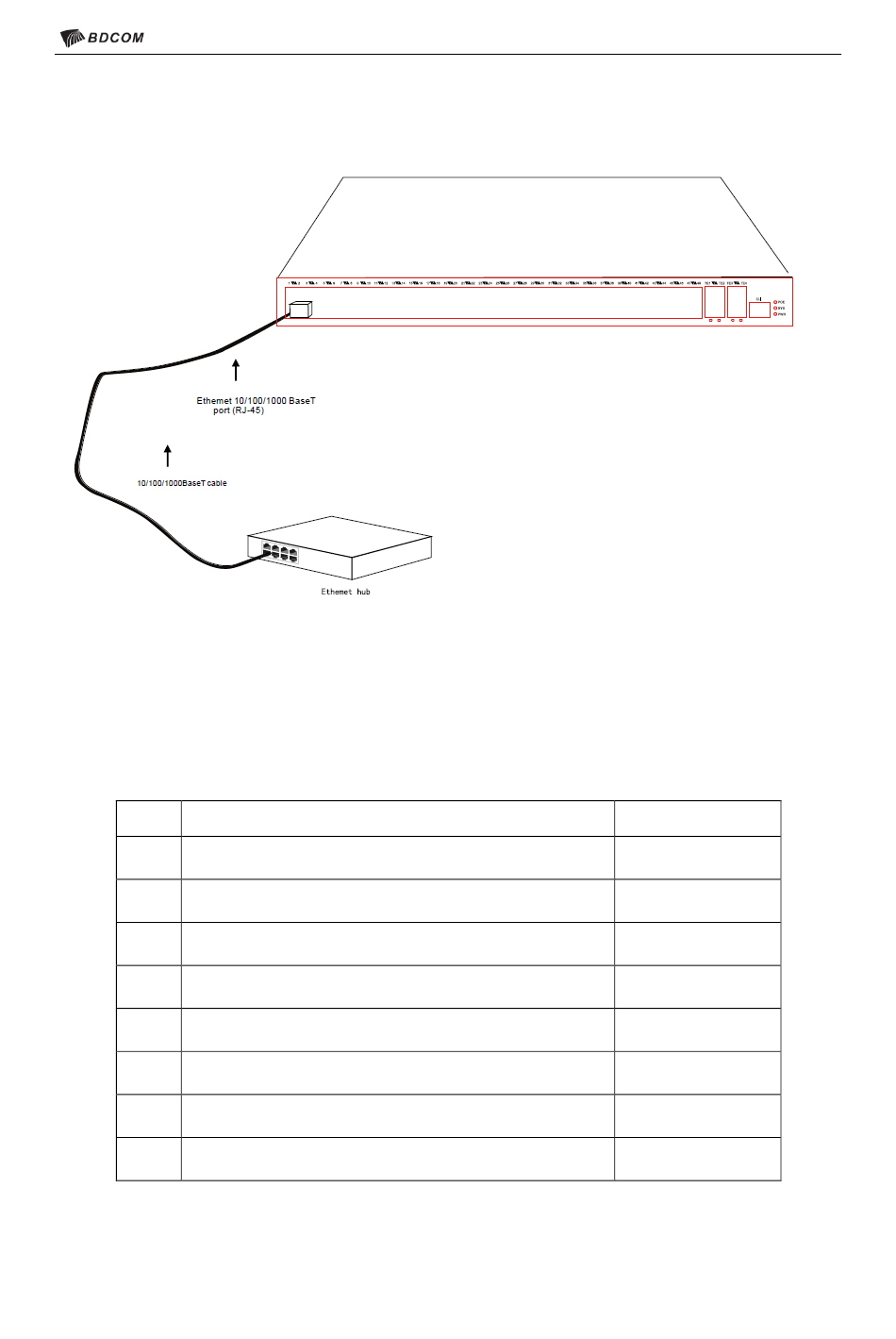

Figure 3-6 1000Base-TX ports connect to other Ethernet terminal devices
Caution: The device shown in the above figure does not represent the material
BDCOM S2928E.
No.
1 Sending/receiving the normal phase of data 0
2 Sending/receiving the paraphase of the data 0
3 Sending/receiving the normal phase of data 1
4 Sending/receiving the normal phase of data 2
5 Sending/receiving the paraphase of the data 2
6 Sending/receiving the paraphase of the data 1
7 Sending/receiving the normal phase of data 3
8 Sending/receiving the paraphase of the data 3
Table 3-2 Pins of gigabit RJ45
Pin Name
BDCOM S2928E Hardware Installation Manual
English Name
TP0+
TP0-
TP1+
TP2+
TP2-
TP1-
TP3+
TP3-
