- Page 1 BDCOM S2510-C Hardware Installation Manual...
-
Page 2: Table Of Contents
Table of Contents Table of Contents Chapter 1 BDCOM S2510-C Introduction....................1 1.1 Appearance Description for Standard Configuration..............1 1.2 BDCOM S2510-C Systematic Characteristic Parameters............2 1.3 ROHS Description...................错误！未定义书签。 Chapter 2 Installation Preparation........................ 4 2.1 Caution of Usage..........................4 2.2 Safety Advice.............................4 2.2.1 Safety Principles........................4... - Page 3 Table of Contents 3.3.3 Connecting Gigabit TX Ports..................... 11 3.4 Checking after Installation......................13 Chapter 4 Maintaining Switch........................14 4.1 Opening the Machine Box......................14 4.2 Closing the Machine Box.......................15 Chapter 5 Hardware Fault Analysis......................16 5.1 Fault Separation..........................16 5.1.1 Faults Relative with Power and Cooling System............16 5.1.2 Faults Relative with Port, Cable and Connection............16 5.2 Indicator Description........................
-
Page 4: Chapter 1 Bdcom S2510-C Introduction

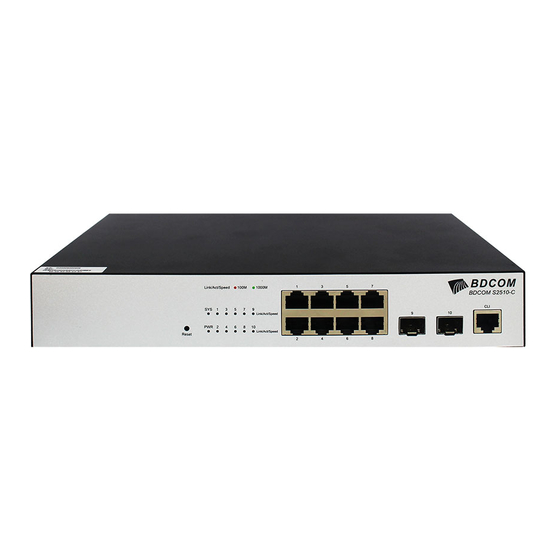

BDCOM S2510-C. 1.1 Appearance Description for Standard Configuration The built-in ports of BDCOM S2510-C are: 8 gigabit TX ports, 2 GSFP and 1 CLI port. See table 1-1. Table 1- 1 Attributes of the built-in port... -
Page 5: Bdcom S2510-C Systematic Characteristic Parameters
It can be used to connect a computer or Console port a terminal for monitoring and configuring the switch. Figure 1- 2 Back template of the BDCOM S2510-C switch Table 1- 3 Parts at the back template of the BDCOM S2510-C switch Abbrev. Name Description Grounding column The grounding must be fine. - Page 6 BDCOM S2510-C Hardware Installation Manual Operating temperature/ 0℃～45℃; 10%～90% non-condensing humidity Storage temperature/ -40℃～70℃; 5%～90% non-condensing humidity Power characteristics input voltage: AC100～240V, input frequency: 50～60Hz Power consumption 7.35W (Max) - 3 -...
-
Page 7: Chapter 2 Installation Preparation
Similar to other electronic products, the semiconductor chip easily gets damaged if you power on or off abruptly and frequently. To restart up the switch of BDCOM S2510-C, you have to open the power on-off after the power is cut down for three to five seconds. -
Page 8: Safety Principles For Live Working
BDCOM S2510-C Hardware Installation Manual Read the installation guide carefully before you operate the system. Only professionals are allowed to install or replace the switch. Pull out the AC power socket and close the direct-current power before ... -
Page 9: Electrostatic Discharge Damage Prevention
BDCOM S2510-C Hardware Installation Manual D. Seek for medical help, or judge the loss and seek for available help. 2.2.4 Electrostatic Discharge Damage Prevention Electrostatic discharge may damage devices and circuits. Improper treatment may cause the switch to malfunction completely or discontinuously. -
Page 10: Power Requirements
2.4 Installation Tools and Device The tools and devices to install the BDCOM S2510-C switch are not provided by the BDCOM S2510-C switch. You yourself need to prepare them. The following are... -
Page 11: Chapter 3 Installing The Bdcom S2510-C Switch
Installing the machine box on the desk Installing the machine box on the cabinet 3.2.1 Installing the Machine Box on the Desk The BDCOM S2510-C switch can be directly put on the smooth and safe desk. Note: - 8 -... -
Page 12: Installing The Machine Box On The Cabinet
The rate of the console port is 9600bps. It has a standard RJ45 plug. After you connect the console port to the serial port of PC through a console cable, you can configure and monitor the switch of BDCOM S2510-C by running the terminal emulation software, such as super Windows terminal. The cable is provided according to the host. - Page 13 RJ45 socket, whose pins can be aligned from left to right with the value from 1 to 8. Figure 3- 3 RJ-45 connector of the console port Figure 3-4 Connecting the Console port and the PC of the BDCOM S2510-C switch Table 3- 1 Pins of the console port Name...
-
Page 14: Connecting Gsfp Ports
BDCOM S2510-C Hardware Installation Manual The cable is used to connect the CLI of the BDCOM S2510-C switch and the outside console terminal device. One end of the cable is a 8-pin RJ45 plug and the other end is a 9-hole plug (DB9). The RJ45 plug is put into the socket of the CLI on the BDCOM S2510-C switch. - Page 15 BDCOM S2510-C Hardware Installation Manual Figure 3-6 RJ-45 connector of the console port Because 8 10/100 Base-T ports of BDCOM S2510-C support the MDI/MDIX auto-identification of the cable, BDCOM S2510-C can adopt five classes of direct-through/cross network cables when it connects other Ethernet terminals.
-
Page 16: Checking After Installation
BDCOM S2510-C Hardware Installation Manual Sending/receiving the paraphase of the data 1 TP1- Sending/receiving the normal phase of data 3 TP3+ Sending/receiving the paraphase of the data 3 TP3- The direct-through or cross network cable has the function of auto-identification, so the five classes of direct-through/cross network cables can be used to connect other Ethernet devices. -
Page 17: Chapter 4 Maintaining Switch
BDCOM S2510-C Hardware Installation Manual Chapter 4 Maintaining Switch Caution: Before opening the machine box, make sure that you have released the static you carried and then turn off the power on-off of the switch. Before operating any step in Appendix B, read the section “Safety Advice”. -
Page 18: Closing The Machine Box
BDCOM S2510-C Hardware Installation Manual When the cover is opened, put it aside. The mainboard of the system appears. Note: After taking off the cover, put it horizontally and avoid it to be crushed or collided. Otherwise, the machine box is hard to install. -
Page 19: Chapter 5 Hardware Fault Analysis
9600 bps, eight data bits, no sum check bit, one stop bit and no traffic control. 5.2 Indicator Description The following table shows the indicators of the BDCOM S2510-C switch and their description: - 16 -... - Page 20 BDCOM S2510-C Hardware Installation Manual Abbrev. Name Description When the indicator is always on, the system is being started System indicator When the indicator flickers, the system works well. When the switch is powered on, Power indicator the indicator is on.
