3.2.1 Installing the Machine Box on the Desk

The S3740 switch can be directly put on the smooth and safe desk.
Note:
Do not put things weighing 4.5 kg or over 4.5 kg on the top of the switch.

3.2.2 Installing the Machine Box on the Cabinet

The machine box of the switch is fixed on the cabinet through the brackets. When you fix
the brackets, the front template of the switch faces forward. The detailed operations are
shown in Figure 3-1.
Caution: The switch shown in figure 3-1 does not represent the material S3740.
After the brackets are installed, install the switch on the cabinet. See Figure 3-2.

3.3 Connecting the Port

3.3.1 Connecting the Console Port

The switch of S3740 has a console port.
The rate of the console port is a value ranging from 1200bps to 115200bps. It has a
standard mini USB plug. After you connect the console port to the serial port of PC through a
console cable, you can configure and monitor the switch of S3740 by running a terminal
emulation software, such as super Windows terminal. The cable is provided according to the

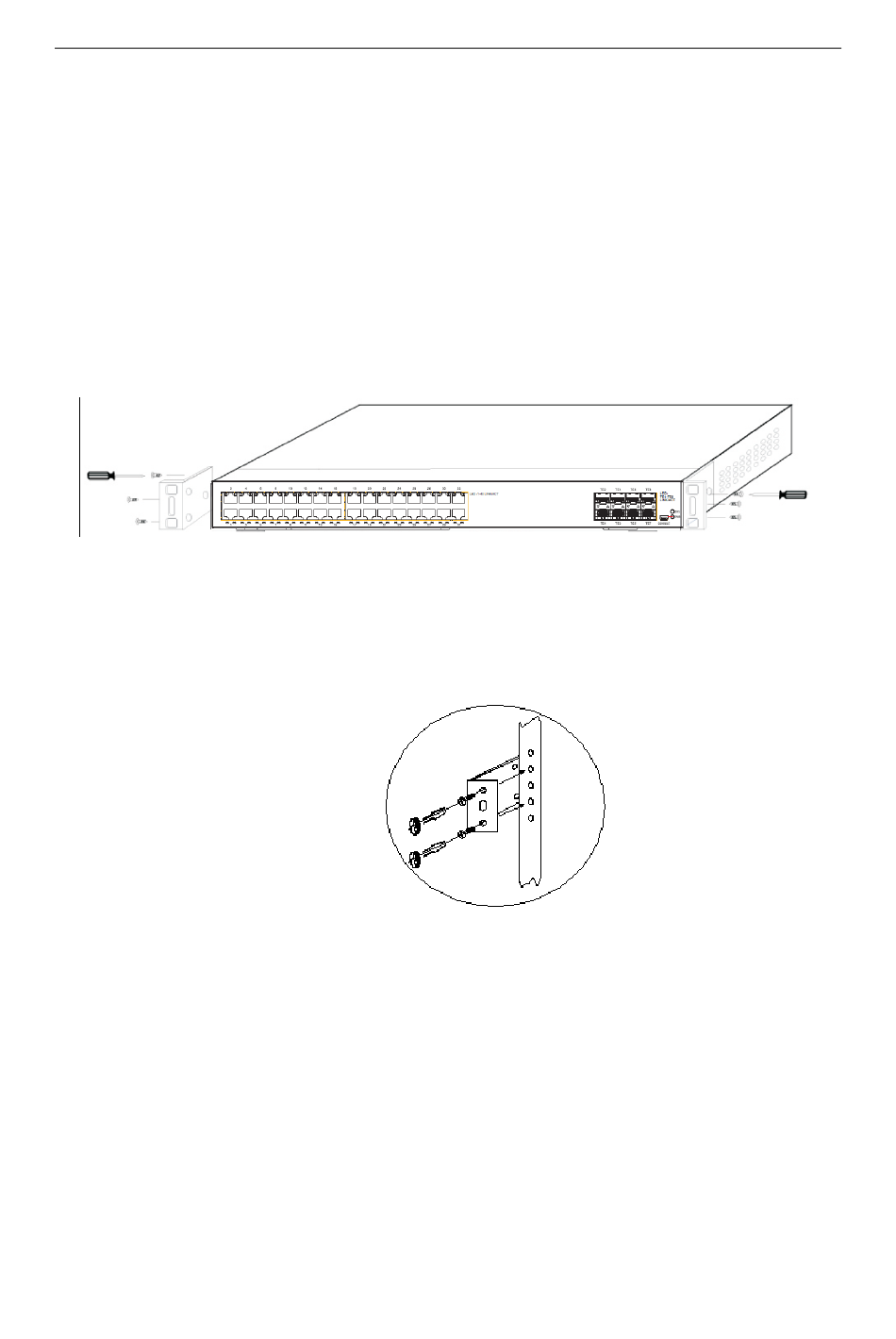

Figure 3-1 Fixing the machine box of the switch
Figure 3-2 Installing the switch on the cabinet
