Do not put things weighing 4.5 kg or over 4.5 kg on the top of the switch.

3.2.2 Installing the Machine Box on the Cabinet

The machine box of the switch is fixed on the cabinet through the brackets. When you fix the
brackets, the front template of the switch faces forward. The detailed operations are shown in
Figure 3-1.
After the brackets are installed, install the switch on the cabinet. See Figure 3-2.

3.3 Connecting the Port

3.3.1 Connecting the Console Port

The switch of S3756P has a console port.
The rate of the console port is a value ranging from 1200bps to 115200bps. It has a standard
mini USB plug. After you connect the console port to the serial port of PC through a console
cable, you can configure and monitor the switch of S3756P by running a terminal emulation
software, such as super Windows terminal. The cable is provided according to the host. The
communication parameters of the terminal serial port can be set to a rate of 9600bps, eight data
bits, one stop bit, no sum check bit and traffic control.

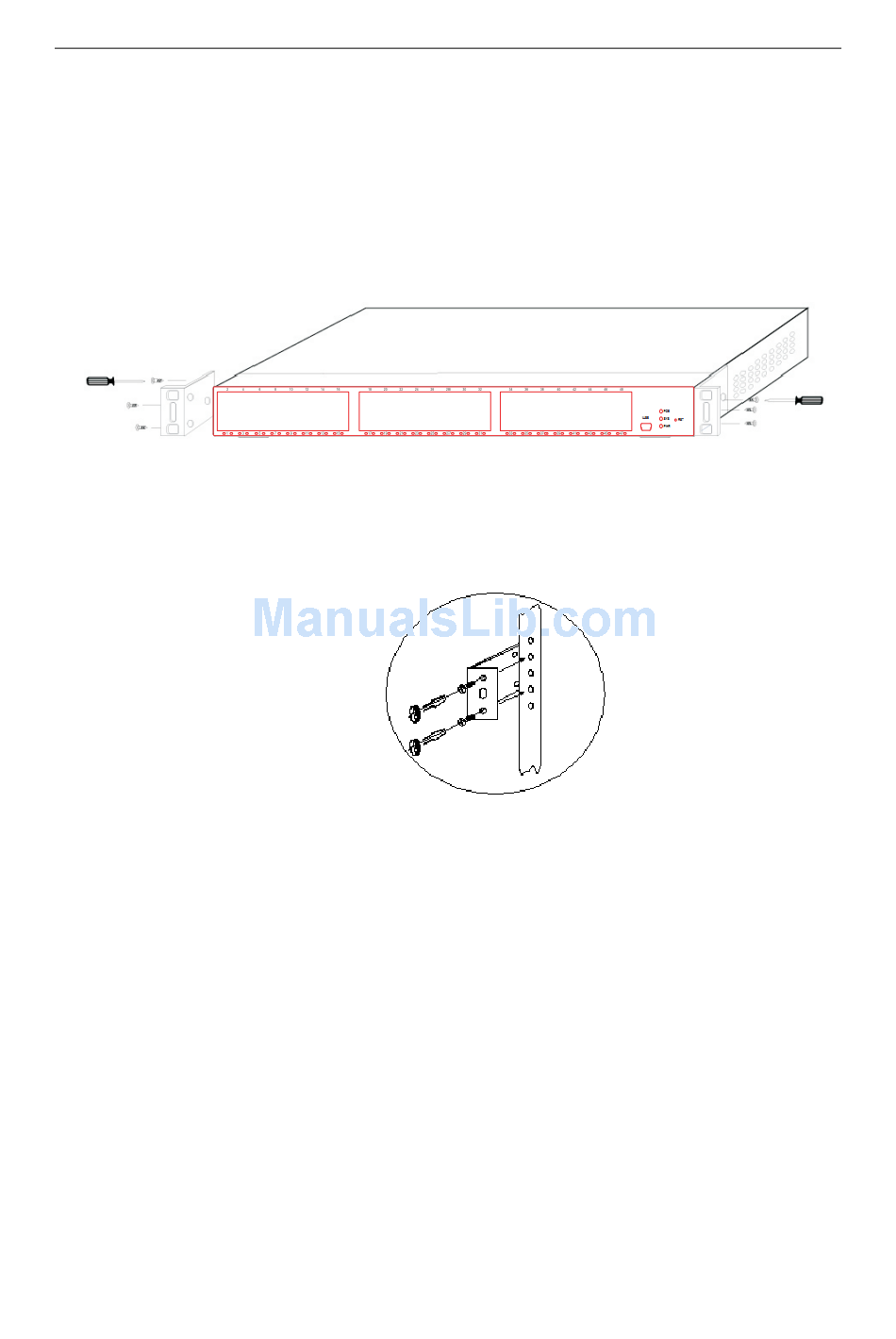

Figure 3-1 Fixing the machine box of the switch
Figure 3-2 Installing the switch on the cabinet
