Chapter 1 BDCOM S2928E Introduction

The section describes the characteristics and parameters of BDCOM S2928E and
gives an overview of BDCOM S2928E.

1.1 Appearance Description for Standard Configuration

The built-in ports of BDCOM S2928E are: 24 gigabit RJ45 ports, 4 10GE SFP+ ports,
1 console port. See table 1-1.
Port
Gigabit Ethernet port
10GE port
Console port
Besides, BDCOM S2928E switch has a grounding column, an AC power socket, a
power on-off at its back.

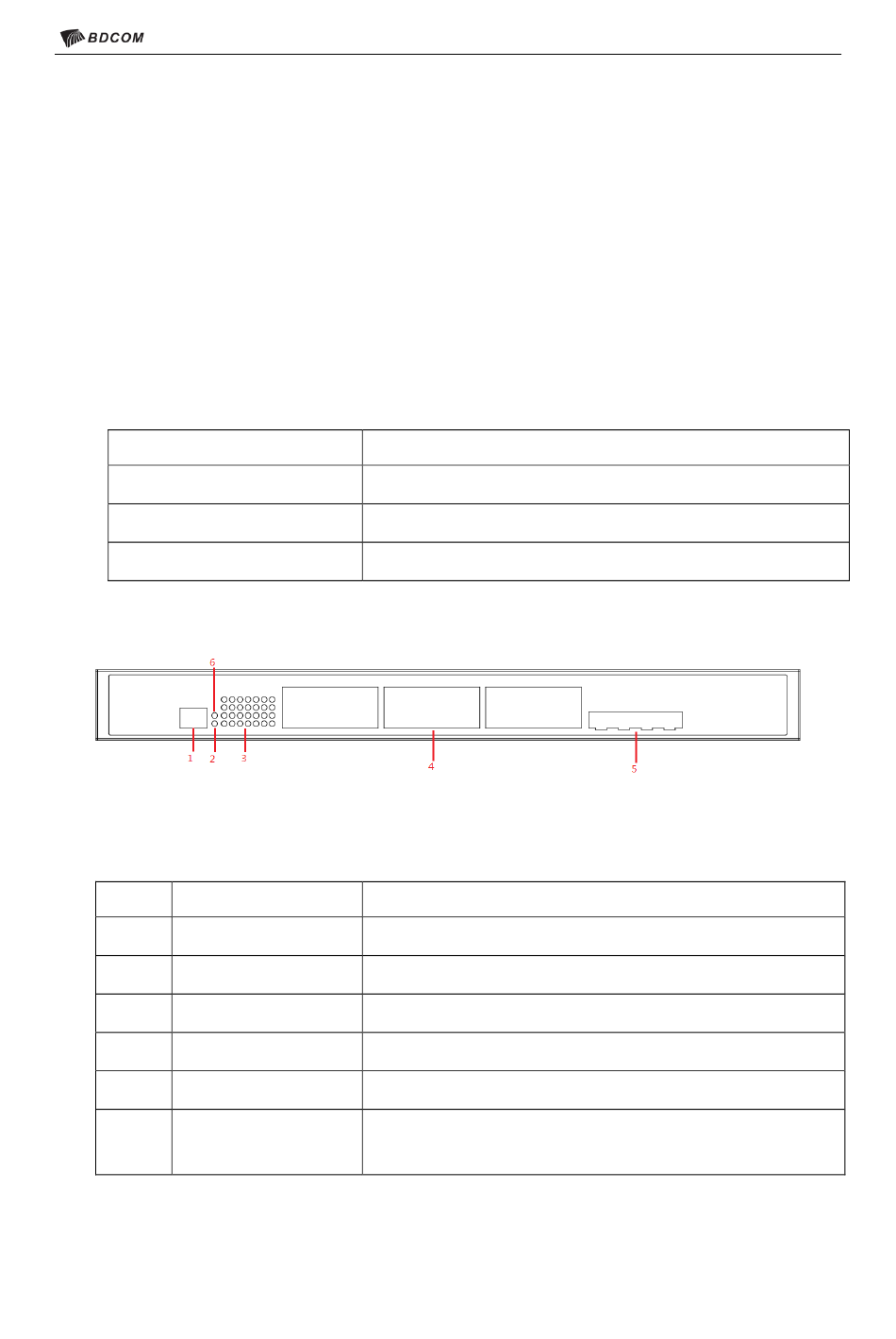

Figure 1-1 Front panel of the BDCOM S2928E switch
Table 1-2 Parts at the front panel of the BDCOM S2928E switch
No. Name
1 Console port
2 PWR LED
3 ACT LED
4 Gigabit Ethernet port
5 10GE port
6 SYS LED
Table 1-1 Attributes of the built-in port
RJ45 interface, LINK/ACT indicators
SFP+ port, LINK/ACT indicators
A baud rate of 9600bps, RJ45 interface
A baud rate of 9600bps, CLI interface
If the switch is powered on, the PWR indicator is on.
LINK/ACT
RJ45 interface
SFP+ port
If the system is started normally, the SYS indicator
flickers.
