FMS-2000C

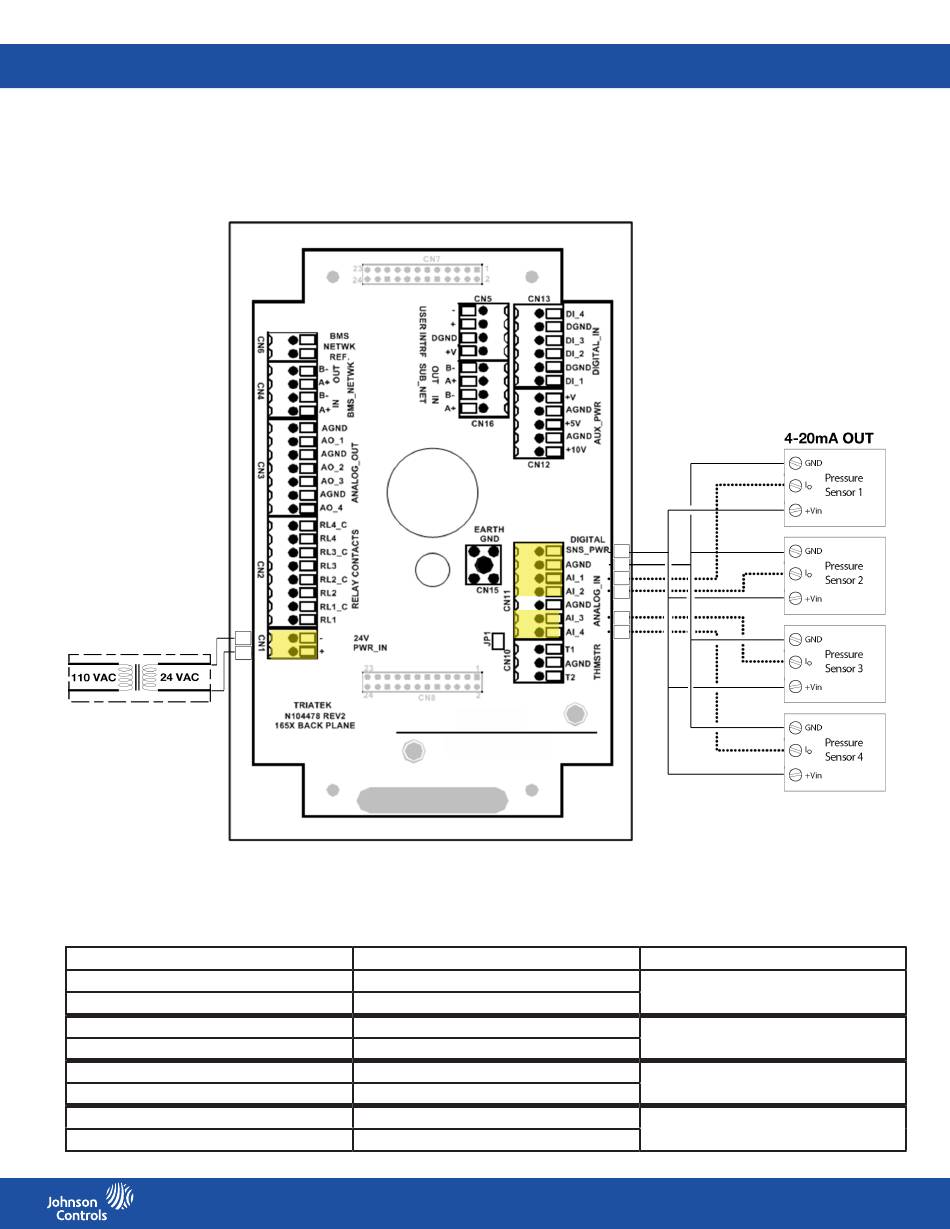

Figure 18: Wiring the analog input to four remote pressure sensors with a 4 mA to 20 mA output signal
Step Down
Isolation Transformer
Table 11: Controller configuration DIP switch settings
DIP switch
S1 position 1
S1 position 5
S1 position 2
S1 position 6
S1 position 3
S1 position 7
S1 position 4
S1 position 8
ON or OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
24
Input or output configuration
AI-1 set as 4 mA to 20 mA input
AI-2 set as 4 mA to 20 mA input
AI-3 set as 4 mA to 20 mA input
AI-4 set as 4 mA to 20 mA input
LIT-12013508
