FMS-2000C
Wiring the analog output to a pneumatic damper actuator

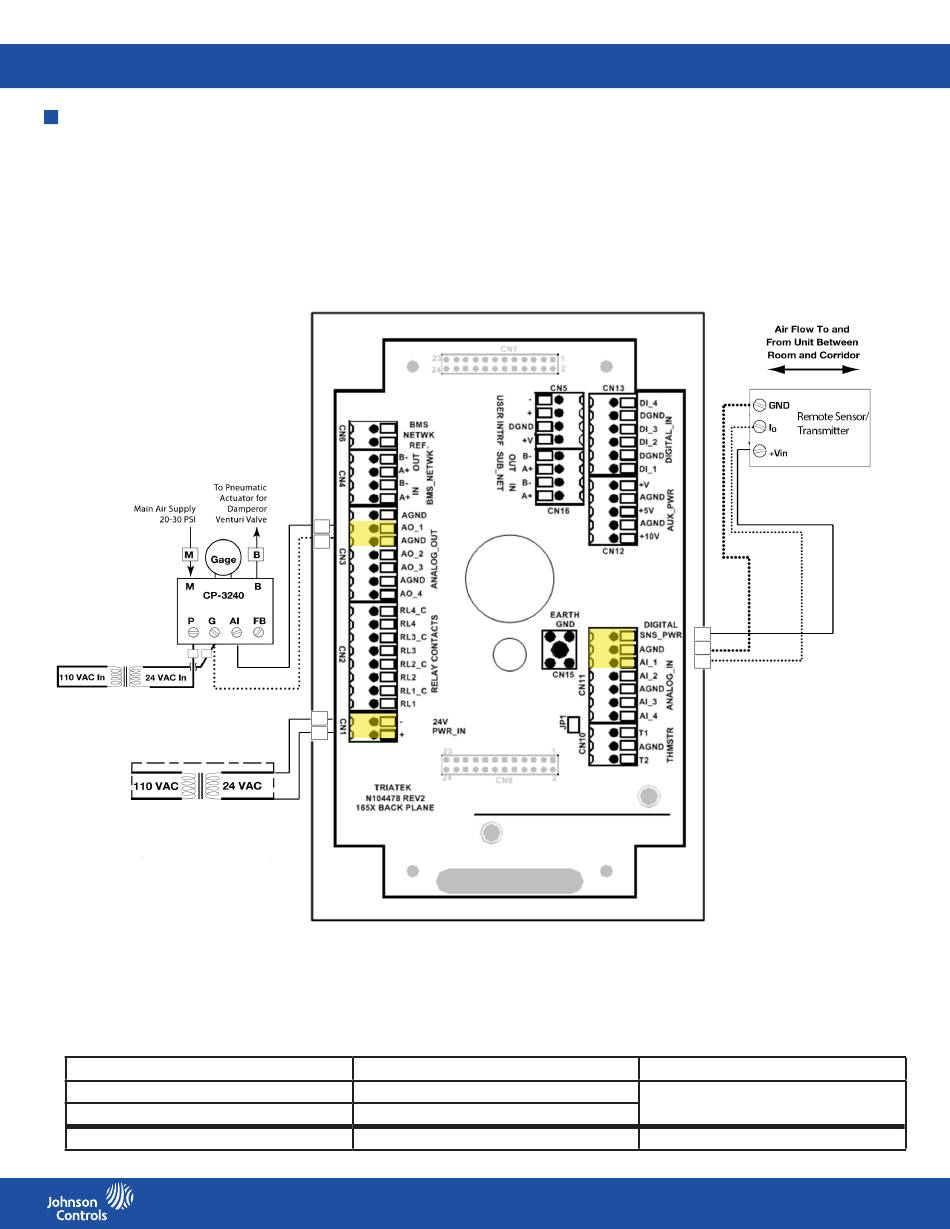

Figure 13: Pneumatic damper actuator wiring diagram
Step Down
Isolation Transformer
Table 6: Controller configuration DIP switch settings
DIP switch
S1 position 1
S1 position 5
S4 position 1
ON or OFF
ON
OFF
ON
19
Input or output configuration
AI-1 set as 4 mA to 20 mA input
AO-1 set as voltage output
LIT-12013508
