FX30E/FX60E Supervisory Controllers Installation
Instructions
FX30E/FX60E
Application
The FX30E and FX60E are web-based supervisory class
controllers in the Facility Explorer product family. The
FX30E/FX60E manages networks of field controllers
using open communication protocols, such as N2,
L
W
®, and BACnet® protocols.
ON
ORKS

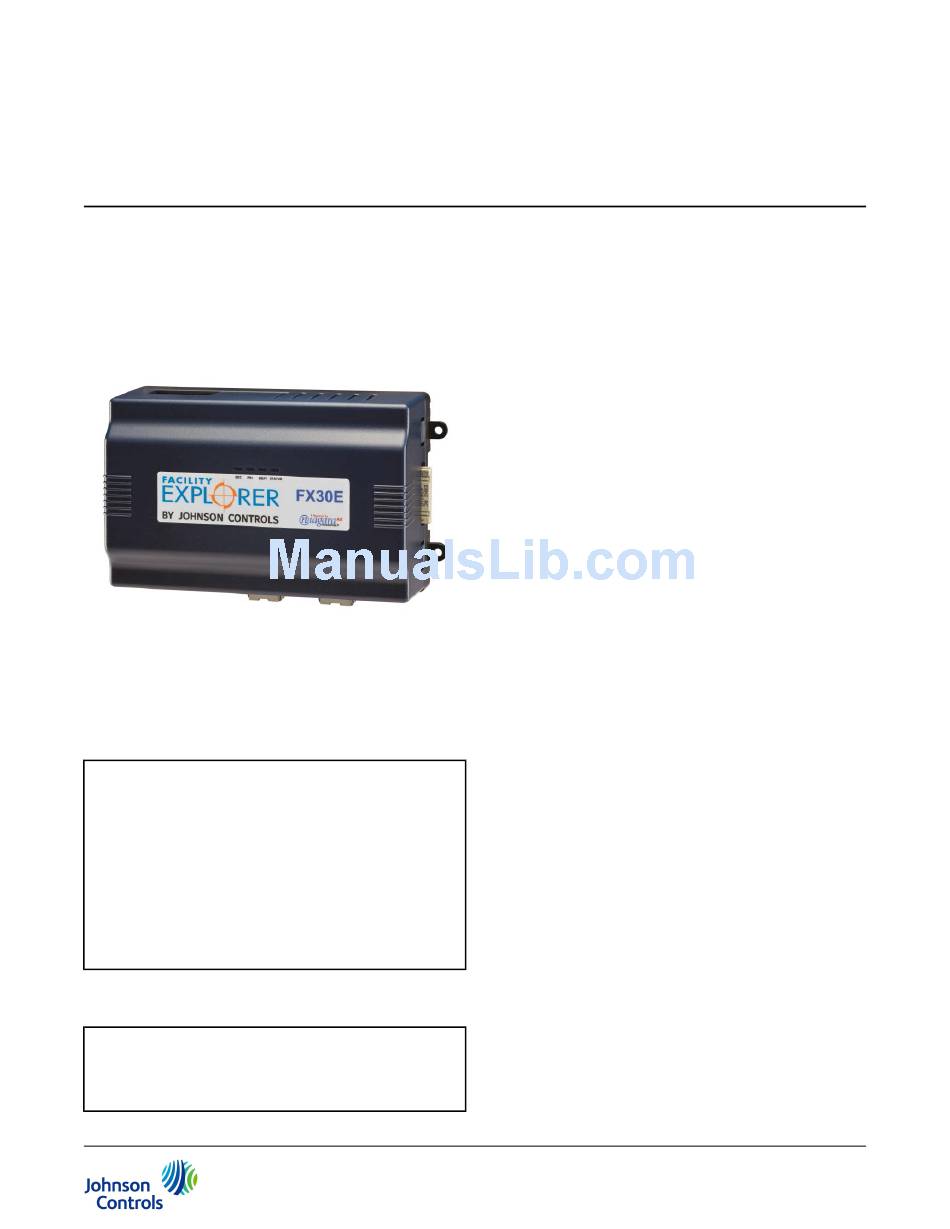

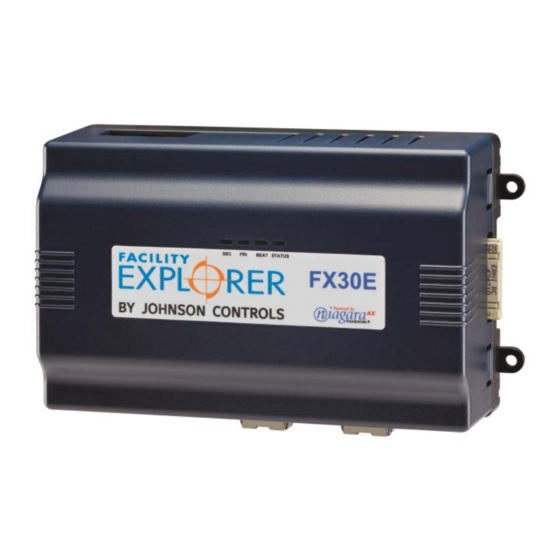

Figure 1: FX30E Supervisory Controller
North American Emissions
Compliance
United States
This equipment has been tested and found to comply with the
limits for a Class A digital device pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when this equipment
is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential
area may cause harmful interference, in which case the users
will be required to correct the interference at their own
expense.
Canada
This Class (A) digital apparatus meets all the requirements of
the Canadian Interference-Causing Equipment Regulations.
Cet appareil numérique de la Classe (A) respecte toutes les
exigences du Règlement sur le matériel brouilleur du Canada.
FX30E/FX60E Supervisory Controllers Installation Instructions
Part No. 24-10174-115, Rev. D
Refer to the
QuickLIT Web site
Installation
Parts Included
Unpack the FX30E/FX60E and accessories (power
module, option cards), if ordered. Inspect the contents of
the packages for damaged or missing components. If
damaged, notify the appropriate carrier and return any
damaged components for repair or replacement.
Included in this package are the following items:
FX Supervisory Series controller
Hardware bag containing a grounding wire with quick
disconnect 0.187 in. (4.75 mm) female connector.
Power module (if ordered). The power module may
be one of the following:
-
LP-FXPM24-0 (24 VAC, DIN rail mountable)
-
LP-FXPM263-0 (90-263 VAC, DIN rail mountable)
-
LP-FXPMUS-0 (90-240 VAC, with U.S. wall
adapter)
-
LP-FXPMEU-0 (90-240 VAC, with European wall
adapter)
-
LP-FXPMUK-0 (90-240 VAC, with U.K. wall
adapter)
Communication cards (if ordered):
-
LP-FXLONFTT-1
-
LP-FXRS232-0
-
LP-FXRS485-0
-
LP-FXWTC-0
Expansion Input/Output (NDIO) Modules (if ordered)
-
LP-FXNDIO16-0
-
LP-FXNDIO34-0
Issued July 16, 2015
for the most up-to-date version of this document.
