FMS-2000C

Wiring the relay output 2

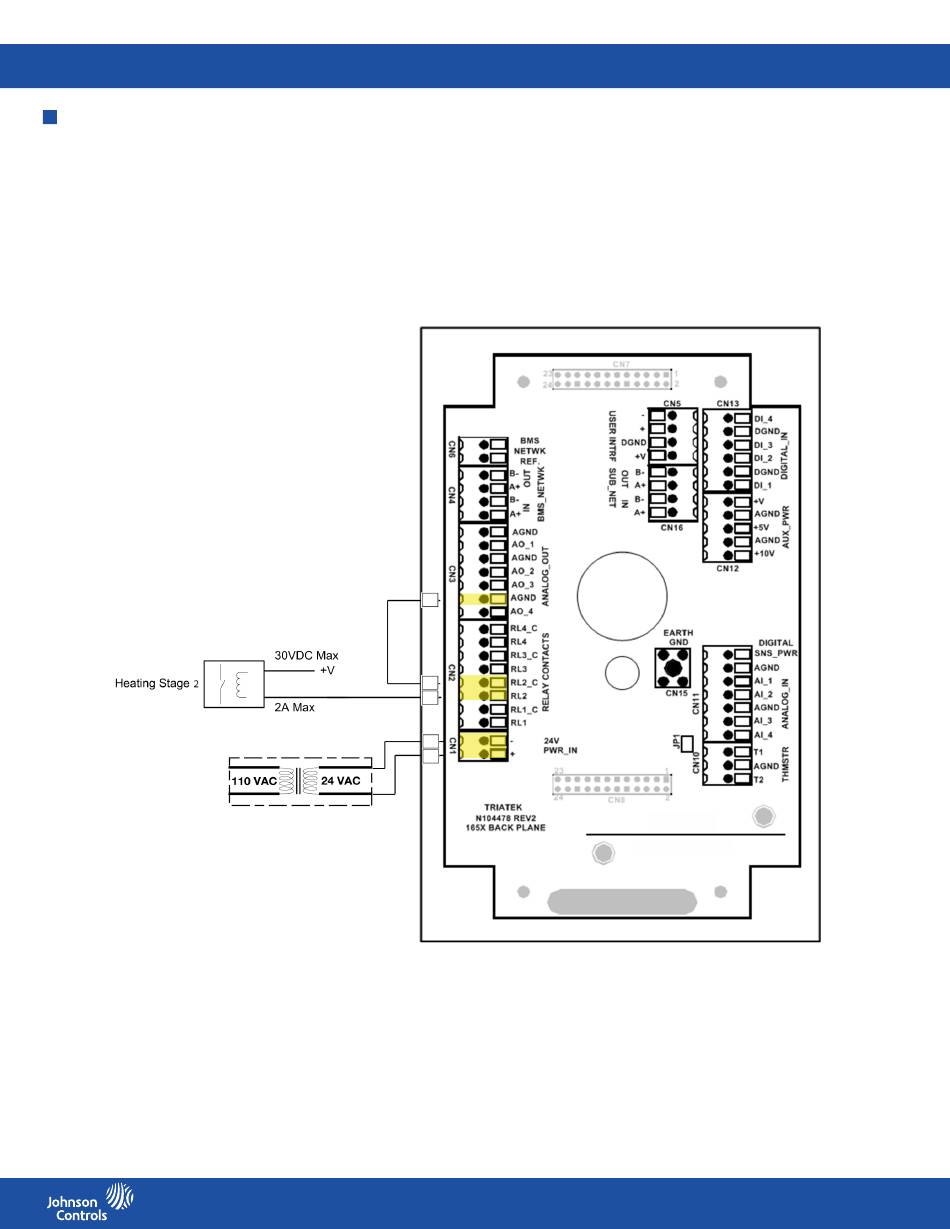

Figure 28: Relay output 2 wiring diagram

Note: The above example associates heating state 2 with contacts RL2 and RL2_C for illustrative purposes only. Any of the four relays

and the corresponding relay C can be used.

Step Down

Isolation Transformer

LIT-12013508
