FMS-2000C

Wiring diagrams guide

Table 4: Symbols for wiring diagrams
Symbol
NC
Note: Use this wiring diagrams guide for all of the following wiring diagrams.

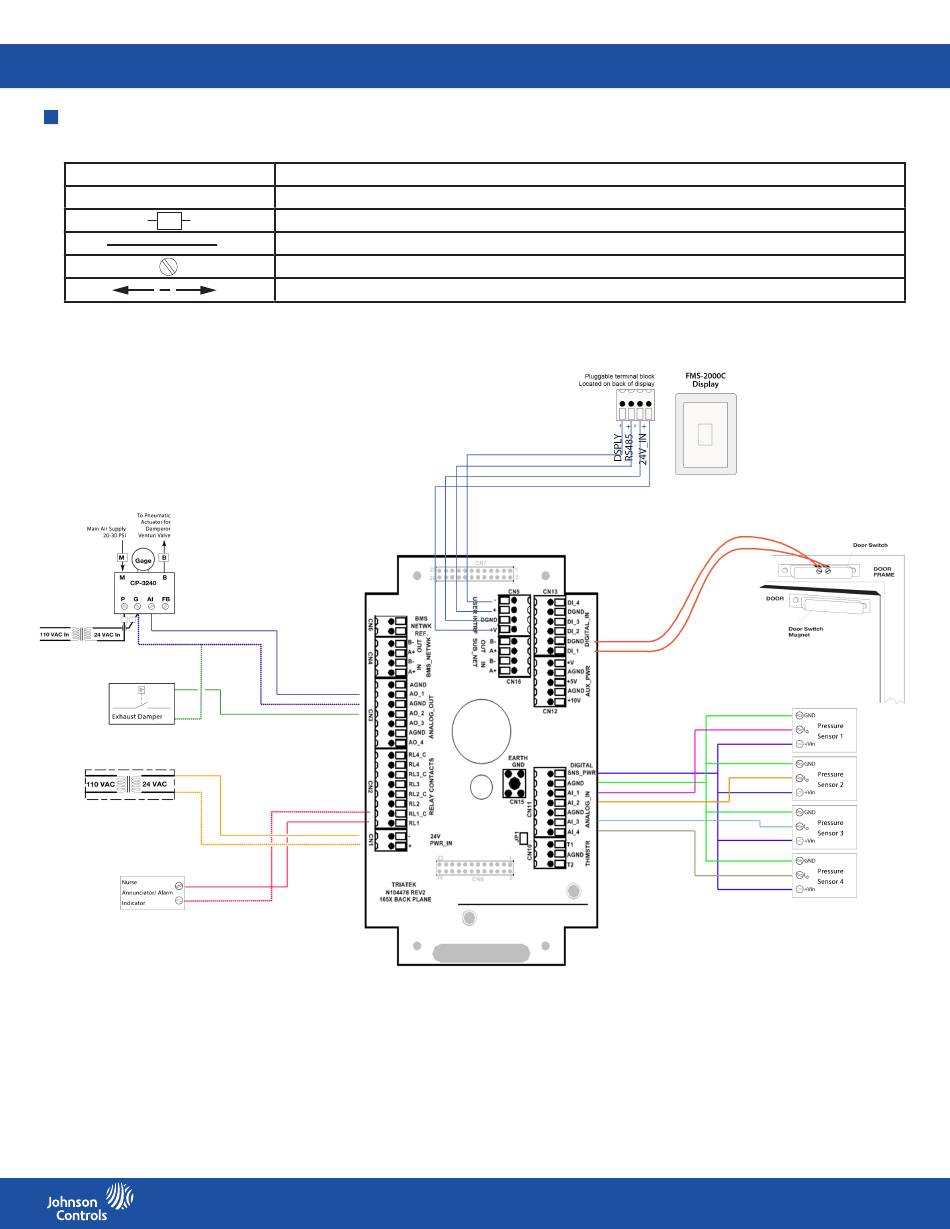

Figure 9: Back plane wiring diagram located on the interior back housing of the controller
Step Down
Isolation Transformer
No connection to field wiring
Field wiring with space for number
Internal wiring
Screw terminal
Air flow to and from unit between room and corridor
Description
15
LIT-12013508
