FMS-2000C

Wiring the analog input for precision temperature

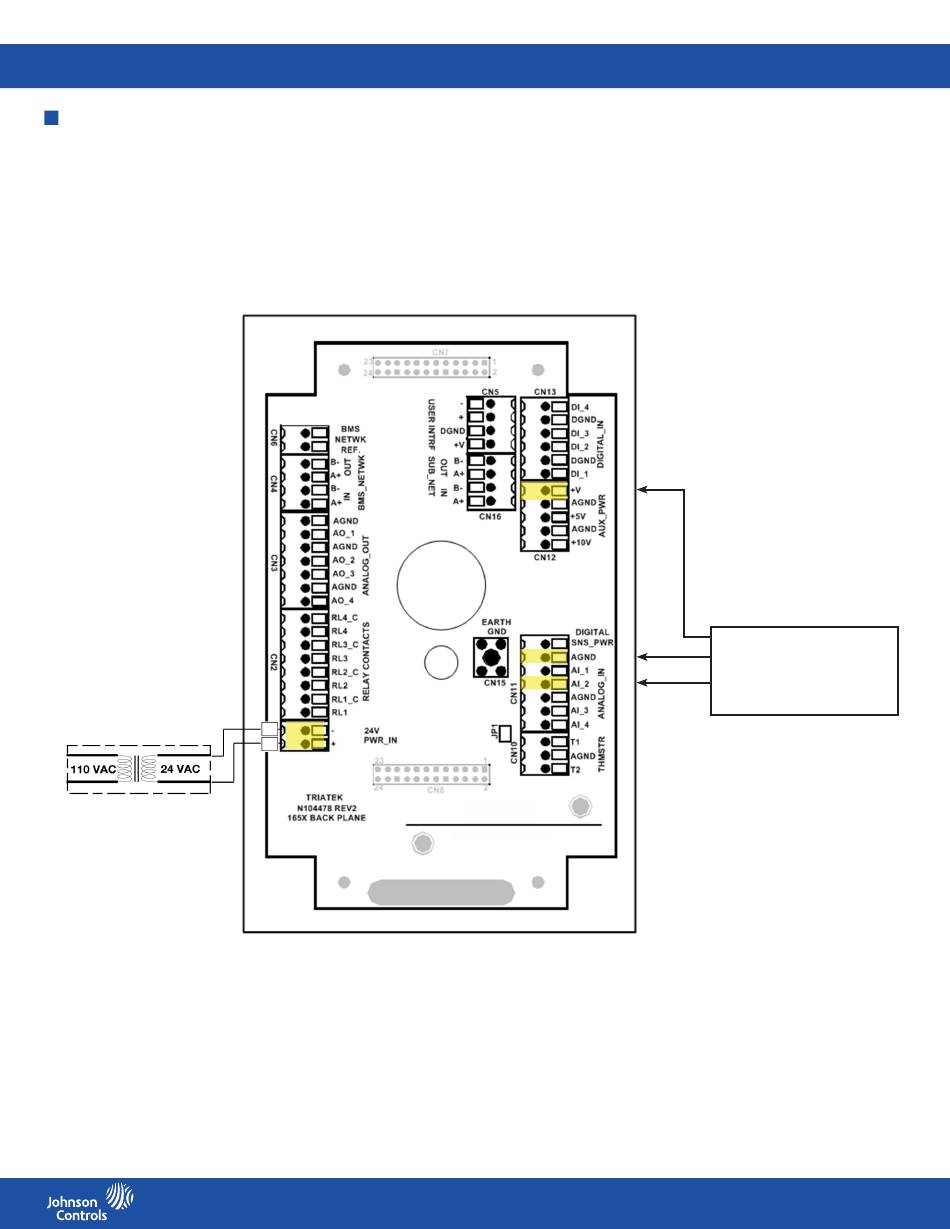

Figure 22: Precision temperature wiring diagram
Step Down
Isolation Transformer
Note: You can wire precision temperature on AI_2, AI_3 and AI_4.
28
PWR_IN (Max. 40VDC)
COM
TEMP_OUTPUT
(0-5V, 0-10V, 4-20mA)
TEMPERATURE
SENSOR
LIT-12013508
