Johnson Controls FX-PCV1930 Installation Manual

Application
The FX-PCV1930 programmable digital controllers are
designed for Variable Air Volume (VAV) applications that
communicate over BACnet
controllers feature combinations of an integral digital
pressure sensor (DPT), a damper actuator, and a 32-
bit microprocessor. The controllers' small package size
facilitates quick field installation and efficient use of space
without compromising high-tech control performance.
The FX-PCV1930 controllers include an integral real-
time clock, which enables the controllers to monitor and
control schedules, calendars, and trends, and operate for
extended periods of time as stand-alone controllers when
offline from the Facility Explorer
FX-PCV controllers connect easily to the wired and wireless
network sensors for zone and discharge air temperature
sensing.
The Facility Explorer system controllers and network
sensors communicate using the BACnet protocol. The
BACnet protocol is a standard for ANSI, ASHRAE, and the
International Standards Organization (ISO) for building
controls. FX-PCV1930 Controllers are BACnet Testing
Laboratories (BTL) listed and certified BACnet Advanced
Application Controllers (B-AACs).
North American emissions compliance
United States
This equipment has been tested and found to comply with
the limits for a Class A digital device pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when
this equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instruction manual, may cause
harmful interference to radio communications. Operation
of this equipment in a residential area may cause harmful
interference, in which case the users will be required to
correct the interference at their own expense.
Canada
This Class (A) digital apparatus meets all the requirements
of the Canadian Interference-Causing Equipment
Regulations.
Cet appareil numérique de la Classe (A) respecte toutes
les exigences du Règlement sur le matériel brouilleur du
Canada.
Installation
Observe the following guidelines when installing a FX-
PCV1930 controller:
• Transport the controller in the original container to
minimize vibration and shock damage to the controller.
FX-PCV1930 VAV Controller Installation Guide
/IP networks. These FX-PCV
®
system network. These
®
• Do not drop the controller or subject it to physical
shock.
Parts included
• One FX-PCV1930 controller with removable SA bus and
power terminal blocks
• One installation instructions sheet
• One self-drilling No. 10 x 25 mm (1 in.) screw
Materials and special tools needed
• Several 6 mm (1/4 in.) female spade terminals for
input and output wiring, and crimping tool for spade
mounted terminal blocks
• Small, straight-blade screwdriver for securing wires in
the terminal blocks
• 8 mm (5/16 in.) wrench or 10 mm (3/8 in.) 12-point
socket to tighten the square coupler bolt
• Several shims or washers to mount the FX-PCV
• Power screwdriver, 100 mm (4 in.) extension socket,
punch, drill, and 3.5 mm (9/64 in.) drill bits to mount the
FX-PCV
• Pliers to open and close the damper
• Required length of 3.97 mm (5/32 in.) ID pneumatic
tubing and barbed fittings

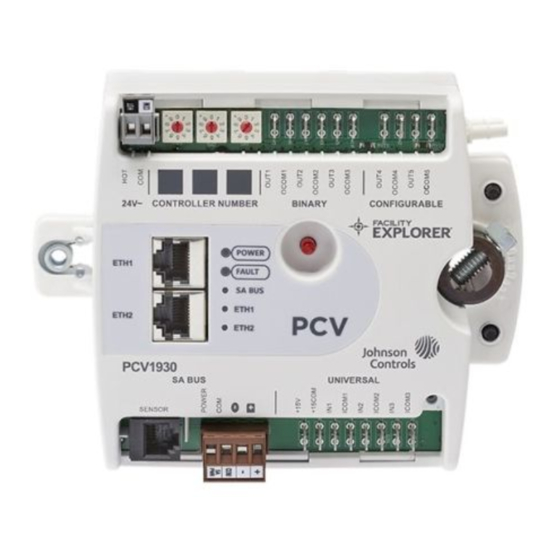

FX-PCV1930 physical features
The following figure displays the physical features of
the FX-PCV1930, and the accompanying table provides
a description of the physical features and a reference to
further information where required.
Figure 1: FX-PCA1930 Controller Wiring Terminations
and Physical Features
*241014301523C*
Part No. 24-10143-01523 Rev. C
2020-11-11
(barcode for factory use only)
FX-PCV1930-0
