5. Press tab A and lift the CPU support bracket.
6. Remove CPU card from the Main KSU.
7. Refer to following figure for the Lithium battery location on the CPU card.
Hardware Manual

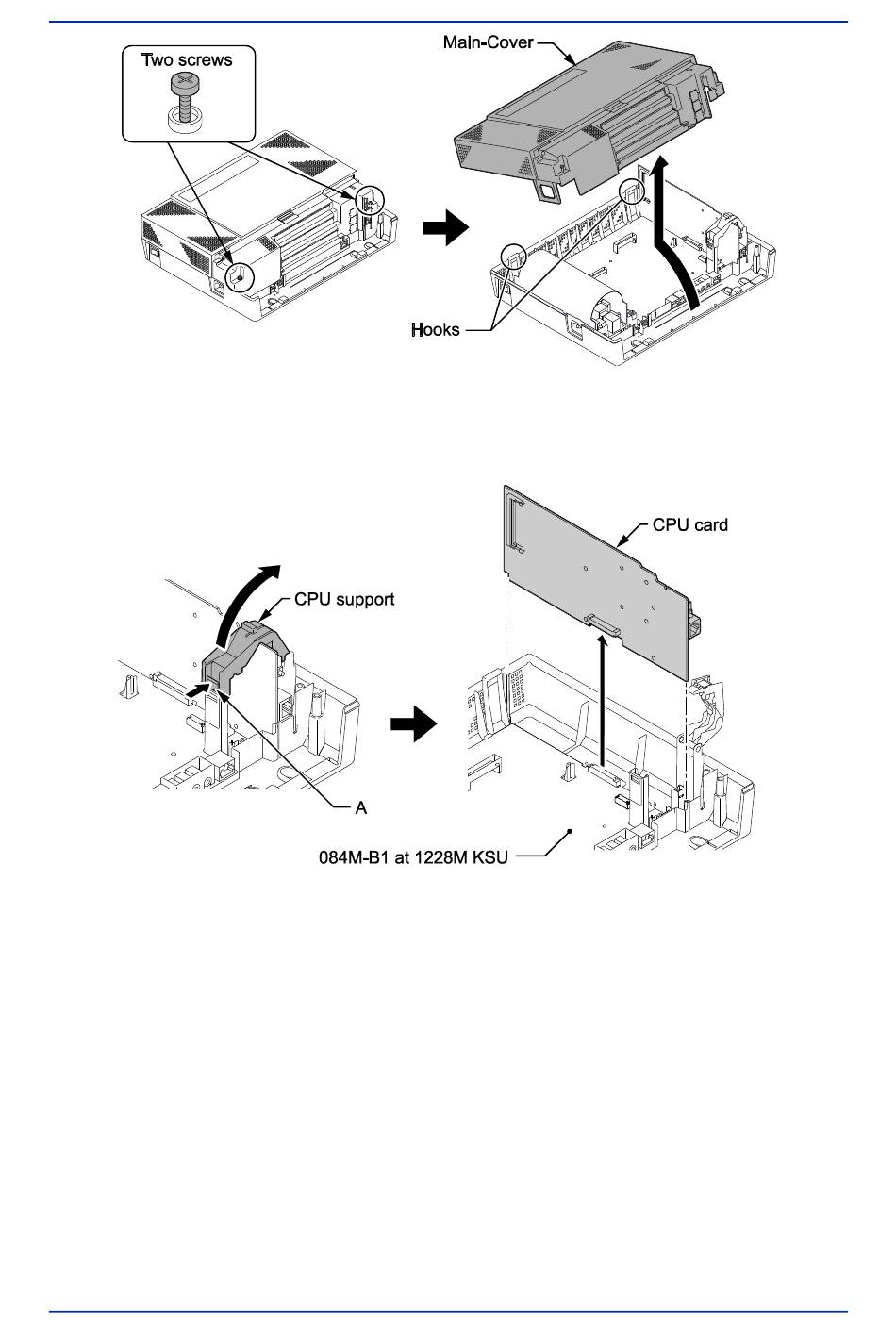

Figure 4-8 Removing the Main-Cover

Figure 4-9 Removing the CPU Card
