2.3

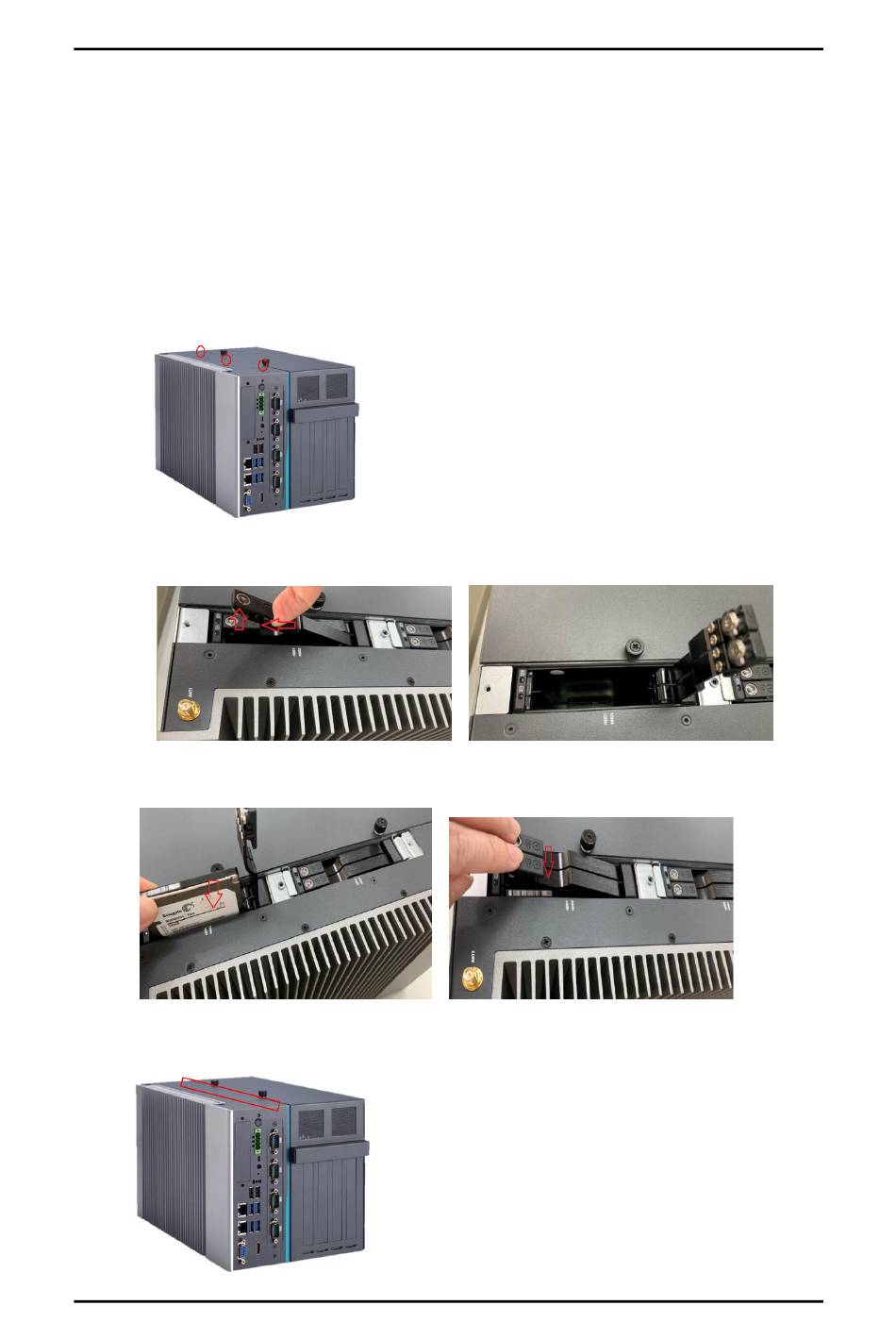

Installing the Hard Disk Drive
The IPC974-519-FL offers a convenient drive bay module for users to install HDD. The
system offers up to four 2.5" Hard Disk Drives for installation. Please follow the steps:
Step 1
Turn off the system.
Step 2
Disconnect the power connector.
Step 3
Unscrew the three screws and separate the bracket from the HDD tray.
Step 4
Open the HDD tray.
Step 5 Insert the HDD into the HDD tray.
Step 6 Screw the bracket. The installation is complete.
Hardware Installation
IPC974 Series User's Manual
37
