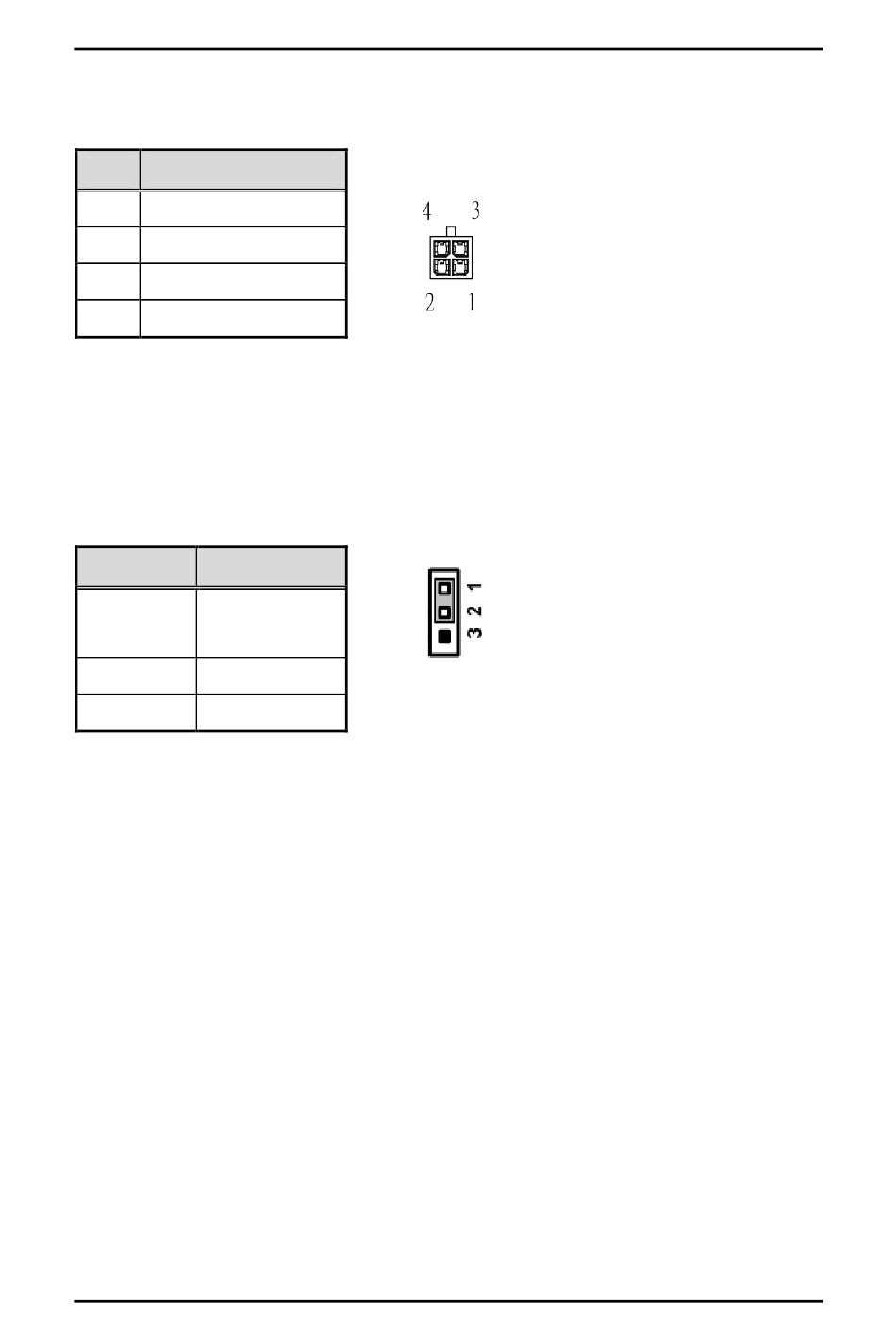

Expansion Power Input Connectors (ATX1 And ATX2)
This ATX2 connector is for slot card use. (White color)
Pins Signals
1 GND
2 GND
3 +12V
4 +12V
※
ATX1 is reserved for Axiomtek's device use only.
Temperature Sensor Source Select (JP1)
Use these jumpers (3x1-Pin P=2.54mm) to set temperature sensor source to operate form
external or onboard mode.
Onboard Sensor (Default) 1-2 close
Function Setting
On Board
1
Thermistor
2 GND
3 Reserved
※
Pin 3 is reserved for Axiomtek's device use only.
