IPC974 Series User's Manual
The Universal Serial Bus connectors are compliant with USB 3.0 (5Gb/s), and ideally for
installing USB peripherals such as scanner, camera and USB devices, etc.
Pins Signal USB Port 0
USB_VCC (+5V level standby
1
power)
2 USB_Data2-
3 USB_Data2+
4 GND
5 SSRX2-
6 SSRX2+
7 GND
8 SSTX2-
9 SSTX2+
1.7.3

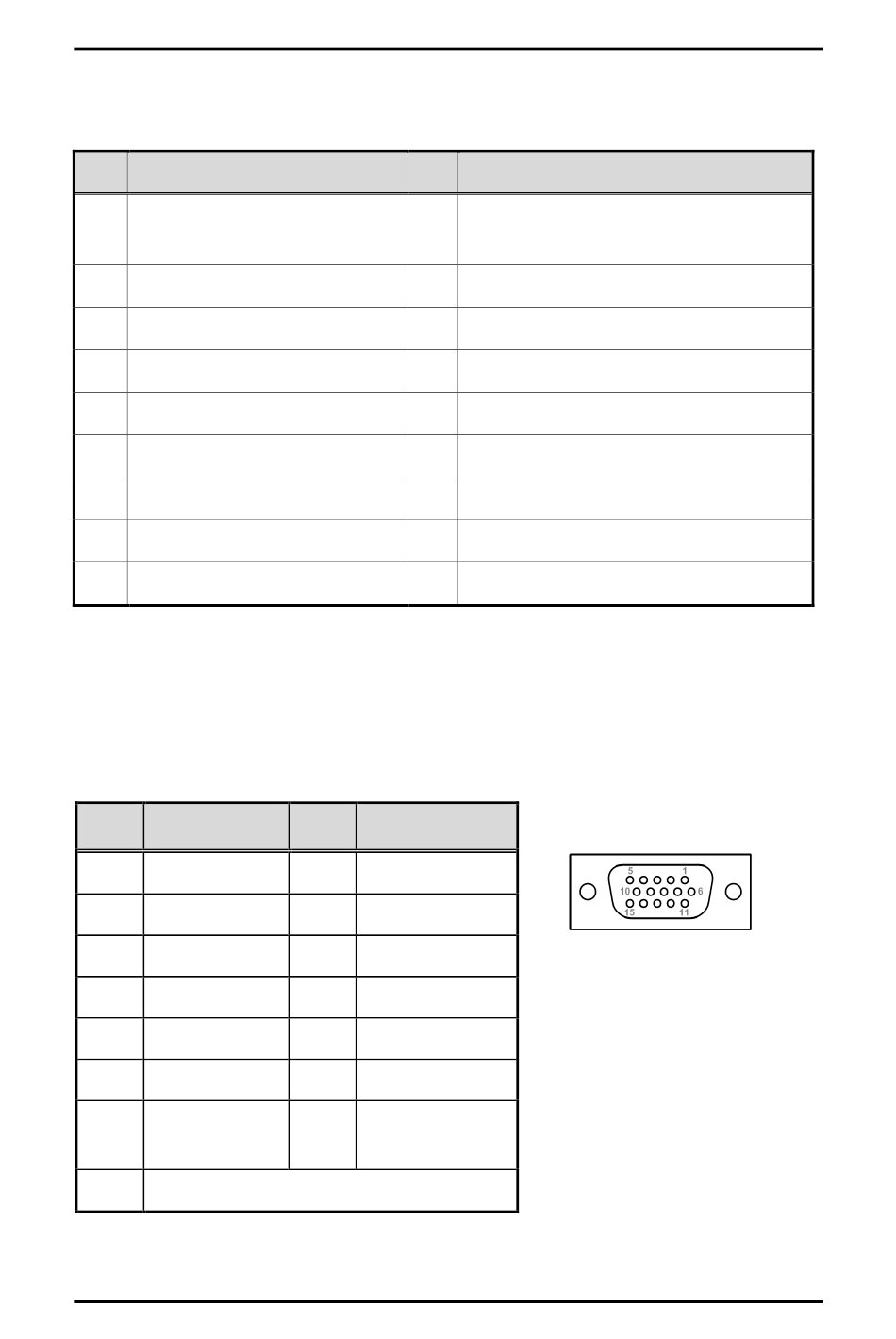

VGA Connector (CN10)

The Connector is a 15-pin D-Sub connector which is commonly used for connecting a CRT
monitor.
Pins Signals
1 Red
3 Blue
5 GND
7 GND
9 +5V
11 N.C.
Horizontal
13
Sync
15 DDC CLK
16
Pins Signal USB Port 1
USB_VCC (+5V level standby power)
10
11 USB_Data3-
12 USB_Data3+
13 GND
14 SSRX3-
15 SSRX3+
16 GND
17 SSTX3-
18 SSTX3+
Pins Signals
2 Green
4 N.C.
6 DETECT
8 GND
10 GND
12 DDC DATA
14 Vertical Sync
