IPC974 Series User's Manual
1.7.7

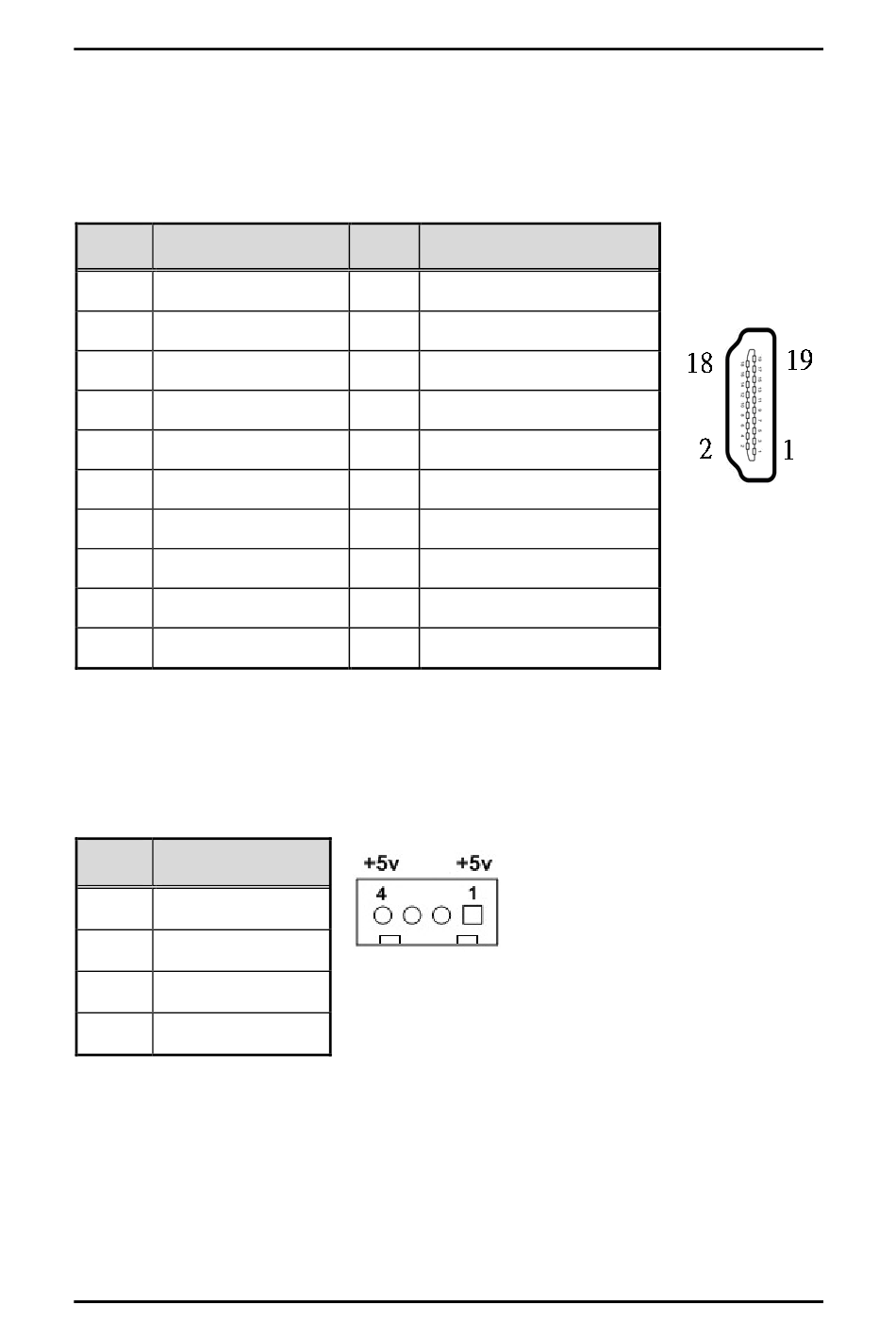

HDMI Connector (CN13)

The HDMI (High-Definition Multimedia Interface) is a compact digital interface which
is capable of transmitting high-definition video and high-resolution audio over a
single cable.
Pins Signals
1 HDMI OUT_DATA2+
2 GND
3 HDMI OUT_DATA2-
4 HDMI OUT_DATA1+
5 GND
6 HDMI OUT_DATA1-
7 HDMI OUT_DATA0+
8 GND
9 HDMI OUT_DATA0-
10 HDMI OUT Clock+
1.7.8 SATA Power connector (SCN1、SCN2)
Use SCN1、SCN2 for interfacing to SATA 2.5" HDD power supply.
Pins Signals
1 +5V level
2 GND
3 GND
4 +5V level
18
Pins Signals
11 GND
12 HDMI OUT Clock-
13 N.C.
14 N.C.
15 HDMI OUT_SCL
16 HDMI OUT_SDA
17 GND
18 +5V
19 HDMI_HTPLG
